Lilliput Q7-12G Ultra Brightness On-Camera Monitor
Product number:
SW28322
Lilliput Q7-12G
The Lilliput Q7-12G is a professional camera-top monitor for photographers and film makers, especially designed for outdoor video and film shooting. Equipped with an outstanding 2000 nit (cdm²) Ultra Bright LCD screen, this 7 inch LCD monitor has 1920×1200 Full-HD native resolution and sports a 1200:1 high contrast image reproduction. Supporting 4K HDMI and 12G-SDI signal inputs and loop outputs, the Q7-12G provides superior picture quality and maximum interoperability with your current, and future workflows.
Features
- 7 inch with 1920*1200 physical resolution
- 2000cd/m² brightness, 1200:1, 170°/170° viewing angle

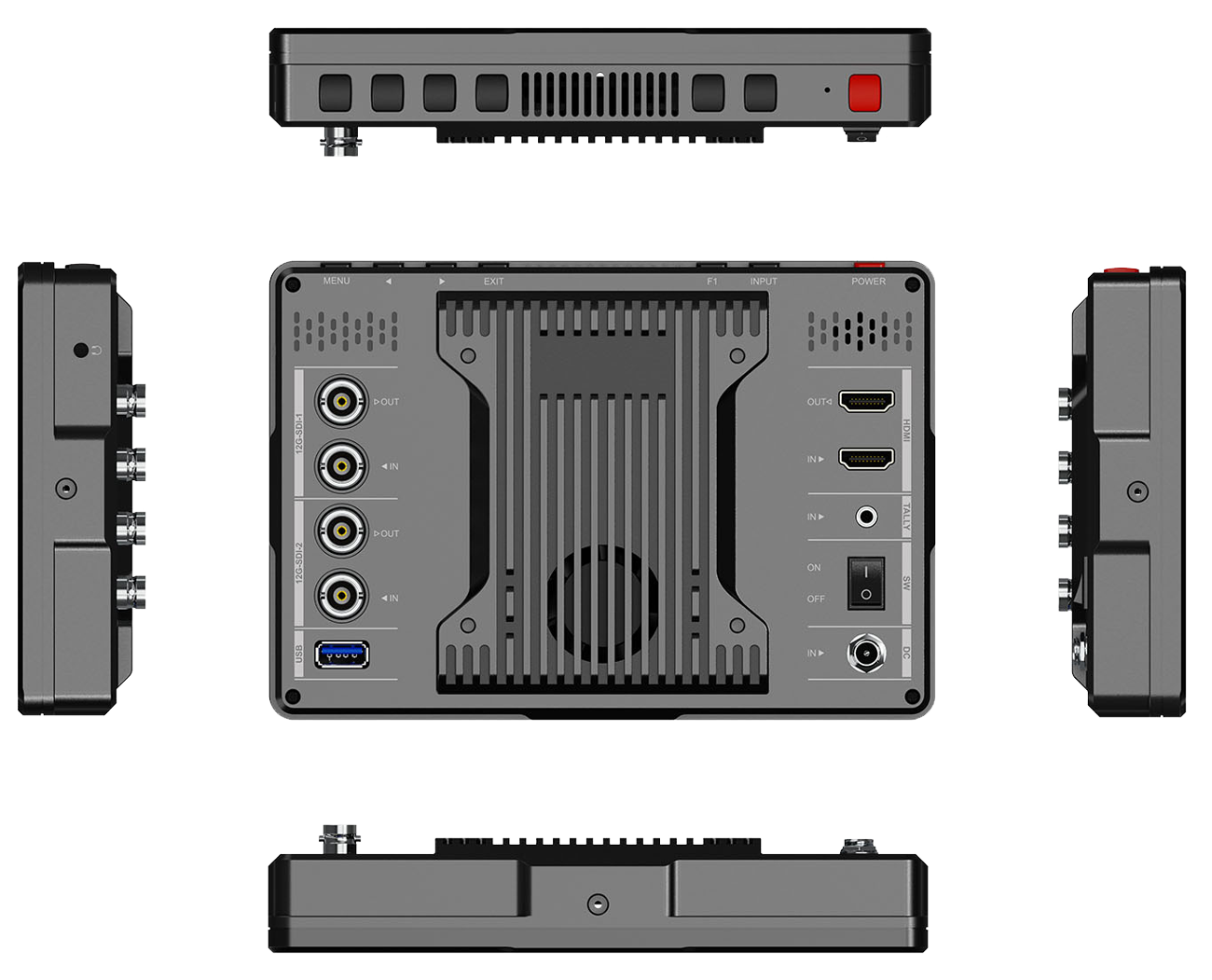

- Inputs: 2x12G-SDI, 1xHDMI 2.0, 1*Tally, 1xUSB (for upgrade), 1*DC
- Loop outputs: 2x12G-SDI, 1*HDMI 2.0
- Functions: PIP, Waveform, Vector Scope, HDR, 3D-LUT, Tally, Peaking, etc.
- Housing: Aluminum CNC housing
- Supporting VESA 75mm mount, U-shade bracket
Technical data
Display
- Aspect Ratio: 16:10
- Brightness: 2000 nit
- Contrast Ratio: 1200:1
- Look Up Table Support: 3D LUT (.cube format)
- Resolution: 1920 x 1200
- Viewing Angle: 170° / 170° H/V
- HDR: ST2084 300/1000/10000/HLG
- Screen Size: 7"
- Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User
Supported Formats
- HDMI Formats Supported: 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
- DI Formats Supported: 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50
Video Loop Output
- SDI Video Loop: 2×12G-SDI
Formats
- HDMI Input Format Support: 1×HDMI 2.0
- SDI Input Format Support: 2×12G-SDI
Outputs
- HDMI Video Outputs: 1×HDMI 2.0
- Tally: 1
