MAGEWELL Ultra Encode AIO

Magewell Ultra Encode AIO

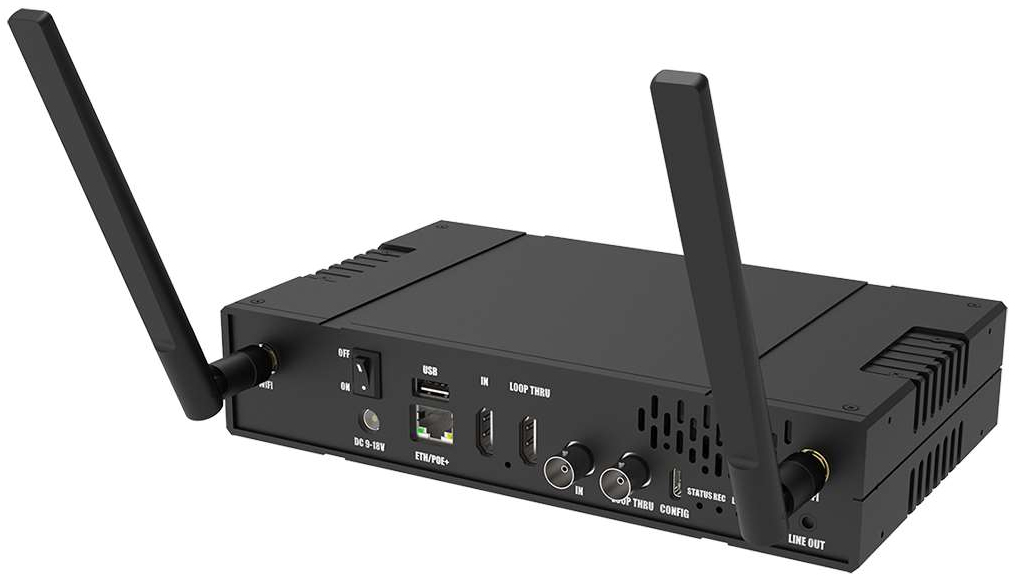

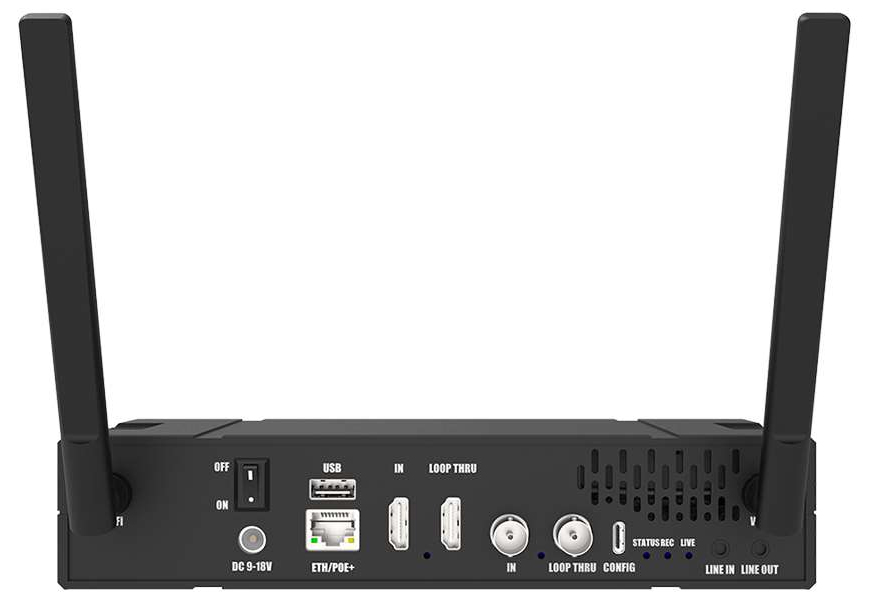

The Magewell Ultra Encode AIO is an Advanced encoder for Streaming and Recording. This encoder is able to encode and stream one live HDMI 4K 30fps input or Full HD 3G-SDI 60fps input. The picture-in-picture and other overlay options allow users to merge both HDMI and SDI inputs for a combined output. This powerful encoder offers sumltaneous multi-protocol streaming up to eight channels at a bitrate of 32Mbps per stream. Users can choose from a wide variety of formats such as, H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3. Delivery protocols include RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology.

Input Features

• HDMI max input signal: 4096x2160 60fps 4:2:0; 4096x2160 30fps 4:4:4/4:2:2
• SDI max input signal: 2048x1080 60fps 4:2:2
• Input 16-Channel SDI embedded audio
• Input 8-Channel, 24-bit HDMI embedded audio
• Input Audio from 3.5mm LINE IN

Streaming Features

• Natively support streaming to Facebook, Twitch and YouTube
• Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/NDI®|HX3/HLS (push)/TS over UDP/TS over RTP/TVU ISSP
• Allow simultaneous 6 sessions over multiple streaming protocols
• Support for streaming schedule for each destination

Encoding Features

• Dual stream encoding profiles: main stream and sub stream (Max bitrate: 32Mbps)
• Support for H.264/HEVC video encoding
• Encoding 8-channel AAC
• Variable bitrate control (VBR) - set different bit rates to different streams

Recording Features

• Record to an SD card or external USB storage, MP4 or MOV format supported
• Support for loop recording when recording to SD card
• Share recorded files with NFS/CIFS/SMB
• Support for recording schedule

Others

• LCD monitor for system status and input signal
• Internet connectivity via wired Ethernet and wireless network
• Remote control via Web GUI and Magewell Cloud
• Provide HTTP APIs
