MAGEWELL USB Capture HDMI 4K Plus

MAGEWELL USB Capture HDMI 4K Plus

The Magewell USB Capture HDMI 4K Plus is a powerful 4K HDMI to USB capture dongle and supports one HDMI input up to 4096×2160. This dongle allows users to bring one 4K HDMI signal to any computer or laptop through USB 3.0 and capture with resolution up to signals and captures video up to 4096x2160 120fps.

The Magewell USB Capture HDMI 4K Plus offers HDMI signal loop-through and supports discrete analog input and output for capture and monitoring. They are ideal for use with software for streaming, web conferencing, lecture capture, live production, medical imaging and more. The firm housing of this dongle makes it suitable for any setting and avoids the risk of overheating. The Magewell USB Capture Utility enables users to set their own desired capture-related parameters such as, capture resolution, color space, frame rate (and much more).

  • One-channel 4K capture device
  • Capture HDMI + embedded audio
  • Low-Latency, High Frame Rate video Capture:

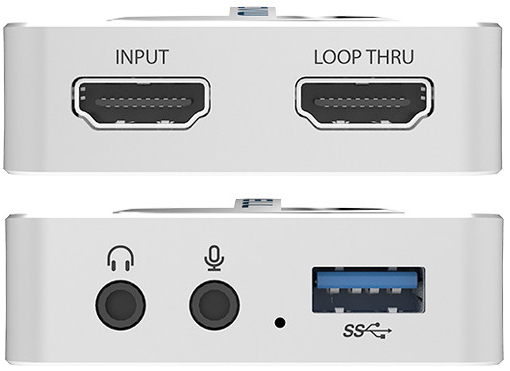

  • Loop-through HDMI signal
  • Audio input via mic
  • Extract HDMI embedded audio output via headphones
  • Support HDMI 2.0, 4Kp60 4:4:4 input. Capture from the newest game consoles such as PS5, PS4 Pro, XBOX series X and XBOX One S.

Interface

Input Interface

  • HDMI x1 Support input resolution up to 4096×2160 pixels

Loop-through Interface

  • HDMI x1
  • Support loop-through resolution up to 4096×2160 pixels

Audio Input Interface

  • 3.5 mm audio jack for microphone

Audio Output Interface

  • 3.5 mm audio jack for headphones
  • Host Interface
  • USB 3.0

Video Engine

  • 8-bit video processing
  • Deinterlace
  • Cropping
  • Color Adjustment
  • Color Space Conversion
  • Up/down Conversion
  • Aspect Ratio Conversion
  • Mirror and Flip

Signal Detection & Support

  • Auto Detection of Input Signal Format
  • 3D HDM

Software Environment

  • OS: Windows, Linux, Mac, Chrome OS
  • Driver and Firmware: Driver Free, Updatable Firmware
  • Included Software: USB Capture Utility, Capture Express
  • Compatible Software: 50+
