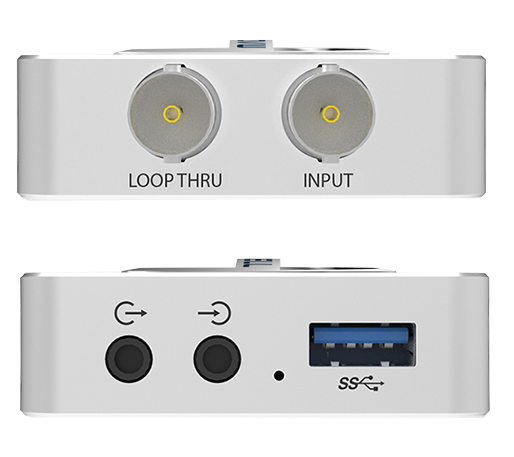

MAGEWELL USB Capture SDI 4K Plus

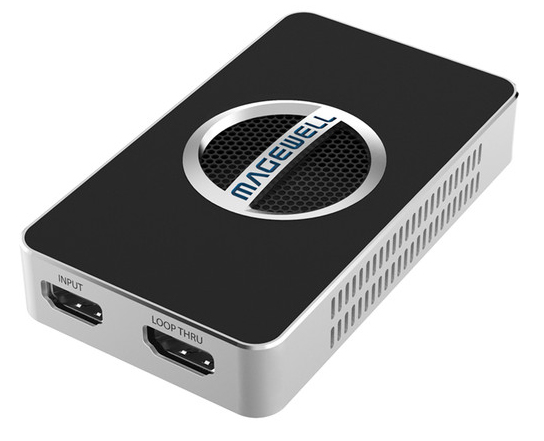

MAGEWELL USB Capture HDMI 4K Plus The Magewell USB Capture HDMI 4K Plus is a powerful 4K HDMI to USB capture dongle and supports one HDMI input up to 4096×2160. This dongle allows users to bring one 4K HDMI signal to any computer or laptop through USB 3.0 and capture with resolution up to signals and captures video up to 4096x2160 120fps.The Magewell USB Capture HDMI 4K Plus offers HDMI signal loop-through and supports discrete analog input and output for capture and monitoring. They are ideal for use with software for streaming, web conferencing, lecture capture, live production, medical imaging and more. The firm housing of this dongle makes it suitable for any setting and avoids the risk of overheating. The Magewell USB Capture Utility enables users to set their own desired capture-related parameters such as, capture resolution, color space, frame rate (and much more).One-channel 4K capture deviceCapture HDMI + embedded audioLow-Latency, High Frame Rate video Capture:Loop-through HDMI signalAudio input via micExtract HDMI embedded audio output via headphonesSupport HDMI 2.0, 4Kp60 4:4:4 input. Capture from the newest game consoles such as PS5, PS4 Pro, XBOX series X and XBOX One S. InterfaceInput InterfaceHDMI x1 Support input resolution up to 4096×2160 pixelsLoop-through InterfaceHDMI x1Support loop-through resolution up to 4096×2160 pixelsAudio Input Interface3.5 mm audio jack for microphoneAudio Output Interface3.5 mm audio jack for headphonesHost InterfaceUSB 3.0 Video Engine8-bit video processingDeinterlaceCroppingColor AdjustmentColor Space ConversionUp/down ConversionAspect Ratio ConversionMirror and Flip Signal Detection & SupportAuto Detection of Input Signal Format3D HDM Software EnvironmentOS: Windows, Linux, Mac, Chrome OSDriver and Firmware: Driver Free, Updatable FirmwareIncluded Software: USB Capture Utility, Capture ExpressCompatible Software: 50+

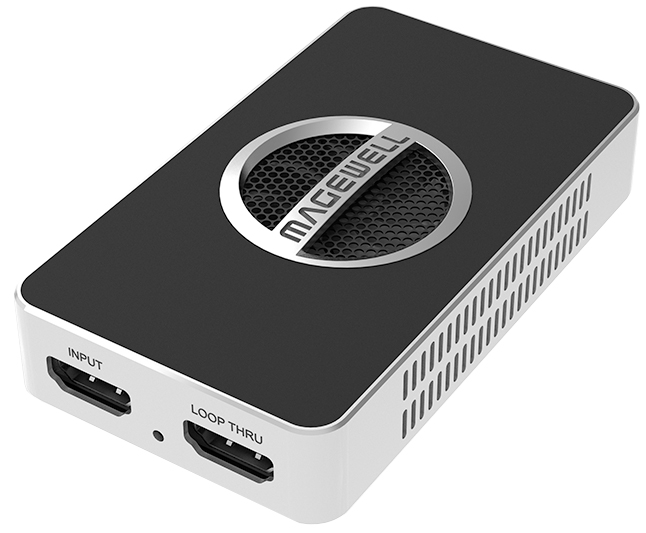

MAGEWELL USB Capture HDMI 4K ProMagewell has expanded the renowned USB Capture Family with the unveiling of a new model that captures video sources up to 4K resolution at 60 frames per second – the USB Capture HDMI 4K Pro.When used with a host computer that has a 20Gbps USB 3.2 Gen 2x2 interface, the USB Capture HDMI 4K Pro can capture HDMI inputs up to 4096x2160 (including 3840x2160 Ultra HD) at 60fps with 4:4:4 chroma fidelity. The device is also compatible with lesser-performance USB 3.2, USB 3.1 and USB 3.0 interfaces for capturing lower video signals (such as 1080p60 or 4K at 30fps 4:2:0 over 5Gbps USB, or 4K at 60fps 4:2:0 with 10Gbps USB), with the capture capabilities dependent on the host USB connectivity and operating system. InterfaceInput Interface & Loop-through InterfaceOne HDMI input + embedded audioOne HDMI loop-throughSupport input & loop-through resolution up to 4096x2160 60fps 4:4:4Audio Input/Output Interface3.5mm audio jack for microphone/ headphonesHost InterfaceUSB 3.2 Gen 2x2 up to 20G throughputOSWindows, Linux, Mac, ChromeCapture formatSupport capture resolutions up to 4096x2160Support capture frame rates up to 240fpsCapture 2-channel embedded audio or analog audio via 3.5mm microphone interfaceActual capture format will vary based on the host system USB interface and operating systemIncluded SoftwareUSB Capture Utility, Capture Express, etc.OthersAuto detection of input signal formatIntegrate the functions of a USB audio card. Playback audio via 3.5mm headphones interfaceWindows, Linux and Mac SDKContinuously work for 24hx7LED status indicator3-year warrantyForm factor: 98.1 mm x 56.8 mm x 18 mm
