MID49 Breakout Boxes and Side Plate Bundle For Canon C400

€540.00*

gross: €642.60

Free shipping

Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.

Product number: SW28253

Manufacturer: MID49

EAN: 641837956513

Manufacturer product number: M49-BOB-SPB-C4

Delivery time: 7-14 days

MID49 Breakout Boxes and Side Plate Bundle For Canon C400

SKU: M49-BOB-SPB-C4

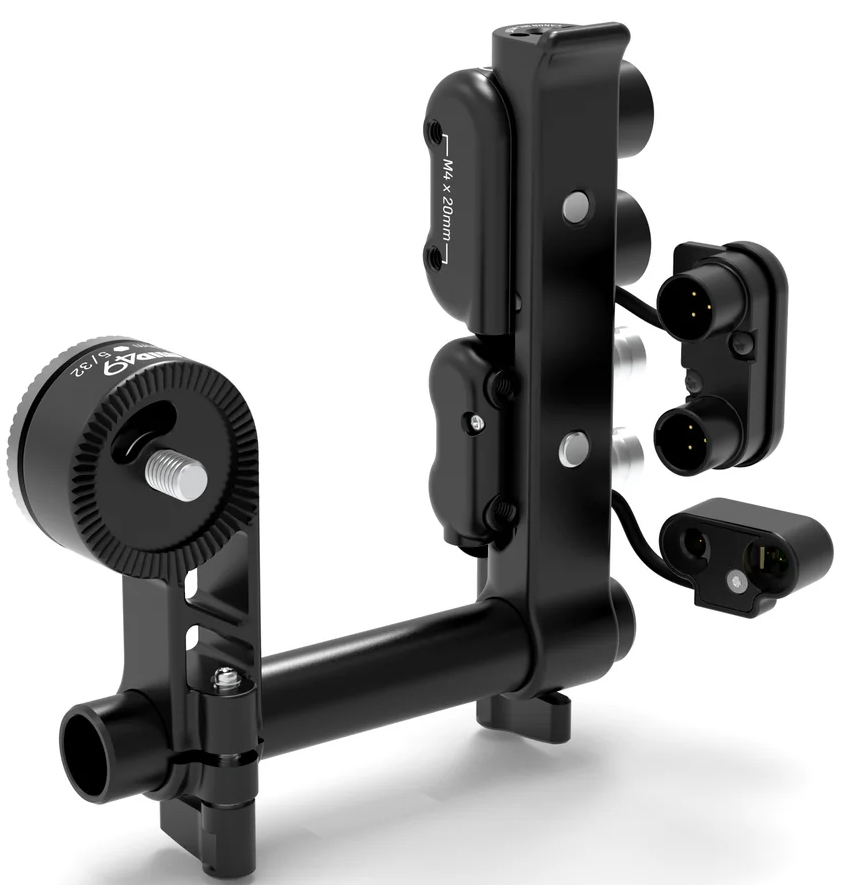

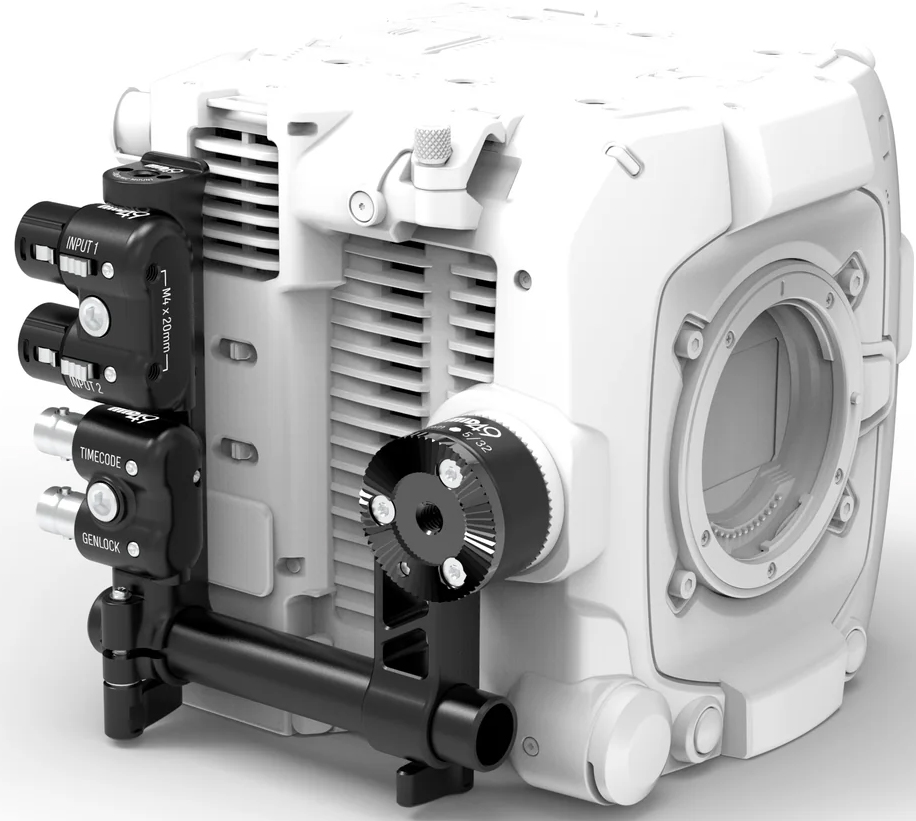

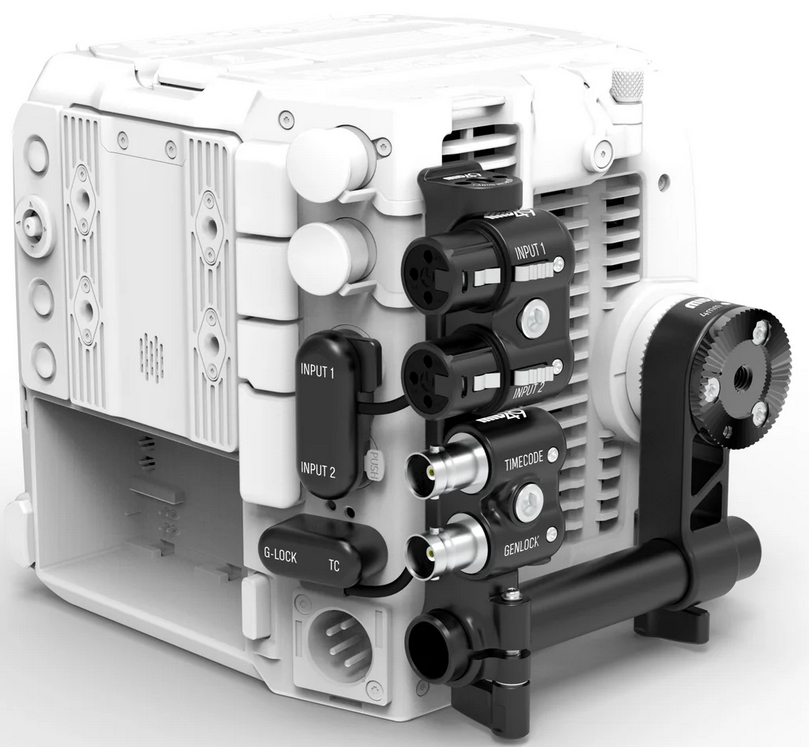

Breakout Boxes and Side Plate Bundle for Canon C400 includes

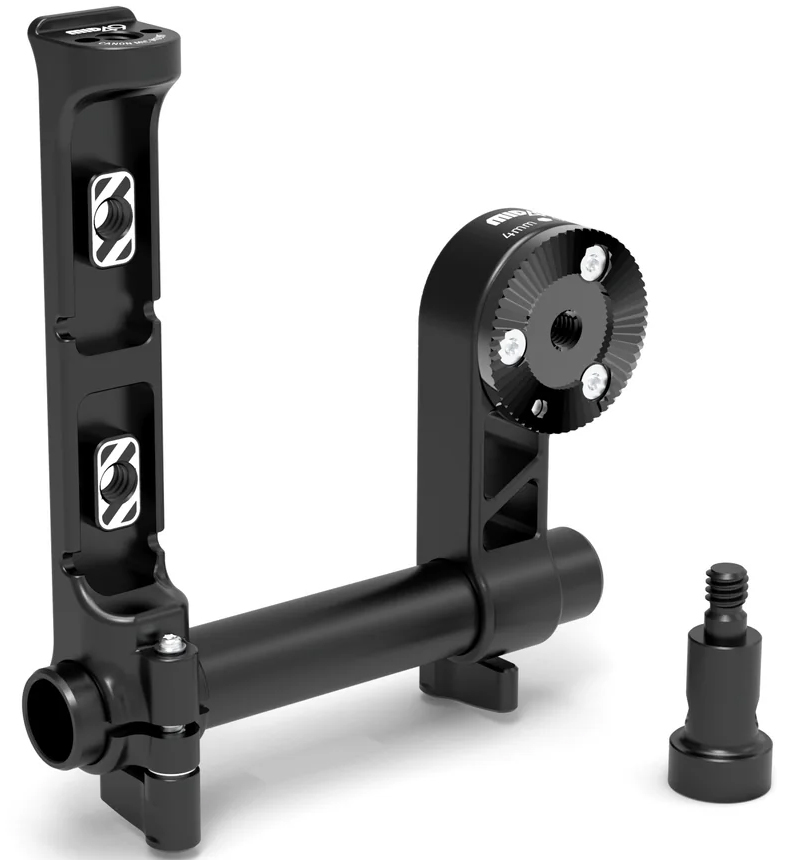

Breakout Side Plate for Canon C400, which attaches to the ARRI rosette on the side of the camera and provides a 15mm rod clamp for attaching lens motors, a female ARRI rosette for attaching Canon's handgrip, and a breakout box mounting area with 1/4-20's and recessed cable loops for attaching the included breakout boxes AB-10 and EB-10.

Audio Breakout AB-10 (Canon C400) is a passive adapter that converts the camera's two mini XLRs using a custom, low-profile connection to two standard, full-size XLRs.

DIN Timecode Genlock Breakout EB-10 (Canon C400) converts the DIN 1.0/2.3 connectors using a custom, low-profile connection to standard BNCs for Timecode and Genlock.

Also included is a 1/4-20 knurled knob for attaching Canon's microphone shock mount to the top of the breakout panel.

Details of the manufacturer

MID49
1205 Castle Street, Suite 100
Dallas, Texas 75208, United States

(214) 444-9262

Info@mid49.com

Details of the person responsible for putting the product on the European market

NEFAL service & consulting e. K.
Am Heerdter Hof 24
40549 Düsseldorf, Germany

+49 (0) 211 930 730-33

info@nefal.tv

Warnings and safety information

Power Distribution SAFETY

Mechanical SAFETY

Breakout Box SAFETY
