MID49 Breakout Side Plate for RED KOMODO / KOMODO-X

€139.00*

gross: €165.41

Prices excl. VAT plus shipping costs

Available, delivery time: 1 day

Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.

Product number: SW27530

Manufacturer: MID49

EAN: 634052441568

Manufacturer product number: M49-BOB-SPL-KX

Delivery time: 1 day

MID49 Breakout Side Plate

SKU: M49-BOB-SPL-KX

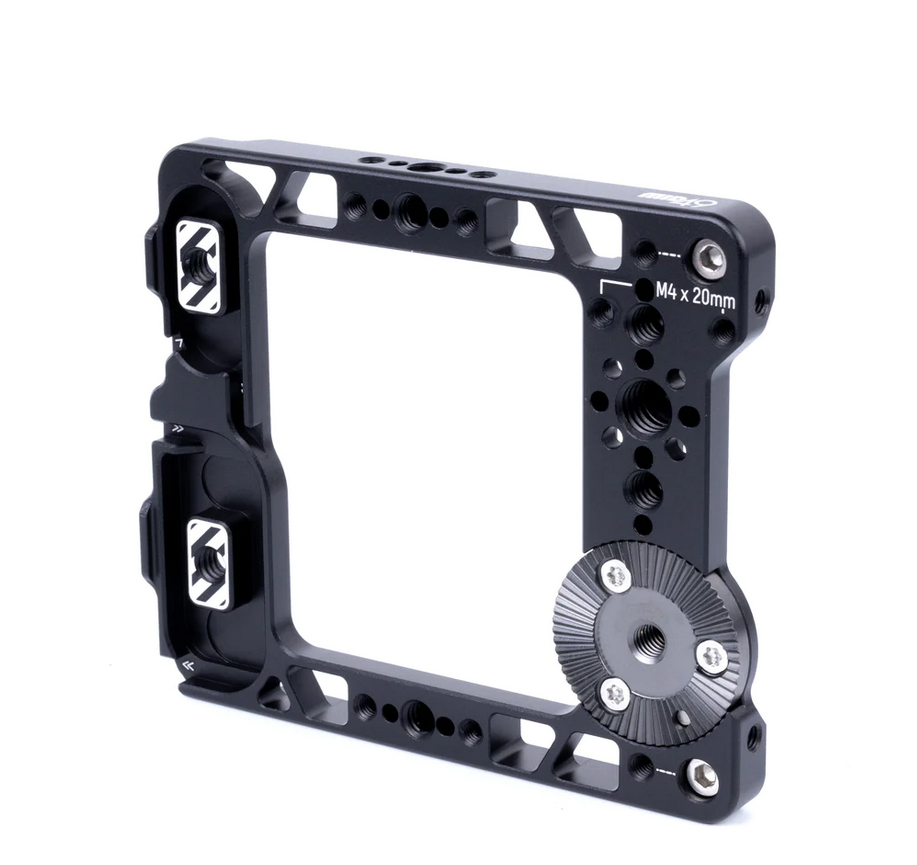

Breakout Side Plate for RED KOMODO and RED KOMODO-X attaches to the side of the RED Komodo and Komodo-X and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Two offset M4 holes matching RED's spacing allow certain 3rd party products to be attached like GDU Atlas Side Handle (Komodo, Right)

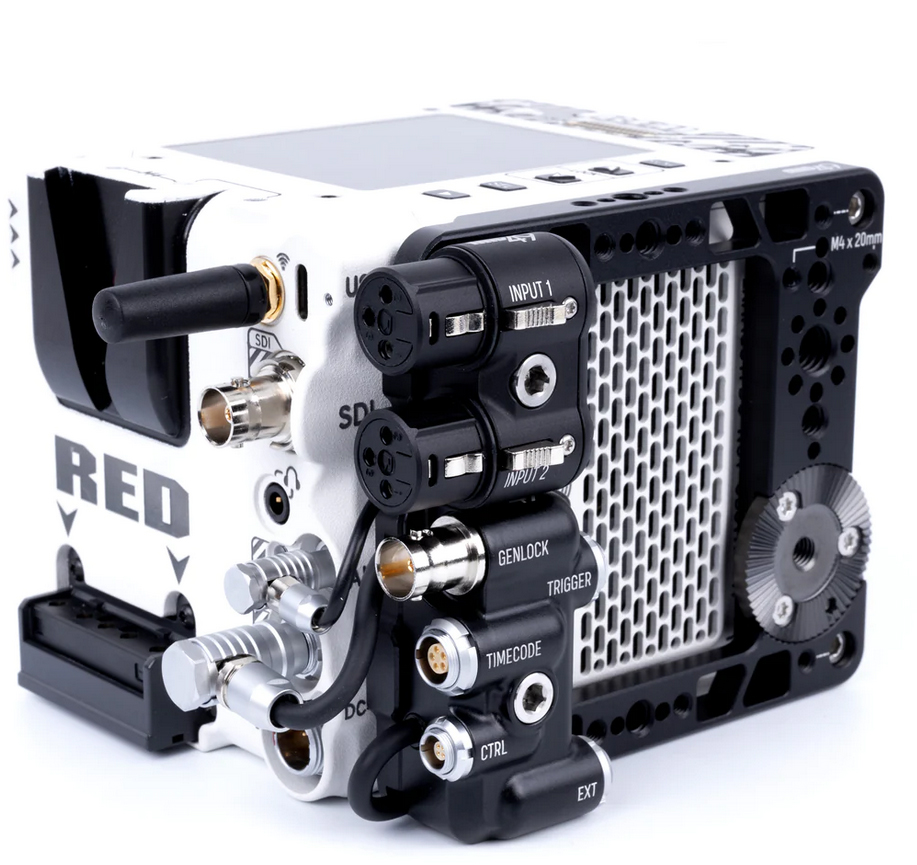

When used on RED Komodo-X, rear 1/4-20's provide ideal mounting locations for Audio Breakout AB-1 (RED Komodo-X) and EXT Breakout EB-1 (RED Komodo, Komodo-X).

When used on the original RED Komodo, combine with Audio Breakout AB-3 (RED Komodo) and EXT Breakout EB-1 (RED Komodo, Komodo-X).

The Side Plate is compatible with RED's PL Mount support, as seen in this installation guide.

Recessed cable loops in the side plate allow for clean cable management.

Details of the manufacturer

MID49
1205 Castle Street, Suite 100
Dallas, Texas 75208, United States

(214) 444-9262

Info@mid49.com

Details of the person responsible for putting the product on the European market

NEFAL service & consulting e. K.
Am Heerdter Hof 24
40549 Düsseldorf, Germany

+49 (0) 211 930 730-33

info@nefal.tv

Warnings and safety information

Power Distribution SAFETY

Mechanical SAFETY

Breakout Box SAFETY

Related links of the manufacturer

Further products by MID49

Accessory Items

MID49 EXT Breakout EB-1 (RED Komodo, Komodo-X, V-Raptor)

MID49 EXT Breakout EB-1 SKU: M49-BOB-EB1 EXT Breakout EB-1 (RED Komodo, Komodo-X, V-Raptor) converts the camera's 9-pin 0B LEMO EXT port to industry standard connectors listed below. Genlock: 75-ohm BNCTimecode: 5-pin 0BCTRL: 4-pin 00Trigger: 3-pin FischerEXT Pass-Through: 9-pin 0B Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates like Breakout Side Plate Only (RED Komodo-X)(sold separately). Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Mounting Bracket (ARRI 3/8-16, Rear Mount) (sold separately), which allows the EB-1 to attach using a 3/8-16 screw with ARRI locating pins. 8 inch (20cm) cable length with right angle LEMO-compatible connector. Weight: 70gDimensions (WxLxH): 54 x 271 x 19mm

€350.00*

gross: €416.50

MID49 Audio Breakout AB-3 (RED Komodo, DSMC2, DSLR, Stereo 3.5mm TRS)

MID49 Audio Breakout AB-3 SKU: M49-BOB-AB3 Audio Breakout AB-3 (RED Komodo, DSMC2, DSLR, Stereo 3.5mm TRS) is a passive adapter that converts the camera's 3.5mm plug to two standard, full-size XLRs. Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates. Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-3 to attach using a 3/8-16 screw with ARRI locating pins. 12 inch (30.5cm) cable length with right angle 3.5mm TRS connector. Product Weight: 42gProduct Dimensions (WxLxH): 35 x 277 x 28mm

€165.00*

gross: €196.35

MID49 Audio Breakout AB-1 (RED Komodo-X, V-Raptor, ARRI Alexa Mini, Z CAM E-2)

MID49 Audio Breakout AB-1 SKU: M49-BOB-AB1 Audio Breakout AB-1 (RED Komodo-X, V-Raptor, ARRI Alexa Mini, Z CAM E-2) is a passive adapter that converts the camera's 5-pin 00 LEMO to two standard, full-size XLRs. Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates like RED Komodo Breakout Side Plate(sold separately). Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows the AB-1 to attach using a 3/8-16 screw with ARRI locating pins. Also compatible with Z CAM E2 (all models) but may conflict with CTRL 1 port or COM port due to connector angles. 20cm cable length with right angle LEMO-compatible connector. Product Weight: 42gProduktabmessungen (B x L x H): 35 x 277 x 28mm

€165.00*

gross: €196.35
