MID49 Mid Kit for Blackmagic PYXIS
SKU: M49-KTM-BMD-PY

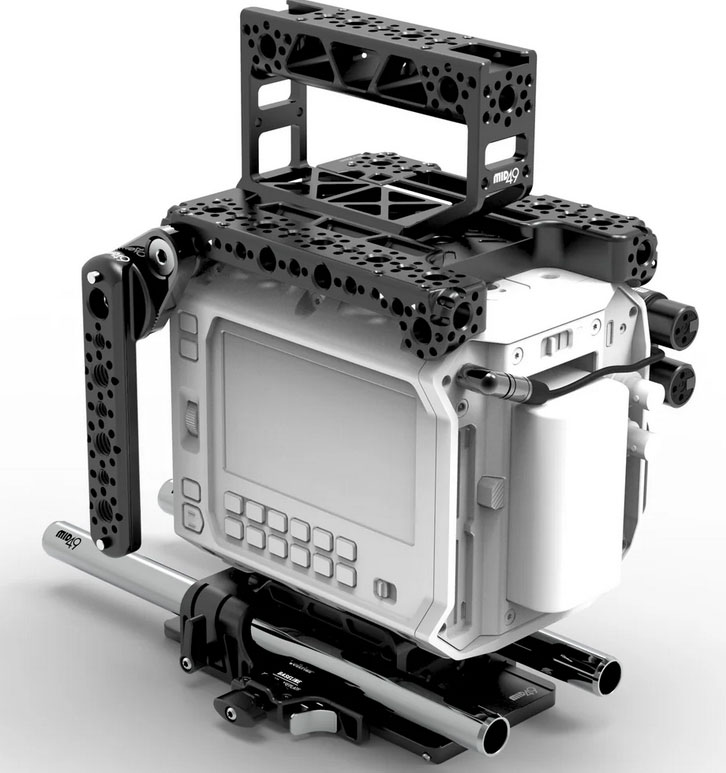

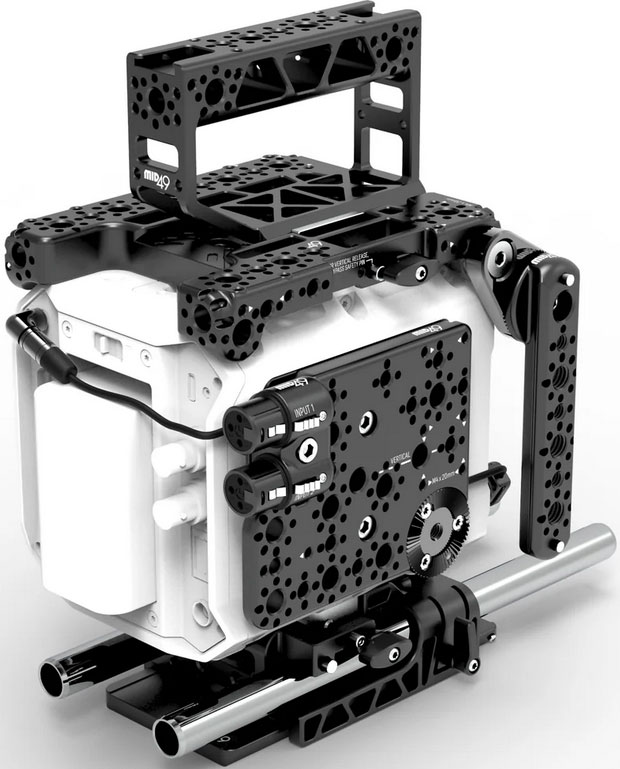

Mid Kit for Blackmagic PYXIS is an accessory kit that includes:
Top Plate (Blackmagic PYXIS)
- Provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, M4x20mm ARRI standard threaded holes, and ventilation holes for the PYXIS fan
2x Cage NATO Side Arm (ARRI 3/8-16)
- Attaches to the sides of the Top Plate and provides an ARRI Rosette adjustable NATO accessory rail with safety pins on each end
ARCA Top Handle
- Sliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts
Baseline 15mm LW (Blackmagic PYXIS)
- Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom
2x 15mm Rod (9 inch)
- Stainless steel iris rods
Side Plate (Blackmagic PYXIS)
- A mounting plate that attaches to the side of the camera and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. =A marked set of 3/8-16 and 1/4-20 holes are on the sensor axis and the plate is the correct thickness to mount the camera vertically on Baseline 15mm LW (Blackmagic PYXIS) and use 15mm rods at the correct lens height
Audio Breakout AB-9 (Blackmagic PYXIS)
A passive adapter that converts the camera's front mini XLR and rear 3.5mm TRS plug into two standard, full-size XLRs.
- Input 1 - balanced audio with phantom power via camera menu
- Input 2 - unbalanced audio, no phantom power available
9.5 inch (24 cm) cable length with custom low profile mini XLR connector and Neutrik 3.5mm TRS.
