MID49 Mid Kit for Canon C80
Product number:
SW28301

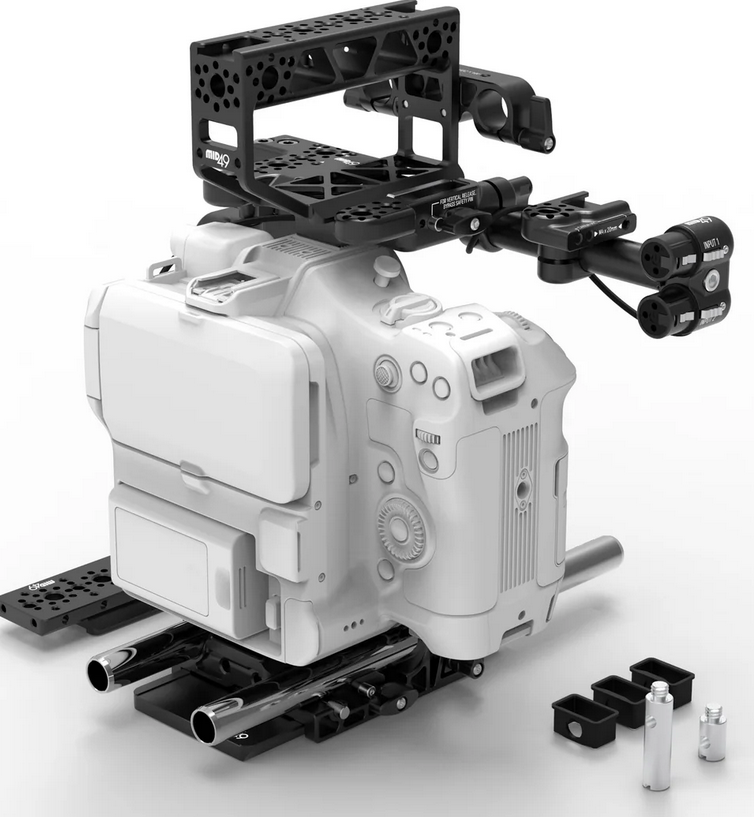

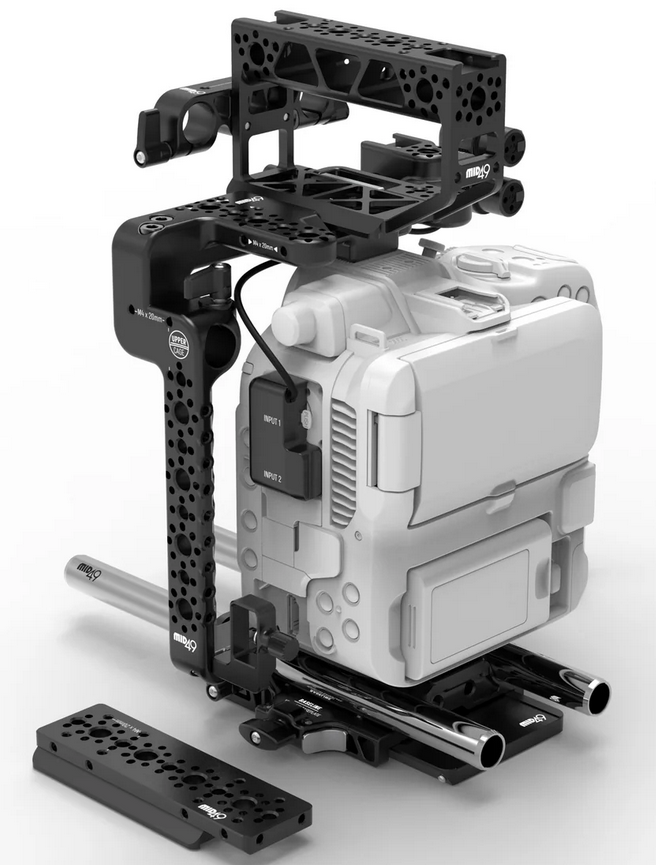

MID49 Mid Kit for Canon C80
SKU: M49-KTM-CAN-C80
Mid Kit for Canon C80 is an accessory kit that includes:
Upper Cage for Canon C80
- Form fitting cage with 1/4-20, 3/8-16, and M4x20mm threaded holes in several places along with a shoe mount and 15mm rod clamps. ARCA Swiss dovetail slot on top accepts included ARCA Top Handle and Top Plate. The included 15mm accessory rod provide additional mounting for included AB-4 XLR adapter. Lower ARCA Swiss dovetail attaches to included baseplate and lens support adapter attaches to 3rd party lens adapters like Metabones, etc.
Baseline 15mm LW (Core)
- Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
Baseline ARRI Dovetail
- Baseline ARRI Dovetail is the lower ARRI mounting plate that interfaces with the Baseline Core.
ARCA Top Handle
- Sliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts.
ARCA Top Plate (114mm)
- Sliding top plate that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes. 114mm dovetail length.
Rod Bracket (15mm LW)
- Attaches to the Top Handle or Top Plate to provide 15mm LW rod support.
Audio Breakout AB-4 (Canon C70/C80)
- Adapts the camera's two mini XLRs to standard, full-size XLRs
2x 15mm 9 inch stainless steel rods are included in the Mid Kit.
