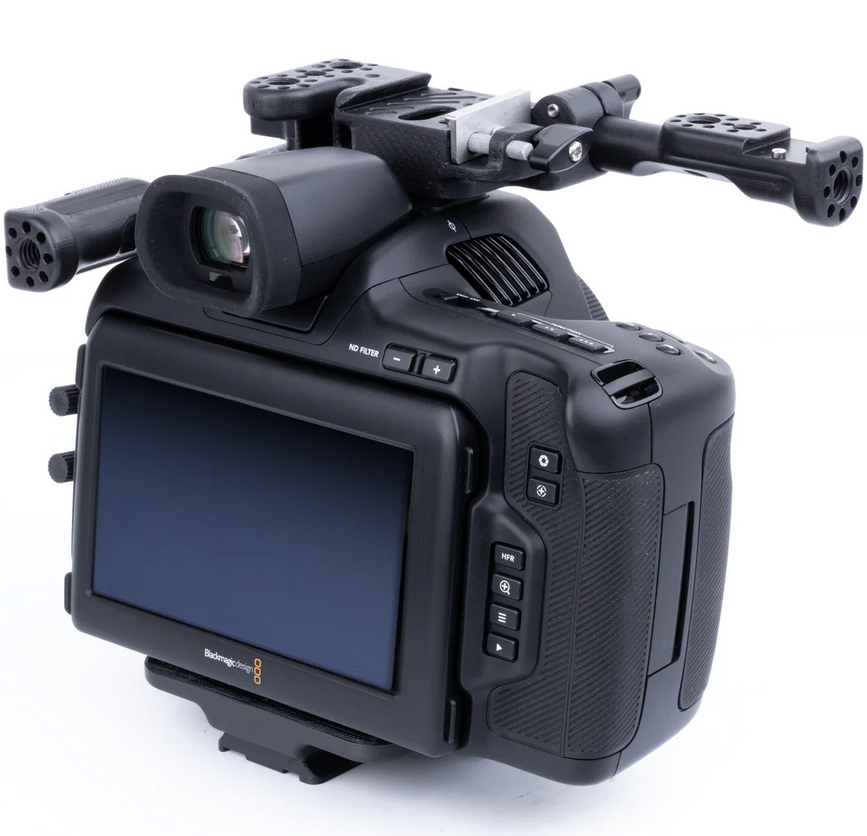

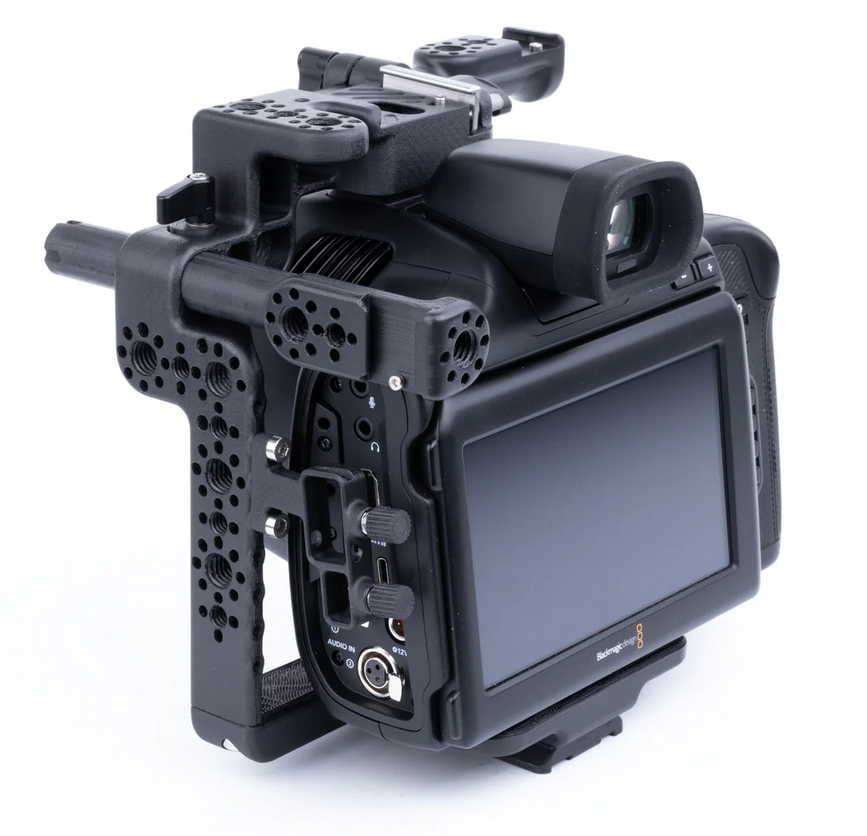

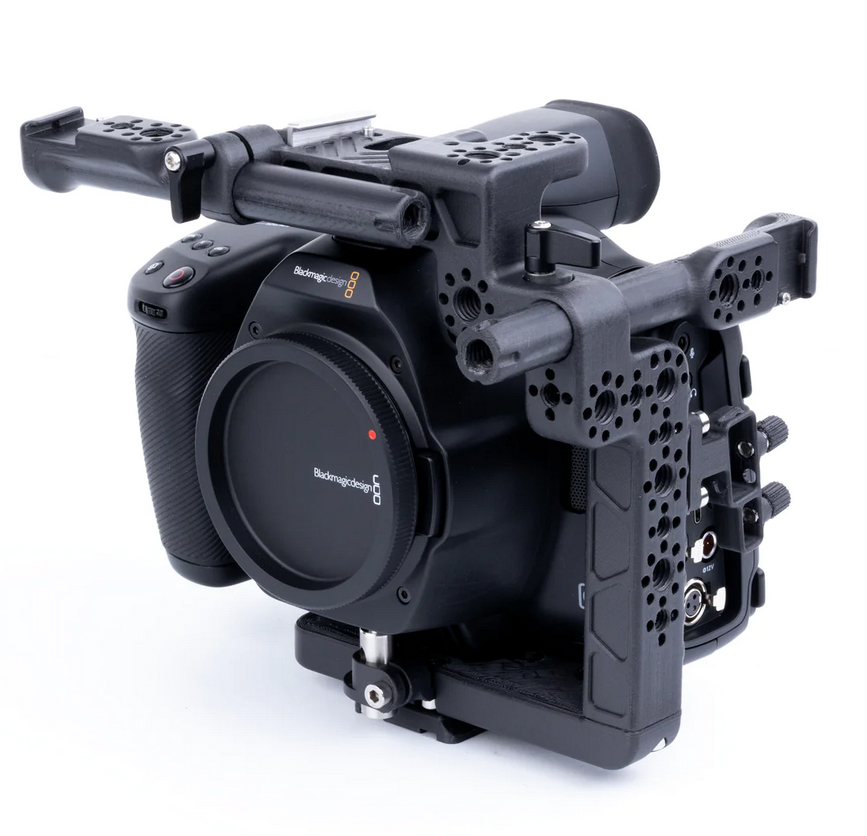

MID49 Upper Cage for Blackmagic Pocket 6K (Full Frame, Pro, G2)

MID49 Audio Breakout AB-6 SKU: M49-BOB-AB6 Audio Breakout AB-6 (Blackmagic Pocket 6K) is a passive adapter that converts the camera's two mini XLRs to two standard, full-size XLRs. Attaches by a captive 1/4-20 screw and rubber pad to the camera body or 3rd party cages. Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-6 to attach using a 3/8-16 screw with ARRI locating pins. 30.5 cm cable length with custom low profile right angle mini XLR connector. Compatible with the Blackmagic Design Pocket Cinema Camera 6K Pro (CINECAMPOCHDEF06P) and Pocket Cinema Camera 6K G2 (CINECAMPOCHDEF6K2) Product Weight: 56gProduct Dimensions (WxLxH): 35 x 362 x 28mm

Blackmagic Cinema Camera 6K Introducing a new generation in cinematography! The new Blackmagic Cinema Camera 6K is an extremely high end digital film camera that produces precise skin tones and rich organic colors. The camera features a massive full frame 24 x 36mm 6K sensor with wide dynamic range, a very flexible L-Mount for lenses and a built in optical low pass filter that's custom designed to match the sensor. You also get fast CFexpress media and the camera can even use Pocket Cinema Camera accessories! When you are doing cloud and mobile work, the camera records both deep bit depth Blackmagic RAW and H.264 proxies at the same time! No other camera includes this level of technology, image quality and portability! Camera Features Effective Sensor Size: 36mm x 24mm (Full Frame)Lens Mount: Active L-MountLens Control: Iris and focus on supported lensesDynamic Range: 13 StopsDual Native ISO: 400 and 3200Shooting Resolutions:6048 x 4032 (Open Gate 3:2) up to 36 fps4838 x 4032 (Anamorphic 6:5) up to 36 fps6048 x 3200 (6K DCI 17:9) up to 48 fps6048 x 2520 (6K 2.4:1) up to 60 fps4096 x 3072 (Super 35 4:3) up to 50 fps4096 x 2160 (4K DCI 17:9) up to 60 fps2112 x 1184 (Super 16 16:9) up to 100 fps1920 x 1080 (1080 HD 16:9) up to 120 fpsFrame Rates: Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HDFocus: Auto focus available using compatible lensesIris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lensesScreen Dimensions: 5” 1920 x 1080Screen Brightness: 1500 nitsScreen Type: LCD capacitive touchscreenMetadata Support: Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW filesControls: Touchscreen menus on 5 inch screen, 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Playback ButtonTimecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
