Middle Things Fiber Unite 10 12G
€4,990.00*
Free shipping
Available, delivery time: 2-5 days
Middle Things Fiber Unite 10 12G
Built for on-location multi-camera workflows in mind, the Fiber Unite 10 converts 10 pairs of SDI In/Out 4K video signals and a LAN connection into a single 12 channel optical cable : Neutrik opticalCON MTP 12.
Ever felt the time-consuming task of pulling so many cable drums from the control room to the stage ? With the Fiber Unite 10 converter, you can merge up to 10 pairs of 4K SDI IN / SDI Out signals + a LAN connection into one single 12 channel MTP 12 fiber cable. You can connect the other end of the MTP 12 cable into another Unite 10 module that will demerge into 10 SDI In/Out Pairs + LAN.
A multichannel optical cable is lighter and much more reliable than a traditional copper BNC cable since it is insensitive to all electromagnetic interferences. You can run your fiber cable over thousands of miles with zero dropouts.

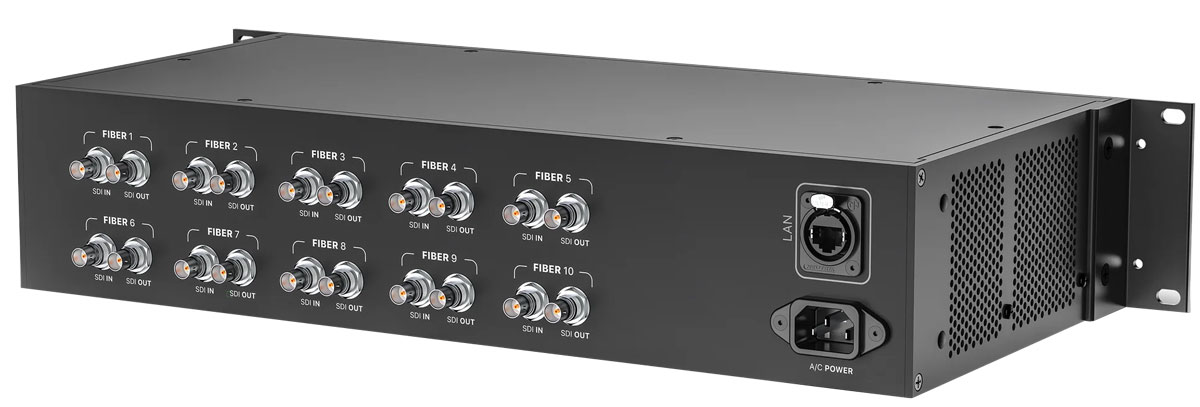

Thanks to a compact 2U rack design, the Fiber Unite converter will sit perfectly inside your existing video rack, allowing you to another Fiber Unite 10 module through a single cable.
The opticalCON MTP 12 connector makes the Unite compatible with the rugged opticalCON MTP 12 cable drums by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the 12 fiber cores as soon as the cable is disconnected.
Technical Specifications
- I/O connections: 10x SDI In, 10x SDI Out, 1x Neutrik opticalCON MTP® 12, 1x LAN 1G , AC Power
- Input Voltage : 85V ~ 264V AC
- Power Consumption : 40W
- Fiber type : Single Mode
- LAN support : 10/100/1000Mbps Full/Half Duplex
- Dimensions : 8.89cm x 48cm x 22.5cm
- Weight : 3.4kg
- Storage Temperature :-10 to 60°C
Details of the manufacturer
- MIDDLE THINGS
- 38 Rue du Clos Montholon Middle Mot
- 92170 VANVES, France, EU
+33179727327
