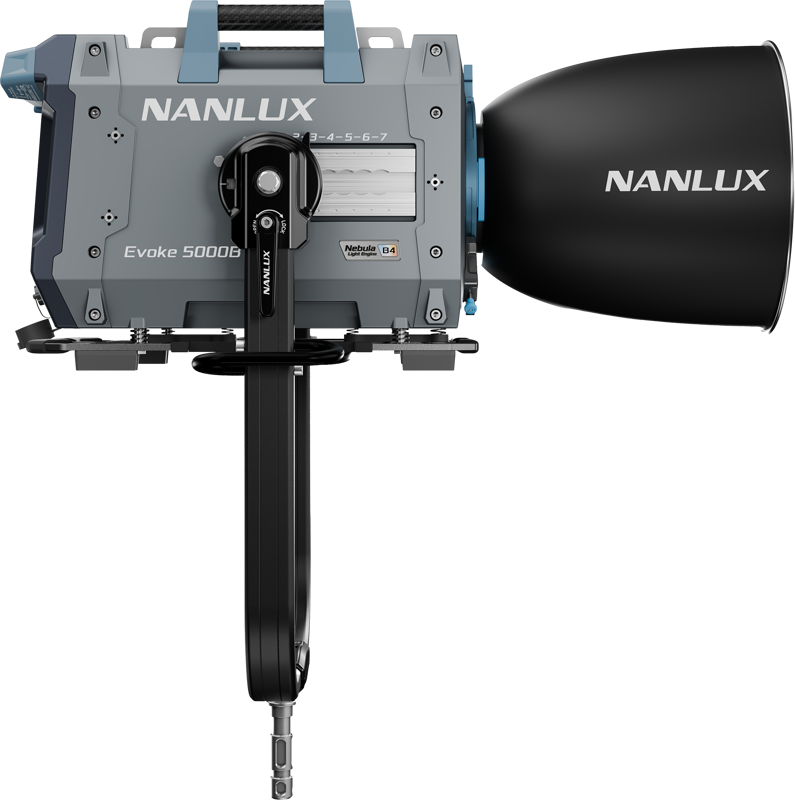

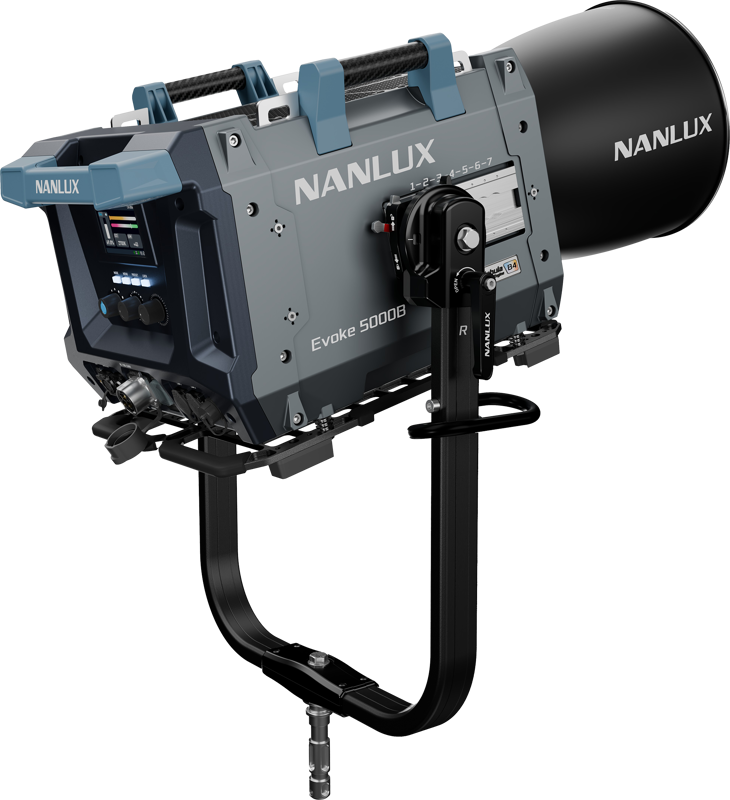

NANLUX Evoke 5000B

NANLUX Evoke 5000B

The Nanlux Evoke 5000B, the world’s first 5000W stormproof LED bi-color spotlight with Green/Magenta adjustment, delivers unparalleled power, precision, and versatility, making it the ultimate tool for professional film and television productions. Designed to replace traditional high-output fixtures, the Evoke 5000B sets a new benchmark in the industry by combining high-intensity illumination with precise color control, streamlined operation, and extreme weather resistance.

Equipped with the Nebula B4 Light Engine, the Evoke 5000B offers a color temperature range of 2700K-6500K with ±80 Green/Magenta adjustment, ensuring seamless color matching on set. The ability to adjust both color temperature and green/magenta values makes it an essential tool for cinematographers looking to create consistent, accurate lighting in dynamic shooting environments. With a massive 5000W power draw, it rivals the output of a 9kW HMI or 24kW tungsten light, providing 22,210 lux at 5m (5600K with a 45° reflector), allowing for stunning, high-quality lighting effects with minimal effort. The combination of high-powered LED technology and innovative engineering ensures that the Evoke 5000B provides exceptional brightness without excessive heat generation, making it an efficient and reliable choice for demanding production environments. Whether shooting in daylight conditions or working with complex lighting setups, the Evoke 5000B offers the flexibility and performance needed to achieve professional results.

Features

• Innovative Nebula B4 light engine to achieve 2700K-6500K with G/M±80 adjustment
• Light and shadow quality comparable to natural sunlight
•  IP66 rating for robust weather protection
• Weighing only 43.119kg/95.06lb, made of magnesium alloy for significant weight reduction
• All-in-one design integrates the lamp head, control unit, and adapter into one fixture
• Refined usability features like the balance adjusting rail, skid, and the new PosiTight tightening enhancement of the NL mount
• Linear dimming from 0.0% to 100.0%, with precise control between 0.0% and 0.1%
• Multiple control methods On-board, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, Wired Controller
• fan modes SMART, FULL SPEED, LOW SPEED, PAUSE, OFF
• NL mount and complete accessory ecosystem, compatible with most Evoke 2400B accessories and featuring versatile accessories specifically developed for the Evoke 5000B

Technical data

• Rated Power: 200V-240V: 5000W / 100V-125V: 5200W
• Input Voltage/Current AC100V-240V/52A(Max) 50/60Hz
• Beam Angle: 95°
• CCT: 2700K-6500K (G/M±80)
• CRI: Average 97
• TLCI: Average 98
• TM-30 Rf: Average 96
• TM-30 Rg: Average 102
• SSI (3200K): 85
• SSI (5600K): 74
• Dimming: 0.0%-100.0%, by 0.1% increment
