Next Level NL-3 antenna amp / splitter

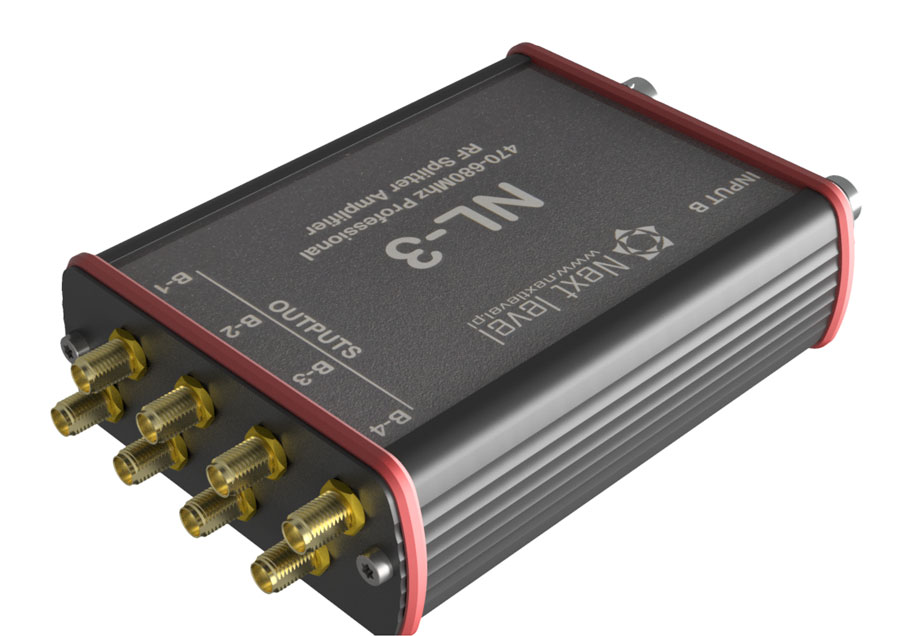

Next Level NL-3 antenna amplifier / splitter

Next Level NL-3 is a double compact, amplifier and antenna splitter designed for wireless receivers. The device contains four functional blocks, an ultra-low noise stabilizer, a professional RF filter operating in the 470-680Mhz band, an uncompromising RF amplifier and an antenna signal splitter. All blocks together form a system with extremely high parameters. NL-3 is used wherever there is a need to provide an antenna signal from two antennas to more than one diversity receiver. This device is ideally suited to movie plans, and wherever there is a need to use multiple wireless microphones. Particularly noteworthy is the bandpass filter used in the device, whose task is to remove any interference signals from outside the receiver's operating band NL-3 consists of two identical sections. Each of them is equipped with two BNC antenna inputs and four independent SMA outputs. The device housing is made of powder-coated aluminum.

Technical data

Frequency response 470-680Mhz
Gain Ok. 12dB
Input impedance 50 Ohm
Output impedance 50 Ohm
Input Port BNC
Output Port SMA
Power 15V DC
Power consumction ~200mA
Dimensions 136mm x 82 x 33mm
