PATONA 290Wh Platinum B-Mount battery

€650.00*

gross: €773.50

Prices excl. VAT plus shipping costs

Available, delivery time: 1-3 days

Product number: SW28280

PATONA Platinum B-Mount battery with 290Wh 10.1Ah incl. USB-C PD60W input and output 2x D-Tap 16V

Discover the latest innovation in our PATONA Platinum series: the B-Mount batteries. Equipped with advanced cell technology, these batteries offer outstanding performance and reliability for the highest demands. Their powerful protection circuits continuously monitor cell balance, temperature, overcharging, and over-discharging to ensure maximum safety and operational efficiency.

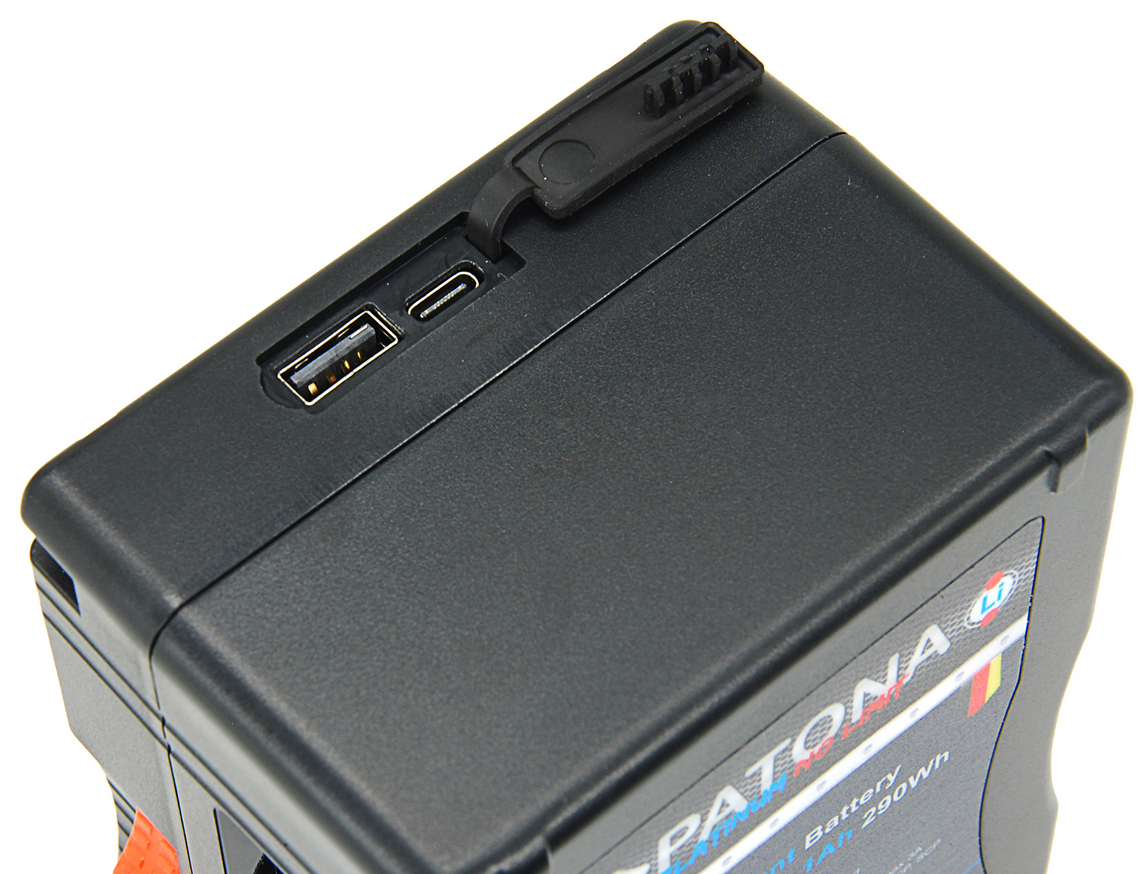

The integrated OLED display provides a clear overview of the remaining capacity, keeping you well informed at all times. With the versatile D-Tap output, you can easily connect lights and other external devices. The USB-A and USB-C ports allow you to conveniently charge smartphones, tablets, and other devices.

A highlight of the Platinum B-Mount battery is its integrated power bank function. Charge devices up to 60W and enjoy the freedom of mobile power supply.

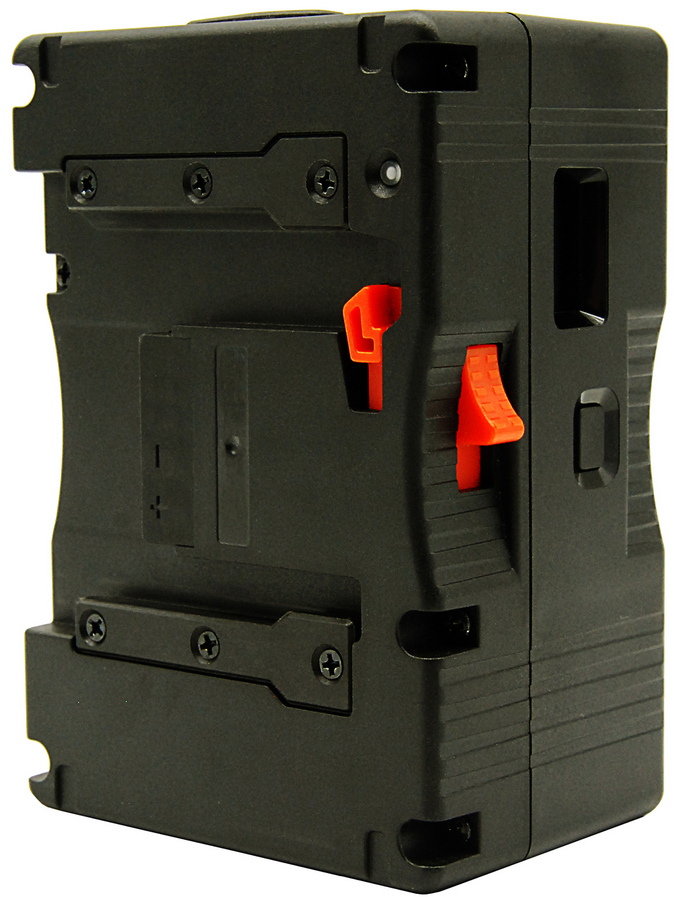

By pressing the Power-Check button twice, you activate the LED light on the back of the battery, making the B-Mount plate easily visible even in dark production environments. Pressing the Power-Check button twice again turns the light off, giving you full control over the lighting at all times. This thoughtful feature optimizes handling and ensures you can work efficiently even under challenging conditions.

Technical Data

  • Voltage: 28.8 Volts
  • Capacity: 10.1Ah / 290Wh
  • Constant Load: 250W, 10A
  • Maximum Charging Current: 165W, 5A
  • Fast Charging: 100W, 3A
  • Cell Type: Li-Ion
  • Number of Cells: 24x 18650GA
  • Integrated LED Light
  • D-Tap 2x Output Voltage: max. 50W, 16V/3.1A
  • USB-C Port Input: PD 60W, 15V/20V (Max.) 3A -> 5.5h charging time to 100%
  • USB-C Port Output: 60W, 5V/9V/12V/15V/20V (Max.) 3A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
  • USB-A Port: 10W, 5V/2A
  • Charging Temperature Range: 0 - 40°C
  • Discharge Temperature: -20 - 50°C
  • Weight: 1484g
  • Size: 143 x 101 x 70 mm

The battery is compatible with the following models

  • Blackmagic URSA Cine
  • ARRI ALEXA 35
