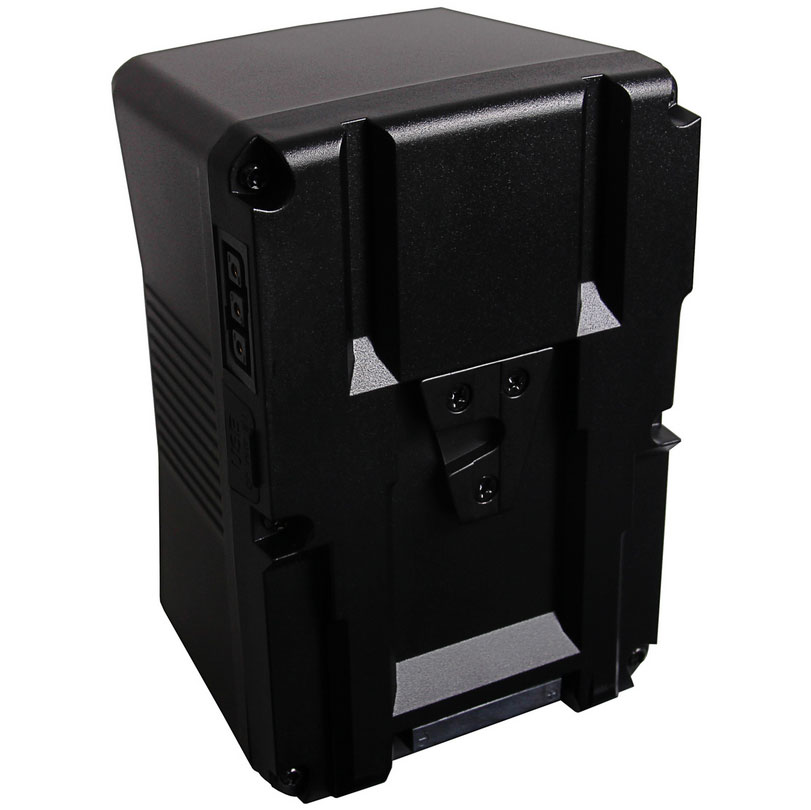

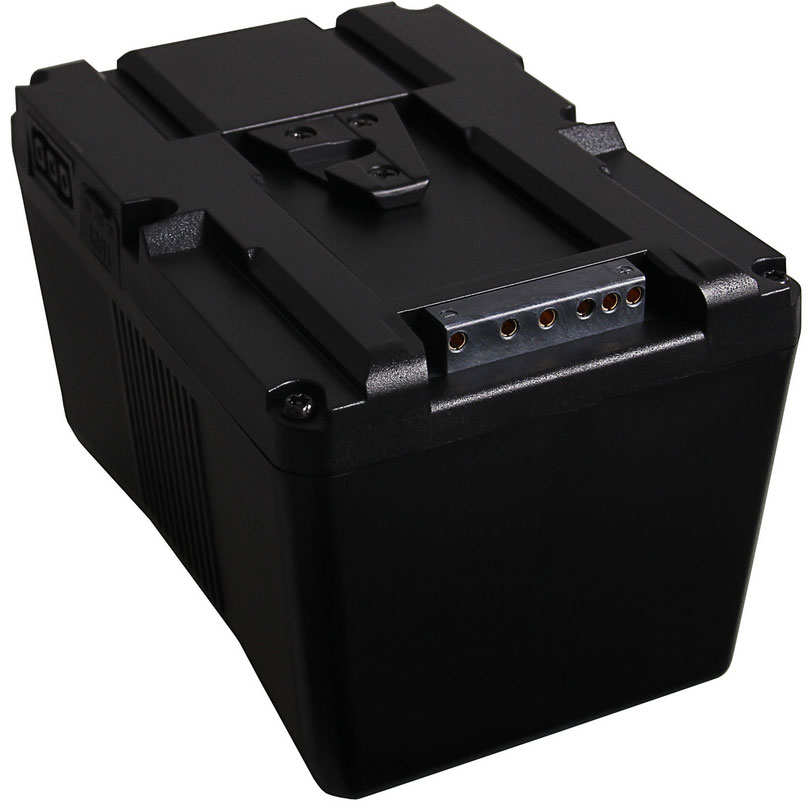

PATONA Platinum Battery 288Wh V-Mount

Core SWX Helix Max 275 V-mt SKU: HLX-275MXV Core SWX Helix Max 275 V-mt is a Native Dual Voltage lithium ion v-mount battery with a robust load output. The Helix Max 275 is equipped with a 3-phase backlit runtime LCD, strategically mounted on the side of the pack, providing the camera operator or grip unparalleled information on battery life and charge status. This advanced LCD is designed to display estimated runtime when the pack is not in use and actual calculated runtime when it is in use by sampling the load every 3 seconds. When placed on a charger, the LCD rotates 90 degrees to display the remaining charge time until the battery is fully charged. Additionally, the LCD displays a bar graph, runtime in hours and minutes, and remaining percentage capacity, allowing filmmakers and lighting professionals to make informed decisions about their power management strategy. Additionally, Helix Max battery packs are able to communicate remaining runtime to the camera’s display. By transmitting the same information displayed on the runtime LCD to the camera, operators can view important data such as voltage, battery runtime, and percentage directly on their camera. This feature not only saves time by eliminating the need to check the battery’s status manually, but it also ensures that camera operators always have the most up-to-date information about the battery’s performance. With this level of communication, professionals can work with greater efficiency and accuracy, knowing they have a reliable power source to support their creative vision. Features 2K Cycles 2Y WarrantyCamera CommunicationCompatible ChargingDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRuntime LCDUSB PowerWraparound LED Technical data Native Dual Voltage lithium ion battery with a robust load outputCapacity: 275whOperational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 8,89 cmx 16 cm x 7 cmWeight: 1,40 kgLoad: continuous 20A @ 16.8v and 10A @ 33.6v

PATONA Platinum Battery 216Wh V-Mount For additional convenience, the battery has a D-Tap connector, a DC connector (10-16.8V, 3A max.) and a USB output built in. Thus, additional devices can be connected and used. A 4-stage LED display informs you about the charging status of the battery. In the PATONA Platinum series, the most advanced cells have been installed, which have a quality that is not only exceptional, but also impressive at the same time. The Platinum series is the highest quality, longest lasting and most innovative series from PATONA. With the purchase of a battery from the PATONA Platinum Series you acquire an excellent, exquisite product that will fascinate you. Technical Data Capacity: 15.000mAh / 14,4V / 216WhOutput USB: 5V / 2,4AD-Tap Input: 16,8V / 7A max.D-Tap Output: 10-16.8V / 240W max.DC in: 16.8V 3A maxDC out: 10V-16.8V 3A max.Connection-Type: V-MountType: Li-IonNumber of cells: 12Max. Charging current: 6AMax. Discharge current: 14.3A (16.8V) ~ 24A (10V) Weight: 1545grDimensions: 97x88x146mmBrand: PATONA Platinum
