PATONA Platinum NANO V50 V-Mount Battery

€147.00*

gross: €174.93

Prices excl. VAT plus shipping costs

Available, delivery time: 1 day

Product number: SW24773

Manufacturer: patona

Manufacturer product number: 1298

Delivery time: 1 day

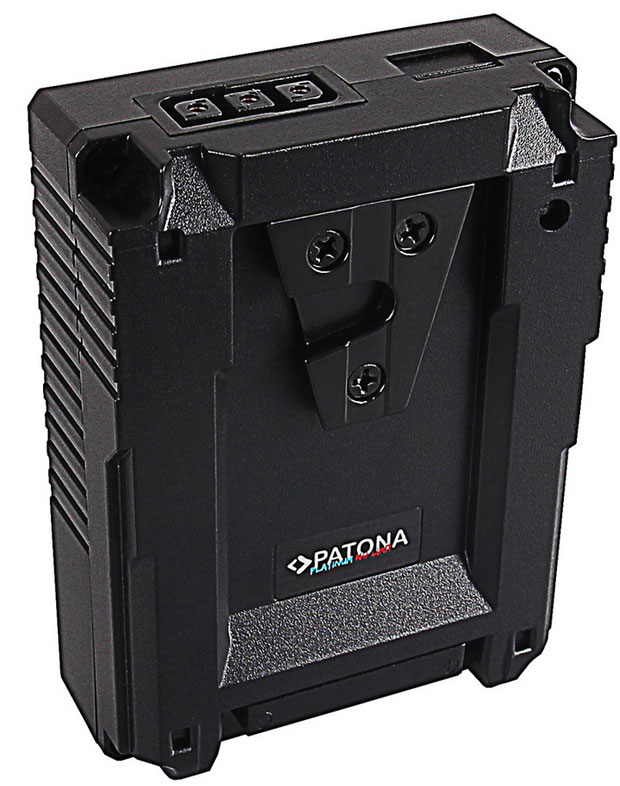

PATONA Platinum NANO V50

Brand new to the PATONA Platinum series are our high-current NANO V-Mount batteries in a high-quality housing. Our batteries are equipped with the latest cell technology and have been specially designed to handle and maintain high power consumption. Protective circuits monitor cell equilibrium, temperature, overcharge and overdischarge to ensure safe and proper operation. Compared to normal V-Mount batteries, the new PATONA NANO V-Mount batteries have an approximately 30% smaller design with higher performance data. In addition, particular emphasis was placed on an appealing and modern design. A 4-stage LED display shows you the remaining capacity at any time. The P-Tap / D-Tap output can be used for lamps and many other external devices. Furthermore the USB output can also be used to charge smartphones and tablets, for example.

Technical Data

Voltage: 14,8 Volt
Capacity: 3200mAh / 47Wh
Cell type: Li-Ion
Number of cells: 4 x 18650 LG
Max. Power rating: 9A
Overload protection: 10A
P-Tap/D-Tap output voltage: max. 100W, 12.0V/8,3A / 16,8V/5,95A
USB-connection: normal mode 5V/2,4A / fast charging mode: 9 V/2A maximum
weight: 316 gr
size: 75 x 105 x 34mm
Brand: PATONA Platinum

Details of the manufacturer

PATONA International S.L.U.
Patric Schwärmer
Untere Giesswiesen 17
78247 Hilzingen, Germany, EU

info@patona.de

Warnings and safety information

Warnings and safety information - PDF
