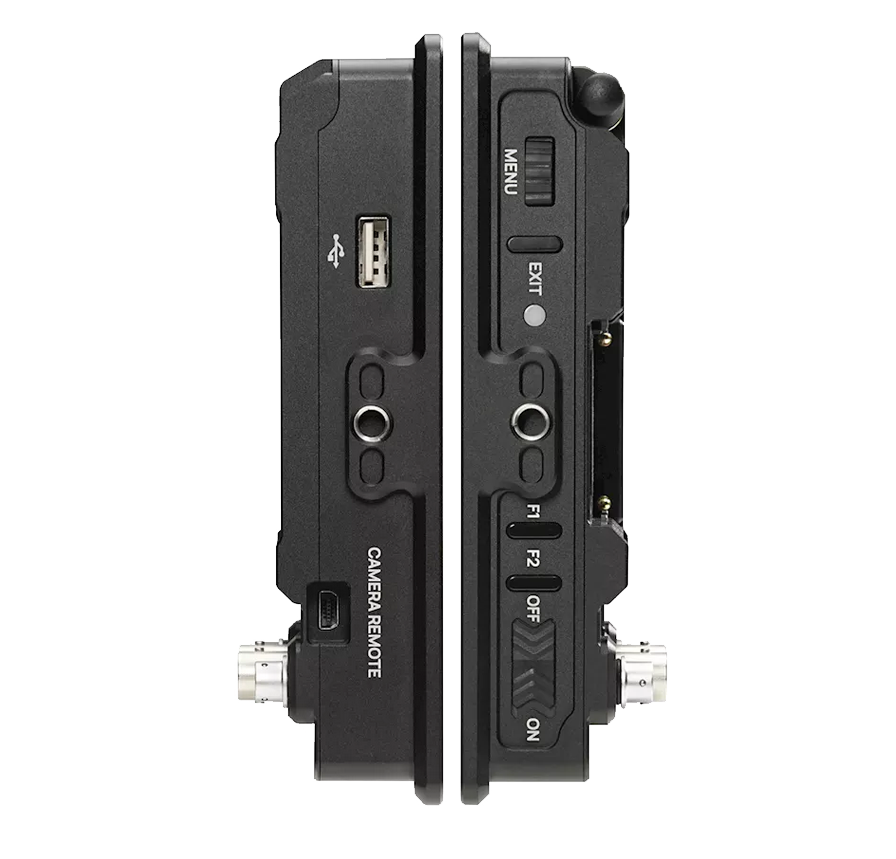

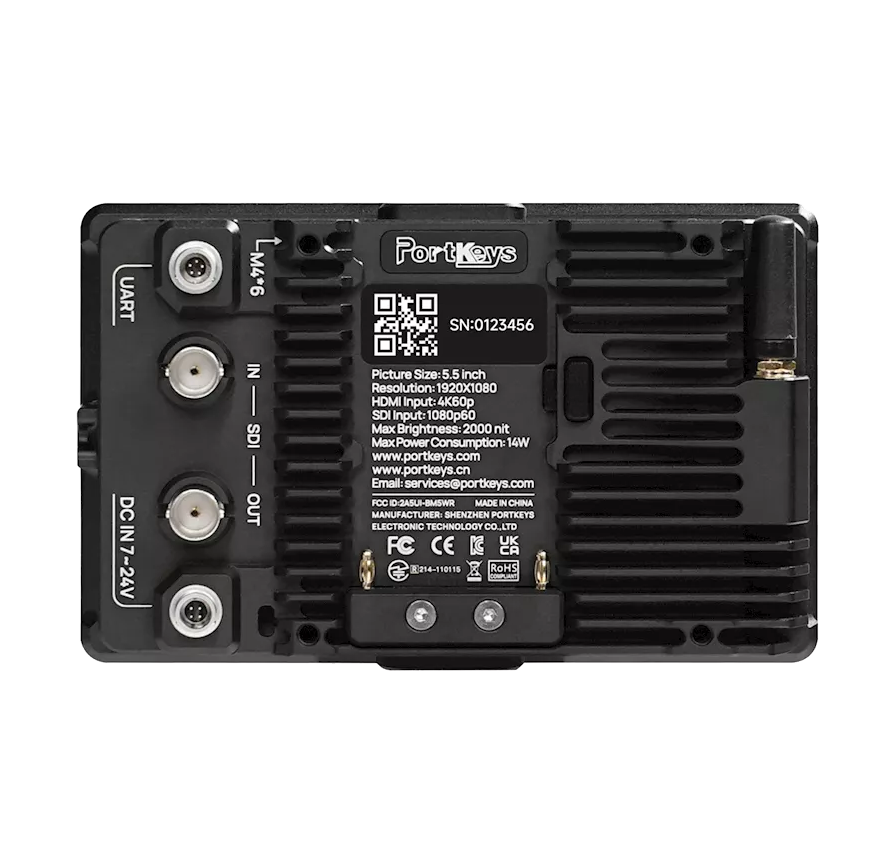

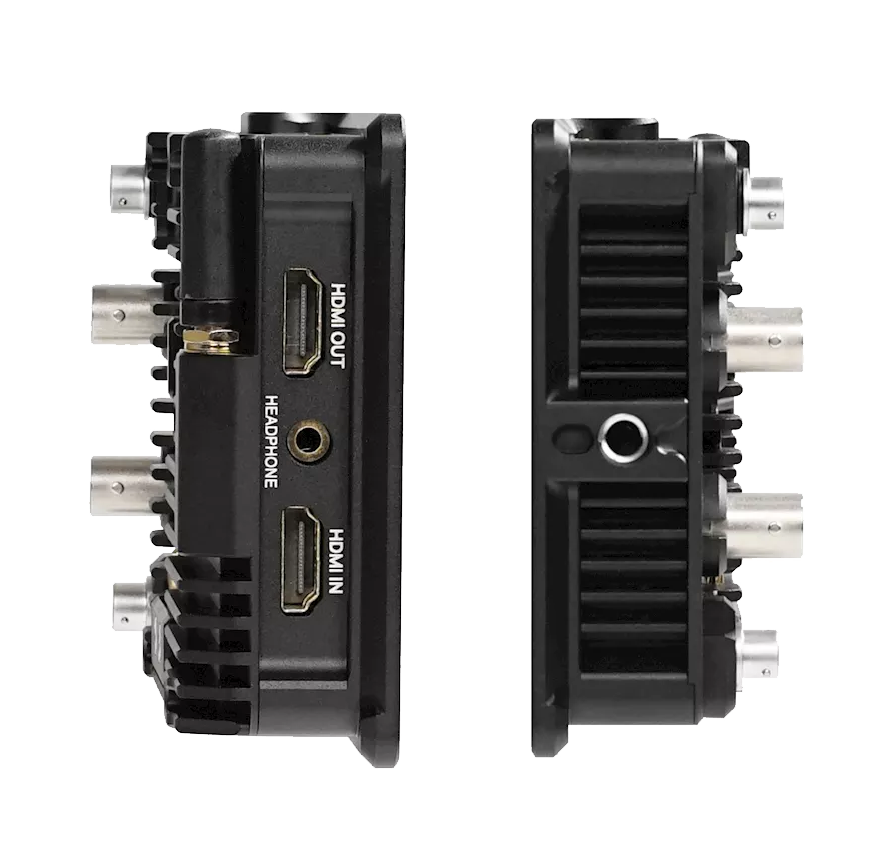

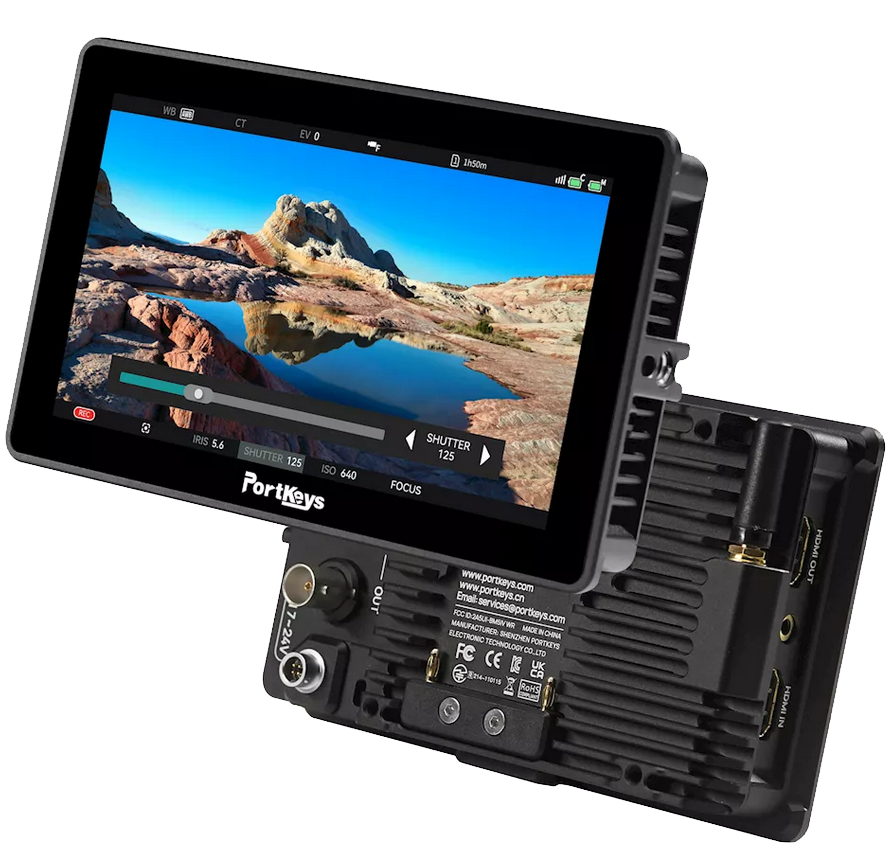

Portkeys BM5 IV WR

Portkeys BM5IV WR

5.5” 2000Nits 4K60P HDMI&3G-SDI Wide Color Gamut Wireless Camera Control Monitor

  • Built-in CINENORM OS, brand new user interface & user experience
  • Custom Pages, support custom up to 7 pages, adapt to different shooting scenes and roles
  • False color, ARRI false color, user false color, and LOG false color
  • User calibration, the user can import two sets of custom color calibration files, no need to send the monitor back to the factory for calibrating
  • Split-screen monitoring, switching PBP, PIP, and H2V cropping mode freely
  • Wireless control of ARRI, RED, SONY, Nikon, Canon, Panasonic, and BMD
  • User configuration store and loading, settings of the monitor can be saved to a USB drive and imported into the same model monitor
  • Support HDMl and SDl signal output simul, and HDMI & SDI conversion
  • Professional monitoring features, like Peaking, Zebra, Luma Waveform, Luma Histogram, and more

Technical data

  • Screen Size: 5.5"
  • Dimension: 145.4×91.4×39.6mm
  • Viewing Angle: 178°H/178°V
  • Brightness: 2000nits
  • Resolution: 1920x1080
  • Contrast Ratio: 1000:1
  • Weight: 362g
  • Color Depth: 10bit (8+2FRC)
  • Material: Aluminum alloy
  • Input Voltage: 7~24V
  • Maximum Power: 17W
  • Signal Input: 3G SDI, HDMI
  • Signal Output: 3G SDI, HDMI
  • Audio Output: 3.5mm Headphone jack
  • Power Input: 4-Pin aviation connector + 2-pin LEMO
  • Signal Conversion: HDMI/SDI Conversion
  • Camera Control Interface: REMOTE
  • TILTA Nucleus Control Interface: UART
  • Supported Battery Model: SONY NP-F970/F960/F750/F550
  • USB-A: Upgrade firmware / Load LUT
  • Fan: Yes
  • Operating System: CINENORM OS

In the box

  • 1x BM5IV WR Monitor
  • 1x Safety Box
  • 1x D-Tap to 4-pin aviation connector power cable
  • 1x Micro USB flash stick
  • 1x Customer feedback card
  • 1x 2.4G Straight antenna

Details of the manufacturer

  • PortKeys
  • 1406, 14th Floor, Block D, Building 3, Cloud Park, Longgang District, Shenzhen, Guangdong, China

https://www.portkeys.com/contact-us/

Details of the person responsible for putting the product on the European market

  • Aspectra B.V.
  • Marc Derks
  • Spoorhaven 78
  • 2651 AV Berkel en Rodenrijs, The Netherlands

backoffice@aspectra.nl

Related links of the manufacturer

Similar products

Tip
Portkeys BM5 III WR 5.5-inch on-camera monitor
Portkeys BM5 III WR Looking for a wireless budget-wise 5.5-inch on-camera monitor? The Portkeys BM5 III WR is ready for every creative adventure. The BM5 III WR is compact, and has a daylight-viewable touchscreen, four user function buttons, and a full suite of professional monitoring toolsThe housing of the BM5 III WR is entirely made of rugged aluminium and has toughened glass in front of the display. However, with a weight of only 376g/13.2oz (without battery), it won’t add much poundage to a camera rig. In the box 1x BM5 III WR Monitor1x Power Cord 100cm(4-pin aviation to D-tap)1x Power Cord 40cm(4-pin aviation to DC)1x L-Type Antenna1x LANC Control Cable 40cm1x Type-C Control Cable 40cm1x Warm Prompt Card1x Safety Box1x USB (Manual, 3D LUTs, Firmware Inside) Technical data Screen Size: 5.5”Dimensions: 145.4 x 120.9 x 38.5mmViewing Angle: 178°H/178°VBrightness: 2200nitResolution: 1920x1080Contrast Ratio: 1000:1Weight: 383gMaximum Power: 14WAntenna: 2.4GMaterial: Aluminium alloy + Toughened glassInput Voltage: 4pin Aviation Connector, IN: 7.4-24VOutput Voltage: 4pin Aviation ConnectorOUT: 7.4V(NPF)Color Depth: 10bit(8+2 FRC)Video Signal Input: SDI/HDMIVideo Signal Output: SDI/HDMIMotor Control Port: 5pin Aviation ConnectorCamera Control Port: Mini USB 10pinUSB-A: Upgrade Firmware/Load LUT

€600.00*
gross: €714.00
Portkeys BM5 IV
Portkeys BM5IV 5.5-inch on-camera monitorThe Portkeys BM5 IV 5.5" 2000-Nits 4K60P HDMI & 3G-SDI Camera Control Monitor provides high brightness, accurate color, and advanced monitoring features for professional cinematography, making it perfect for both on-set and location shoots.The Portkeys BM5 IV is a 5.5" ultra-bright 2000-nits camera control monitor offering 4K60P HDMI and 3G-SDI inputs. Designed for dynamic production environments, this monitor is equipped with a built-in CINENORM OS, which introduces a streamlined user interface with up to seven customizable pages, allowing quick adaptation to various shooting scenes and user roles. The BM5IV supports advanced professional monitoring tools, including False Color, ARRI False Color, and customizable false color options, ensuring accurate exposure adjustments and monitoring.FeaturesHigh Brightness Display: 5.5" screen with 2000 nits, visible even in bright outdoor conditionsAdvanced CINENORM OS: New user interface for improved navigation and customizable up to 7 pagesFlexible False Color Options: Includes standard, ARRI, user-defined, and LOG false color optionsSplit-Screen Monitoring: Supports PBP, PIP, and H2V cropping for versatile monitoringCustom Calibration: Users can upload two custom calibration files, eliminating factory recalibrationUSB Configuration Storage: Save settings to USB for easy transfer to other BM5 IV monitorsTechnical dataScreen Size: 5.5 inchesBrightness: 2000 nitsResolution: 4K60P supportInputs: HDMI & 3G-SDIMonitoring Tools: Peaking, Zebra, Luma Waveform, Luma HistogramCalibration: User-imported custom color calibration files

€550.00*
gross: €654.50
Tip
Portkeys BM5 III
Portkeys BM5 III 5.5-inch on-camera monitorThe housing of the BM5 III is entirely made of rugged aluminum and has toughened glass in front of the display. Looking for a robust 5.5-inch on-camera monitor?The Portkeys BM5 III is ready for all your next creative adventures thanks to its compact form factor. But also it’s daylight-viewable touchscreen, four user function buttons, and a full suite of professional monitoring tools. However, with a weight of only 351g/12.3oz (without battery), you’ll easily forget it on your camera rig. In the box1x BM5 III Monitor1x Power Cord (Aviation Port-D-TAP)1x Power Cord (Aviation Port-DC)1x LANC Control Cable1x Type-C Control Cable1x Warm Prompt Card1x Safety Box1x U Disk(Manual,3D LUTs,Firmware Inside)1x USB (Manual, 3D LUTs, Firmware Inside)

€450.00*
gross: €535.50
Free shipping

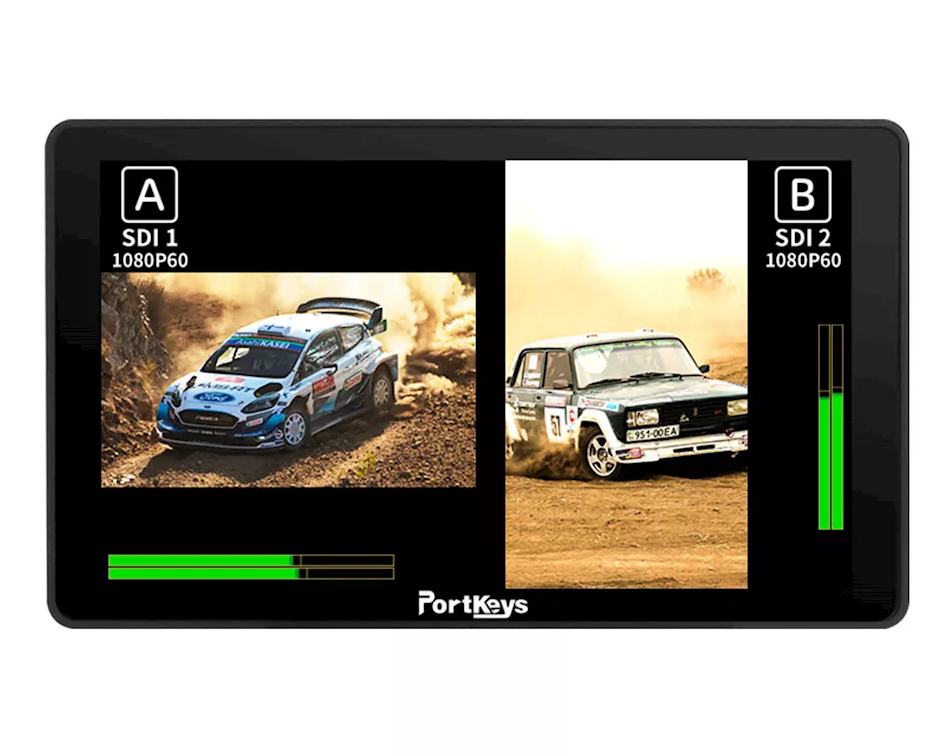

PortKeys BM7 II DS 7-inch touchscreen monitor
