PortKeys OEYE-RED EVF HDMI SDI Electronic OLED Viewfinder
€1,450.00*
Free shipping
Available, delivery time: 2-5 days

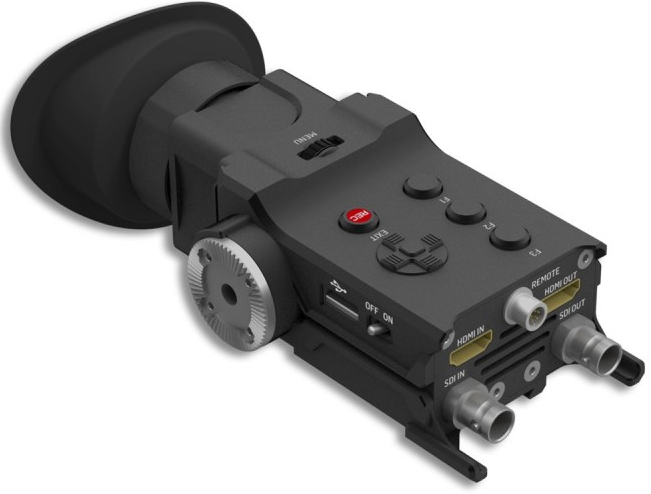

PortKeys OEYE-RED
The new OEYE-RED OLED viewfinder is designed to control RED cameras natively (MONSTRO 8K VV, HELIUM 8K S35, GEMINI 5K S35, DRAGON-X 6K S35, RED KOMODO 6K), and offers 3G-SDI input / output (up to 1080p60) and simultaneously also a 4K HDMI input / output (up to DCI 4K 24 fps or UHD 30 fps). It features an 0.71“ OLED display with a 200 cd/m2 brightness and 100.000:1 contrast, weights 400 g, consumes approx. 10W of power, and features a +8D~-3D diopter. Also available are numerous software features incl. 3D LUT, Waveform Display, False Color, Peaking, Zoom etc.
Key Features
0.71″, 1920 x 1080 micro-OLED EVF display with comfortable eyecup
200 cd/m² brightness, 100,000:1 contrast ratio, 8-bit color

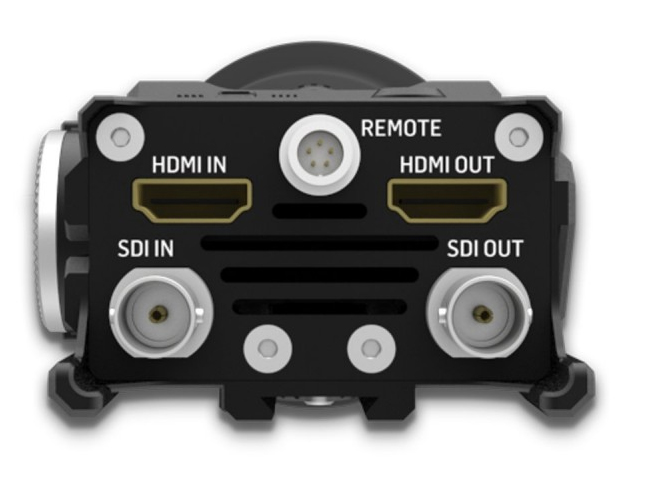

HDMI input and output support resolutions up to DCI 4K24
3G-SDI input and output support resolutions up to 1080p60
5-pin LEMO-type remote control output port
Built-in adjustable +8 to -3 diopter
Fan Synchronization Mute in Rec mode when work with RED camera
Rosette mount on the side
Durable aluminum construction
Tools
3D LUT
Audiometers
Pixel-to-pixel
Brightness
Contrast
Chroma
Backlight
Zoom
OSD flip
Grids
Peaking
False-color
Waveform
Sharpness
Tint
Color temperature
Aspect
Check field
H/V delay
Guides
Crosshairs
Zebra
Underscan
