Next Level NL-1 single channel audio splitter
€149.00*
gross: €177.31

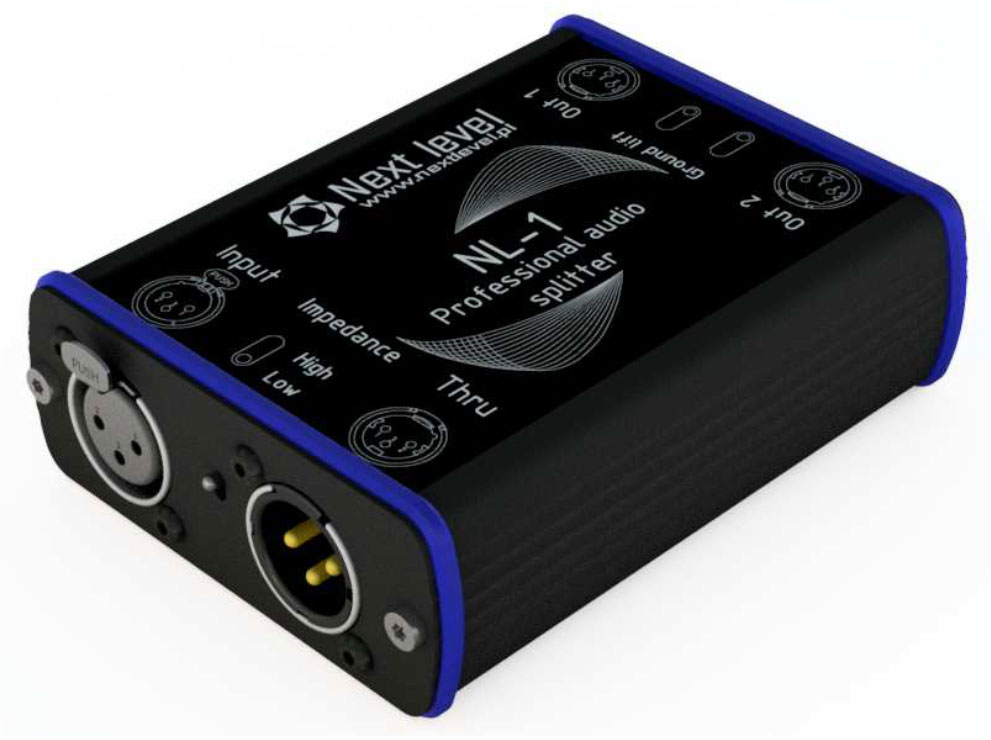

NextLevel NL-1
It is a professional device splitting audio signals, closed in a compact metal casing. This device is ideal wherever there is a need of splitting audio signal or providing galvanic separation between elements of audio track. Thanks to its small size NL-1 is perfect as "problem solver" especially in mobile installations such as:
stagesfilm set(TV) StudiosDSNG vans
The NL-1 is equipped with one input, True direct output and two galvanically separated outputs with independent ground fault.
The splitter is built using Lundahl audio transformers ensuring highest broadcast quality and minimum distortion.The device is adapted to work in a wide range of input levels: from microphone to +16dBu. The splitter casing is made of powder-coated aluminum.The device uses the highest quality XLR connectors from Neutrik with gold-plated contacts.To ensure the best matching, the input is equipped with an input impedance switch.Made in the EU
Technical data
Dimensions: (LxWxH): 111mm x 82mm x 33mmDistortion: 0.1% @ + 6 dBU, 50Hz / 1% < @ + 16 dBU, 50HzFrequency response: 10 Hz - 200 kHz +/- 0.5 dBIsolation: winding-to-winding - 4kV / Winding to screen - 2kV / Screen to screen - 2kV
Next Level NL-3 antenna amp / splitter
€879.00*
gross: €1,046.01

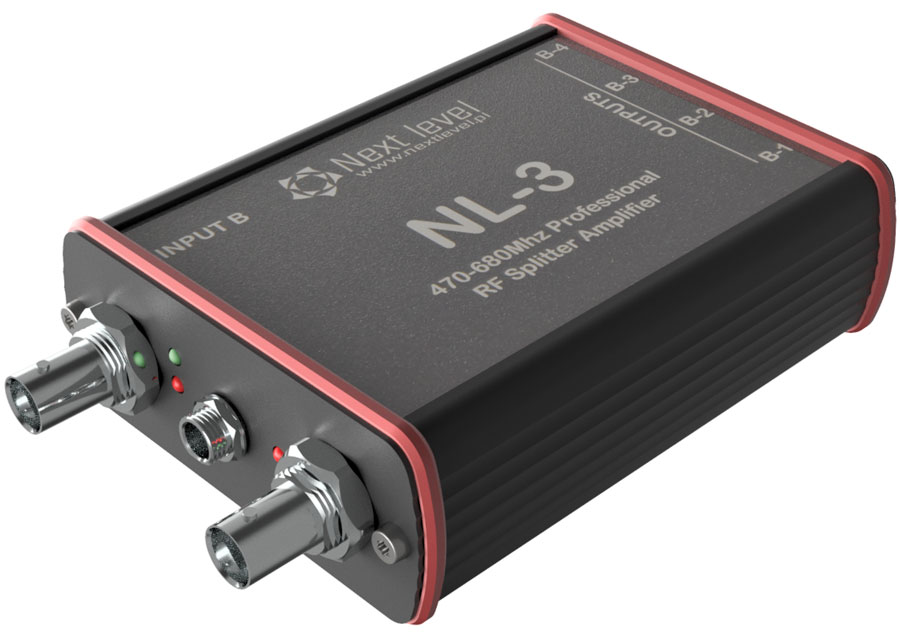

Next Level NL-3 antenna amplifier / splitter
Next Level NL-3 is a double compact, amplifier and antenna splitter designed for wireless receivers. The device contains four functional blocks, an ultra-low noise stabilizer, a professional RF filter operating in the 470-680Mhz band, an uncompromising RF amplifier and an antenna signal splitter. All blocks together form a system with extremely high parameters. NL-3 is used wherever there is a need to provide an antenna signal from two antennas to more than one diversity receiver. This device is ideally suited to movie plans, and wherever there is a need to use multiple wireless microphones. Particularly noteworthy is the bandpass filter used in the device, whose task is to remove any interference signals from outside the receiver's operating band NL-3 consists of two identical sections. Each of them is equipped with two BNC antenna inputs and four independent SMA outputs. The device housing is made of powder-coated aluminum.
Technical data
Frequency response 470-680MhzGain Ok. 12dBInput impedance 50 OhmOutput impedance 50 OhmInput Port BNCOutput Port SMAPower 15V DCPower consumction ~200mADimensions 136mm x 82 x 33mm
