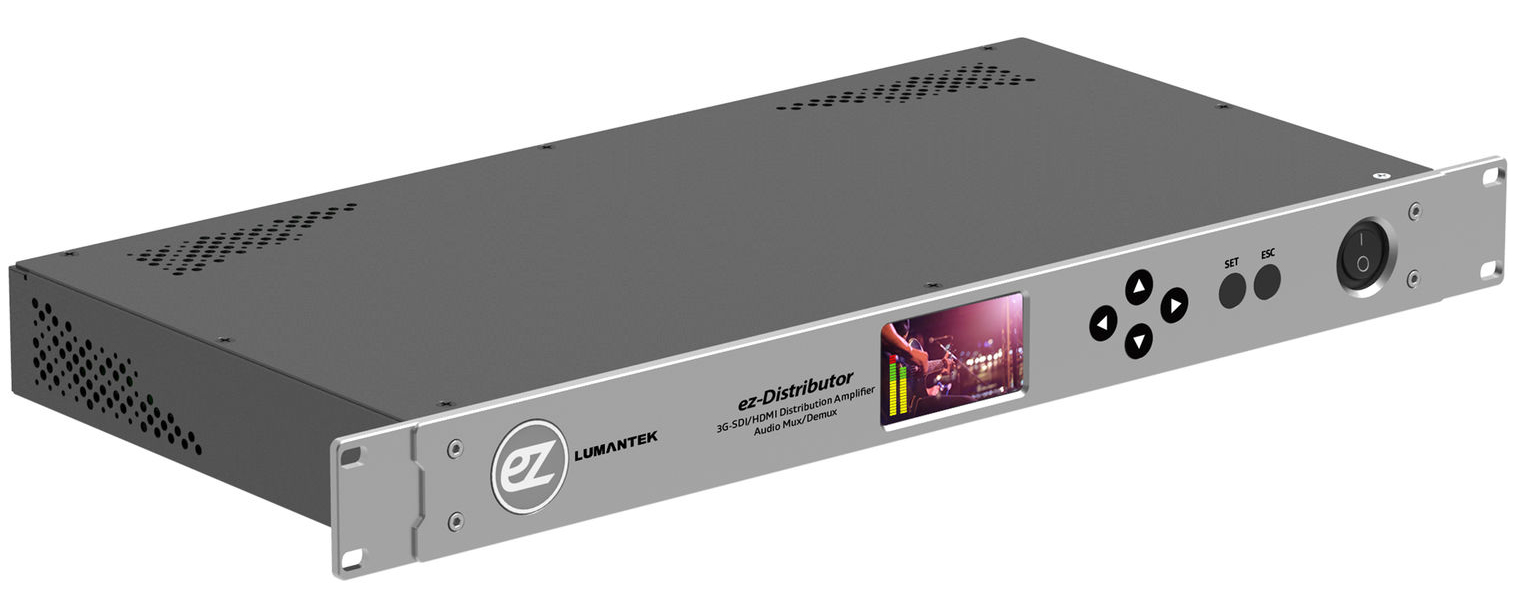

Lumantek ez-Distributor Distribution Amplifier with LCD Monitoring
€819.00*
gross: €974.61
Lumantek ez-Distributor
LUMANTEK's ez-Distributor is a 14 channels distributor in 1RU size. It has 1 x HDMI and 1 x 3G-SDI input, and 2 x HDMI outputs and 12 x 3G-SDI outputs. You can embed external audio and de-embed incoming video audio. With the LCD screen, it is very easy to monitor what is being played through the distributor.You have plenty of distribution ports with ez-Distributor. From 1 x 3G-SDI or 1 x HDMI, you can produce 12 x 3G-SDI and 2 x HDMI signals!If you wish to add an external audio to the video which is being distributed, don't worry. ez-Distributor, has a pair of XLR port for you to input a different audio. You can also take the sound out of the video.It is easy to check what is being played on the LCD screen. You can also check the audio bar on the screen to find out if the sound is played.
Input Ports
Video: 1 x 3G-SDI 1 x HDMI 1.3 Audio: 1 pair x XLR External Audio
Output Ports
Video: 12 x 3G-SDI 2 x HDMI 1.3 Audio: 1 pair x XLR De-embedded Audio
Free shipping

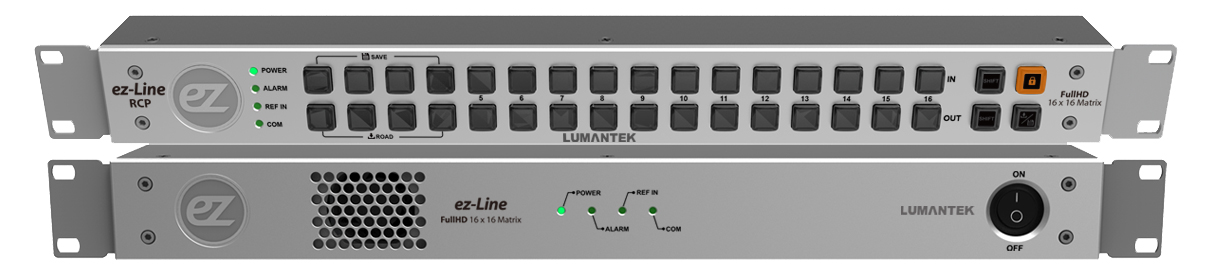

Lumantek ez-LINE VM16 16 x 16 HD-SDI ROUTER
€2,250.00*
gross: €2,677.50
Lumantek ez-Line Router VM16
ez-Line Router VM16 is a 16 x 16 router supporting SD/HD/3G SDI signals.
Being able to send sharp and clear signals, the Lumantek VM16 can be a splitter and a selector. ez-Line VM16 has a few ways to control. One of the controllers is the RCP unit. You can install this unit along with the router to distribute your 16 signals to appropriate ports.
Software Control
Another function that ez-Line Router VM16 provides is the ability to control through computer software. The user can connect the router to a PC using an Ethernet cable and control through a software.
SDK & API for your application
If you need to modify the control to your needs, then LUMANTEK will provide SDK & API for you. Create your own commands to control ez-Line VM16.
Technical data
InputSDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x16Reference Input: B.B , TRI (BNC 75Ω ) x1OutputHD-SDI: SD/HD/3G-SDI (BNC 75Ω) x16ConnectionsRemote Control: RS-422 (RJ45)x1Ethernet: Ethernet Support (RJ45)x1Update : Debug (Micro-USB)x1ElectronicalPower Input : 100~240VAC @ 50/60HzPower Consumption: 18W(max.)PhysicalOperation Temperature: 0~40℃Dimension: 44(H) X 483(W) X 240(D) mmWeight: 2.0 kg
