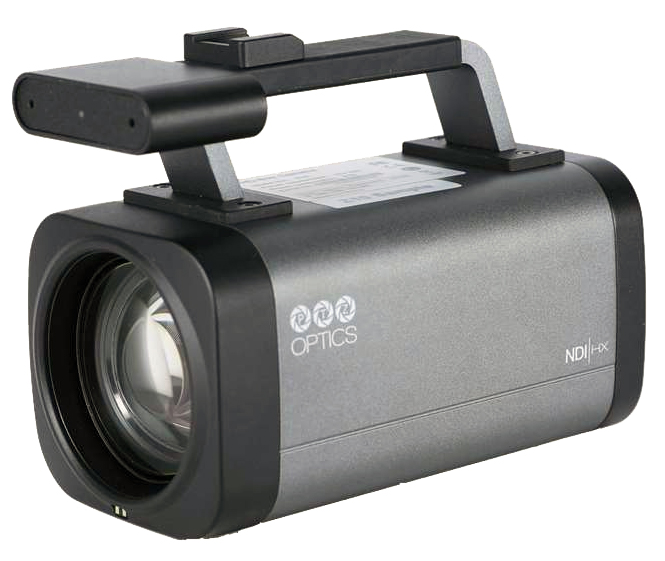

PTZOptics Studio Pro 12x Optical Zoom Box Camera

PTZOptics Studio Pro

The PTZOptics Studio Pro is a multi-functional box camera designed for content creation and livestreaming. This 1080P 60fps camera features a 12X optical zoom lens with a 72.5° field of view and a toggle for switching between landscape and portrait mode. The ultra-fast time-of-flight sensor allows the camera to focus moving objects very accurately. Moreover, users can switch between advanced focus settings for beautiful bokeh effects. This camera outperforms many DSLR cameras due to its multi-output capabilities. Simultaneous outputs include USB-C, HDMI, NDI®|HX, RTSP, RTMP.

Features

• Plug and Play USB-C Connection
• Precise Focus
• 72.5° Wide Angle Lens
• 1080P HD Image
• NDI®|HX
• HDMI 1.4b
• Standard Cold Shoe mount for A/V accessories Threaded 1/4-20 connection for A/V accessories
• 3.5mm audio input embeds audio into HDMI, USB-C, and IP video streams
• Supports Portrait & Landscape Mode
• 5-year warranty
• Photobooth capable

Camera+Lens

• Video Sensor 1/2.8 inch, CMOS Sensor. Effective pixels: 2.07M
• Resolution 1080P@60 / 50 / 30, 1080I@60 / 50, 720P@60 / 50
• Min. Illumination 0.5 Lux
• Lens 12X Optical Zoom, 16X Digital Zoom
• Horizontal Field of View 6.9⁰ ~ 72.5⁰
• Vertical Field of View 3.9⁰ ~ 44.8⁰
• Scanning Mode Progressive
• Horzantal & Vertical Flip /Image Freeze Supported
• LED Panel Light Color adjustment with warm/natural light and dimming range

Rear Board

• Audio AAC, 96 Kbps, 128 Kbps, 256 Kbps
• Protocols TCP/IP, HTTP, RTMP, ONVIF, DHCP, RTSP, NDI®|HX, Multicast, SRT
• Color System H.264 / H.265 / MJPEG / YUY2
• Video Format YUY2 (ISOC), H.264 SVC, MJPEG: Max. 1080p@60fps
• USB Video Communication Protocol UVC 1.5
• Video Bit Rate 32 ~ 102400
• Input Voltage 5V (USB Power), DC 12v, PoE(802.3af)
• USB-A Type A, Only supplies power to 3rd Party Devices
