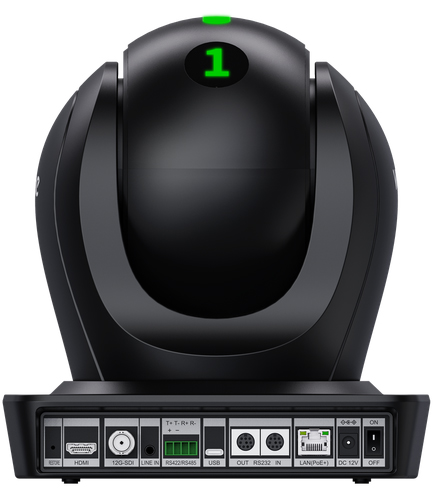

RGBlink 4K VUE NDI PTZ Camera 12x Optical Zoom

RGBlink 4K VUE NDI PTZ Camera

VUE 4K PTZ camera is designed for professional broadcasting. The 1600TVL resolution lens is equipped with an advanced ISP image processor and 8.51 million pixel sensor, providing ultra-clear 4K image quality. Supports 12X/20X optical zoom and a range of outputs from HDMI, 12G-SDI to H.264, H.265, and NDI. It can support a maximum pitch angle of -30°~+210°, truly achieving panoramic vision coverage. Ultra-wide dynamic range provides powerful color performance. VUE 4K has a unique TALLY indicator light and identification board, which can be seen from a 360° full viewing angle without fear of device switching. VUE 4K camera is suitable for any scene, including radio and television stage design, professional studios, corporate live broadcasts, character interviews, remote conferences, wedding hotels, outdoor live broadcasts, education and training, e-sports live broadcasts, church live broadcasts, etc.

NDI | HX2

Select vue models include NDI | HX protocol and capabilities, allowing vue cameras to be integrated directly into professional and broadcast workflows including to applications such as Premier Pro, Zoom and more

Zoom In

It provides two types of optical zoom lenses, 12X and 20X, equipped with a 1/1.8 inch (2) ultra-high-definition CMOS sensor, and further provides 16X digital zoom to realize what you see is what you get

TALLY Crown

Selected view models include the RGBlink vue TALLY Crown indicator light showing clearly stand-by and on-air status of the camera

Multi-Protocol Support

Output to HDMI, 12G-SDI, RTMP and RTSP, and optionally NDI and USB/UVC for maximum connectivity, in support of virtually any application requirement

12G-SDI and HDMI2.0 dual 4K output

The powerful video processing chip provides a strong guarantee for ProAV-level multiple outputs

AI tracking

Stable and accurate AI humanoid tracking, completely freeing your hands

Precise Position Control

High precision micro stepper motor controls to within 0.1 degrees. Reposition the camera and zoom to any position in under 1s, smoothly, accurately and super quietly. Advanced algorithms optimise imaging at every movement for precise blur-free performance

OLED Display

The super convenient OLED display shows you information such as IP address resolution and frame rate

Power of Convenience

Power vue cameras from supplied PSU or via the ethernet port for selected models connected on PoE enabled networks

Audio In

All vue models include 3.5mm mini-jack input, allowing Line level inputs to be inserted to all outgoing video signals including embedded on HDMI, SDI, NDI and other IP codecs

FreeD

Through the FreeD protocol that is compatible with mainstream 3D engines, the position data of the PTZ camera is sent to the AR/VR system, allowing virtual characters and display interactions to be perfectly interconnected, thereby achieving ultra-high cost-effective virtual production

Browser Config & Preview

Connect directly to a vue camera from any browser without the need to install a dedicated app. The web interface allows full configuration of the camera as well as preview of video, operations and control.
