RGBlink Aura UHD 24 Gen 2 24" broadcast 4K HDR monitor

RGBlink Aura UHD 24 Gen 2

This next generation 24" broadcast/grading 4K HDR monitor, equipped with UHD (3840×2160) screen, supports quad link 12G SDI signal up to 8K input backward compatible with 4K@60Hz, high-precision 3DLUT with tetrahedral interpolation algorithm, HDR formats such as SMPTE ST2084(PQ), hybridlog-gamma HLG, various Gamma curves, camera Log and other professional functions which are widely used in film, television and advertisement industry.

When you need high quality SDI monitoring for 4K or 8K video, RMS UHD series is the perfect choice. It comes with four 12G-SDI in- and outputs and supports up to 8K signal input. There are multiple possible configurations of input with two HDMI 2.0 inputs that support 4096x2160p and 3840x2160p up to 60p. Corresponding to the refreshrate of 60 frames per second, 4K audio and video transmission can be solved just over a single cable, reducing costs and ensuring high quality image, bringing you a new visual experience!

The 4K UHD LCD panel, with ultra high resolution and color depth up to 10bit displays 1.07B colors, that allow you to see a color performance you have never seen before providing more creative space for color grading. This UHD Monitor covers 100% Rec.709 and 98% DCI-P3 wide color gamut, presenting rich color and supports ITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, Native and other color gamuts. It offers a series of professional auxiliary monitoring tools, such as waveform, 3D-LUT, peaking filter, histogram, vector scope, audio meter, time code, image flip, etc. All these functions are easy to select and operate from the OSD menu.

FEATURES

• 12G-SDI /8K/4K HDMI Signal
• 4K IPS LCD Panel
• Professional On Set Monitoring Tools (eg ARRI/RED false color)
• Flexible and Intuitive Button Operation
• Accurate 3D LUT Color Calibration
• Support HDR waveform
• Multiple Screen Modes
• Improved intuitive control buttons
• SDR and HDR Image Comparison Function
• 12G-SFP Fiber Port
• USB-C (Thounderbolt) input Port
• Aluminum Alloy Frame
• Payload ID Automatically Read
• 3D LUT, Recreate Film Looks
• Dynamic UMD
• Three Color Tally Lights
• Professional Audio Meters

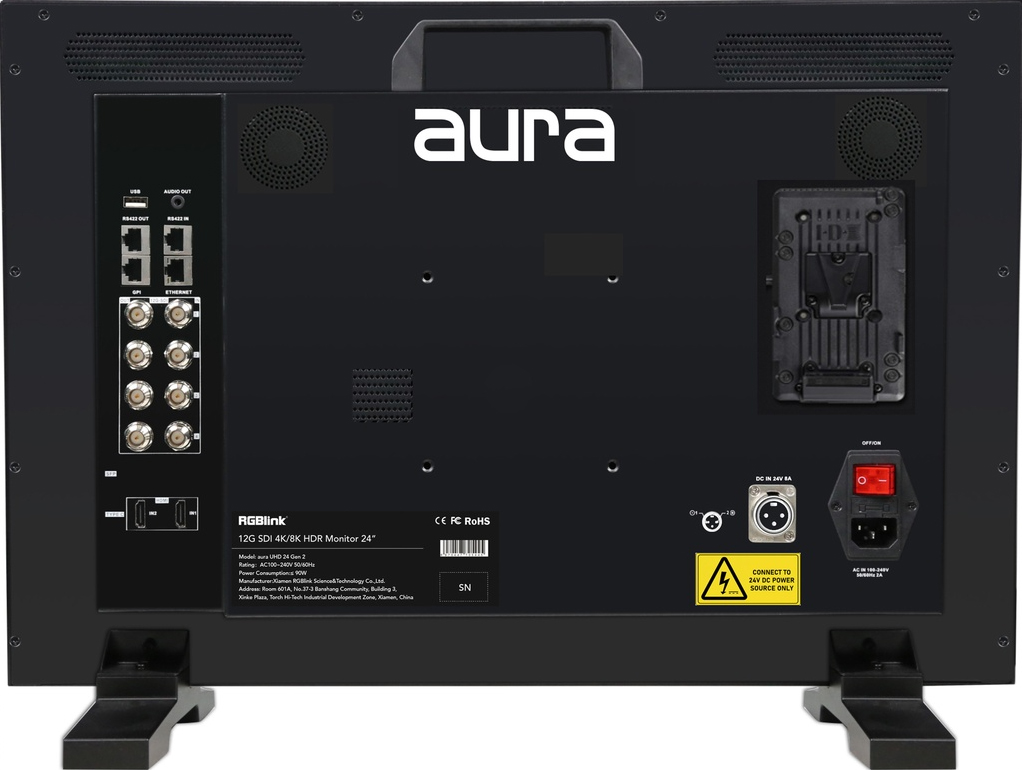

• Removable feet and handles on the back side
• 24V DC XLR power imput (V-Mount batter plate optional)
• VESA mounting points

TECHNICAL DATA

• Screen Size: 23,8"
• Brightness: 1000nit
• Color Depth: 10Bit
• Resolution: 3840x2160
• Aspect Ratio: 16:9
• Contrast Ratio: 1000:1
• Backlight: LED
• Responsetime: 9ms
• Viewing Angle: 178°
• Screen Gamut: 98% DCI-P3
• SDI Interface: 4x 12G-SDI (support 8K input)
• HDMI Interface: 2x HDMI 2.0
• Other Interface: 1x Type C, 1x SFP, 1x LAN, 1x GPI, RS422 In & Out
• Tally: Front
• 3D LUT: Tetrahedral interpolation, User LUT
• HDR: PQ + HLG
• EETF: Yes
• Still Image Detection: Supported
• Gamma: Gamma 2.0, 2.2, 2.4 & 2.6; SMTP ST 2084(PQ); ITU-R; BT.2100(HLG); S-Log3, Canon Log
• Camera Log: Sony, Canon, ARRI, DJI
• Gamut Comparison: SDR and HDR Image Comparison
• Gamut Warning: Yes
• Multi-View: Quad view, Quadview triple side, Quadvie triple bottom, PBP, PAP
• UMD: 3.1, 4.1, 5.0
• Monitoring Tools: Waveform, Vectorscope, Histogram
• Time Code: Yes
• Input Voltage: AC 100V~240V
• Power Consumption: Max. 90W
• Working Temperature: -10°C ~ 55°C
• Storage Temperature: -20°C ~ 60°C
• Size (LxHxD): 571,7 x 414,85 x 160mm
• Weight: 8,6 kg
