RGBlink TAO 1Mini-N 4K NDI Studio

Tip

€600.00*

gross: €714.00

Prices excl. VAT plus shipping costs

Available, delivery time: 1 day

Product number: SW26662

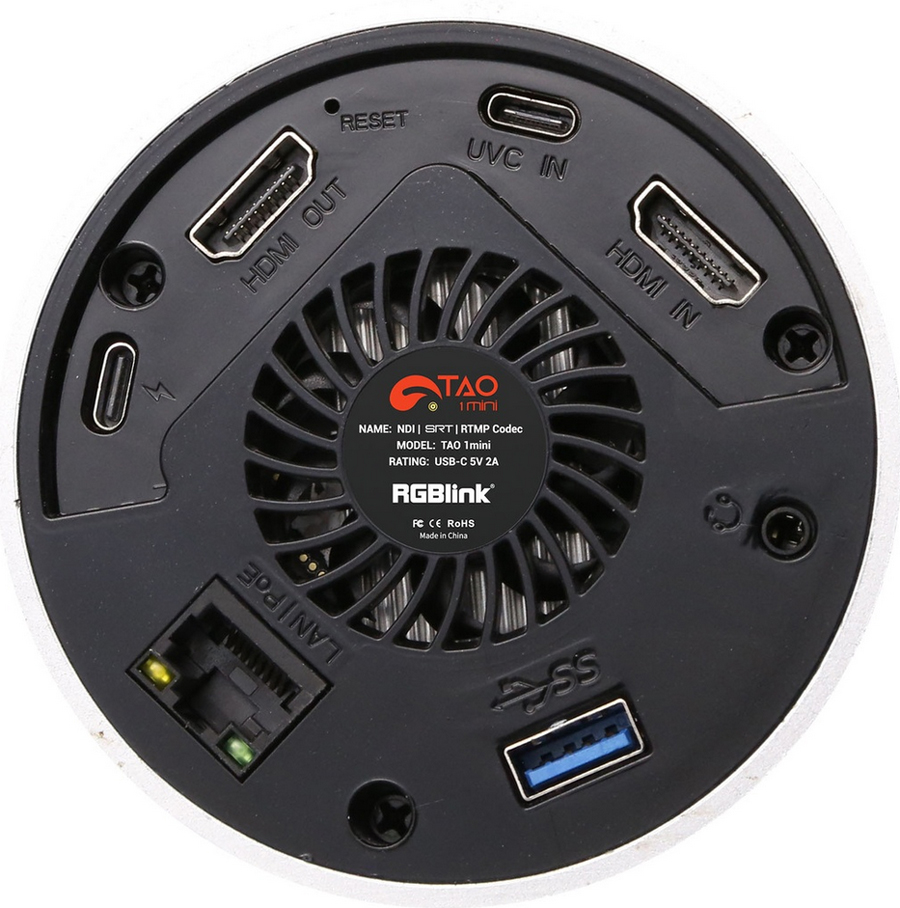

RGBlink TAO 1Mini-N

The TAO 1Mini is a universal encoder/decoder that creates and distributes professional AV streams on the network or retrieves streams from the network. It turns any camera with HDMI or USB output network-ready and ready for modern IP-based video workflows. Thanks to the modern NDI codecs, cost-effective latency-free video transmission over long distances is possible. It can also be used to upgrade high-quality PTZ cameras that only support NDI|HX2 to the latest NDI|HX3 or Full NDI codecs. In addition, the RGBlink TAO 1Mini handles direct streaming to popular video platforms.

Configuration

Configuration and control are done intuitively via touch on the 2.1" display, which also serves as a compact preview monitor for the video signals. The TAO 1Mini is integrated into the network via its LAN port, which supplies it with power via PoE (Power over Ethernet). Due to two ¼ inch threads, it can be securely mounted on cameras, tripods or in the studio; a mini tripod is also included.

Input signals

IP streams such as Full NDI, NDI|HX2, NDI|HX3 or RTMP can be received via network connection. The TAO 1Mini can alternatively receive video signals via its HDMI or USB-C UVC input, or read recordings with the H.264 codec from USB storage devices. Additionally, it has a 3.5mm jack for external audio signals, where a delay of up to 160ms can be set. It can be paired with smartphones via Bluetooth to receive videos as RTMP stream from smartphone cameras via its local WiFi hotspot. The required app can be easily installed by scanning the QR code on the smartphone.

Encoder: Flexible formats and protocols

The TAO 1Mini supports a wide range of encoding formats such as H.264, H.265, Full NDI, NDI|HX2 and NDI|HX3 as well as SRT, RTMP, RTMPS or RTSP protocols at up to 80 Mbit/sec. The resolution and bit rate of the output stream can be adjusted according to demand or available bandwidth.
Alternatively, up to 32 streams can be simultaneously streamed directly to popular portals such as Youtube, Facebook or Twitch without the need for a PC.

Outputs

All signals from the TAO 1Mini can be output via the HDMI output to controlmonitors or to large displays and projectors in various resolutions up to 4K. The 3.5mm audio jack allows you to connect an audio monitor or headphones. When using a TRRS adapter cable with one 3.5mm plug and two 3.5mm jacks (not included), a microphone and headphones can be used simultaneously.

Other features

The 2.1" round display with its touch control provides a simple preview image with max. 480x480 pixels and 350nita. 5 LEDs in red, green or blue on the side signal the tally status of connected cameras. The USB 3.0 port can record and playback videos in H.264 codec up to 64 Mbit/sec via external USB storage. The quiet fan can be controlled automatically or manually. Firmware updates for upcoming features make the TAO1 future-proof, they can be easily installed via USB memory.

Related links of the manufacturer

Further products by RGBLink

Accessory Items

Tip

RGBlink TAO 1Mini-HN FHD NDI Studio

RGBlink TAO 1Mini-HN The TAO 1Mini is a universal encoder/decoder that creates and distributes professional AV streams on the network or retrieves streams from the network. It turns any camera with HDMI or USB output network-ready and ready for modern IP-based video workflows. Thanks to the modern NDI® codecs, cost-effective latency-free video transmission over long distances is possible. It can also be used to upgrade high-quality PTZ cameras that only support NDI|HX2 to the latest NDI|HX3 or Full NDI codecs. In addition, the TAO 1Mini handles direct streaming to popular video platforms. Features Small and compact, easy to carryServe as either NDI video encoder or NDI decoderSupport multiple formats, including RTMP/RTMPS/RTSP/SRT/FULL NDI/NDI | HX3/NDI | HX2/ NDI | HXStream to at least 4 platforms at the same timeLow latency of end-to-end transmission Intuitive touch control, higher color and image qualityPower from USB-C or PoE networkDual 1/4in mountsLED TALLY indicators

€300.00*

gross: €357.00

RGBlink Mini V2

RGBlink Mini V2 SKU: MINIV2 The Mini V2 is a sophisticated multi-format video mixer that is easy and intuitive to use. Fade seamlessly between the four HDMI inputs and send the signal to the HDMI or the dedicated USB 3.0 output. The RGBlink Mini V2 is ideal for live streaming applications and presentations with multiple video sources. It already has integrated transition effects and external audio embedding on board, as well as integration support for UVC PTZ cameras and more. The large buttons make it easier to use, and the T-bar allows you to achieve smooth transitions between the video signals. It is compact and can be used anywhere. Thanks to the 1/4 '' UNC accessory mount, the Mini V2 can also be used in studio environments without any problems. RGBlink's advanced hardware-based video processing engine supports scaling and the full 4: 4: 4 color space for optimal visual output.Preview of the sources and the program stream via the LCD display directly on the device.The HDMI-Output can be used to display the 4 input channels, the program stream and the stream for the next transition on an external additional monitor in a multi-view. Alternatively, or output the program stream only to connect e.g. a display or a projector. Features USB 3.0 live-streaming PortCompact designLive-preview for all 4 inputsSeamless switchingAuto and manual switching6 Transition effectsPIP (Picture-In-Picture)Control Remote AppOBS Studio Support Technical data nputI: 4x HDMI-AOutput: 1x HDMI-A, 1x USB Type AAudio: 1x 3.5mm Stereo Jack Input/OutputNetwork: 1x RJ45 LANPower: External USB-C PSU, max 18WWeight: 480gSize: 180 x 118 x 58mm In the box 1 x Mini V21 x USB-C Powersupply w. cable1 x USB 3.0 cable

€190.00*

gross: €226.10

Tip

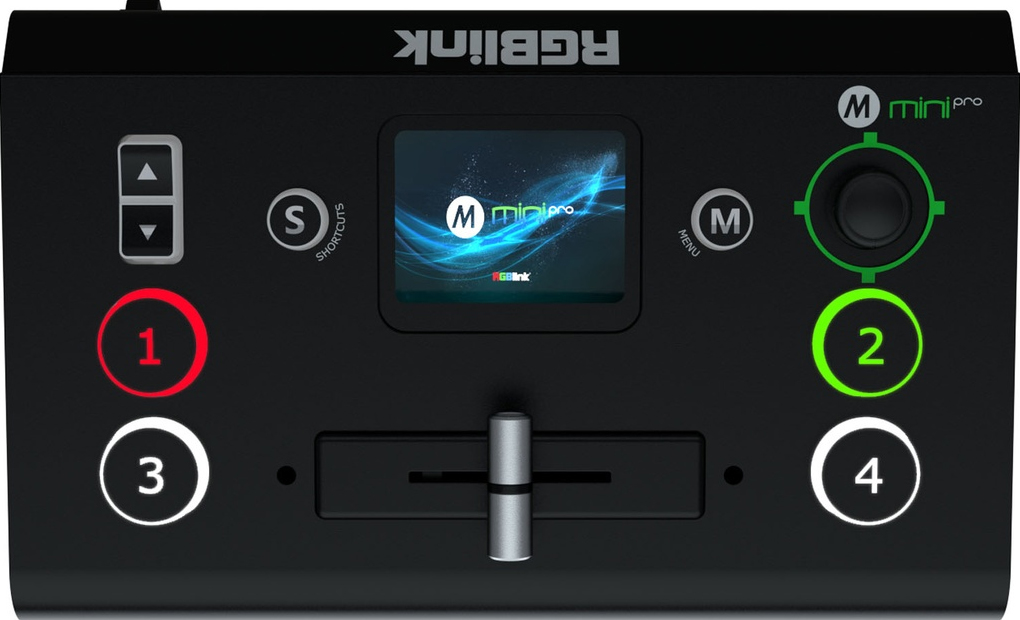

RGBlink Mini Pro V2
