RGBlink VUE PTZ Camera 20x Optical Zoom

RGBlink VUE PTZ Camera 20x Optical Zoom

SKU: RGB20X-POE-TLY

The RGBlink VUE PTZ Camera 20x Optical Zoom is a professional broadcast PTZ camera in a sleek black design with a tally LED light on top. With its fast, silent rotation and zoom function, it is ideal for smaller productions, live events or in the education sector. Video output is via HDMI, 3G-SDI, USB 2.0 or IP streaming via network at up to 1080p60. Even in low-light conditions, it delivers top-notch image quality with rich colors thanks to dynamic noise reduction. The lens' high zoom factor and intelligent, fast autofocus allow for sharp distance shots.

Features

• High image quality with dynamic noise reduction in low light conditions
• High-speed optical zoom
• Full HD resolution with up to 60 frames/sec simultaneously on all video outputs
• Embedded audio in HDMI, SDI and network streams
• H.264/H.265 dual streaming with all relevant network protocols
• Tally LED light on top
• OSD menu with manual IP entry/DHCP activation via remote control
• Administration via web browser
• PTZ camera control via VISCA or Pelco protocols
• Power supply via PoE
• Power saving sleep function with parking position of lens vertically downwards
• 1/4" tripod thread on the bottom side
• Suitable for wall or ceiling mounting (accessories not included)

Technical data

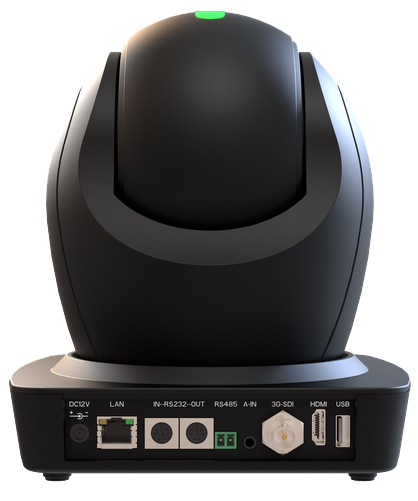

• Output 3G SDI 1xBNC
• HDMI 1xHDMI-A +USB 1xUSB-A
• LAN 1xRJ45
• Audio IN 1x3.5mm Stereo Jack
• Control RS232 IN/OUT 2xDIN8
• RS485 1x4pin Terminal
• Power 1xDC12V Jack

• Video format 1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 1080P59.94 1080I59.94 1080P29.97 720P59.94
• Camera 20X
• Optical Zoom f＝5.05～91.50mm
• View Angle 3.45°～ 60.04°
• AV F1.8 ～ F2.9
• Digital Zoom 10X
• Minimum Illumination 0.5Lux (F1.8, AGC ON)
• DNR 2D & 3D DNR
• White Balance Auto/Manual/One Push/3000K to 7000K(selectable)
• Focus Auto/Manual
• Aperture/Electronic Shutter Auto/Manual
• BLC ON/OFF
• WDR OFF/Dynamic Level Adjustment
• Video Adjustment Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
• SNR >55dB
• Effective Pixels 2.07m,16:9

• Pan/Tilt Movement -170°～+170°/'-30°～+90°
• Pan/Tilt Control Speed 0.1～60°/S；0.1～30°/S
• Preset Speed/Quantity Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)
• 360° TALLY full 360° view of TALLY
• Audio Compression Format AAC | MP3 | G.711A
• Video Compression Format H.264 | H.265 | Dual Streaming Output
• Output Resolutions 1080p60/59.94/50/30/29.97/25 | 1080i60/59.94/50 | 720p60/59.94/50
• Control Protocol VISCA | Pelco-D | Pelco-P
• Baud Rate(bps) 115200 | 9600 | 4800 | 2400bps
• Network Protocol RTSP | RTMP | ONVIF | GB/T28181 | VISCA
• Supported Standards SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI

• Input Voltage DC12V/1.5A
• Max Power 12W

• Temperature -10℃～50℃
• Humidity 20%～80%

• Weight Net 1.7kg
• Dimension Net 180mm(front)×188mm(side)×198mm(height)
