Seetec ATEM156S 15.6" HDMI/SDI Multiview Monitor
slide 3 of 2
Product number:
SW28036
Manufacturer:
seetec
Manufacturer product number:
ATEM156S
Delivery time:
3-5 Tage

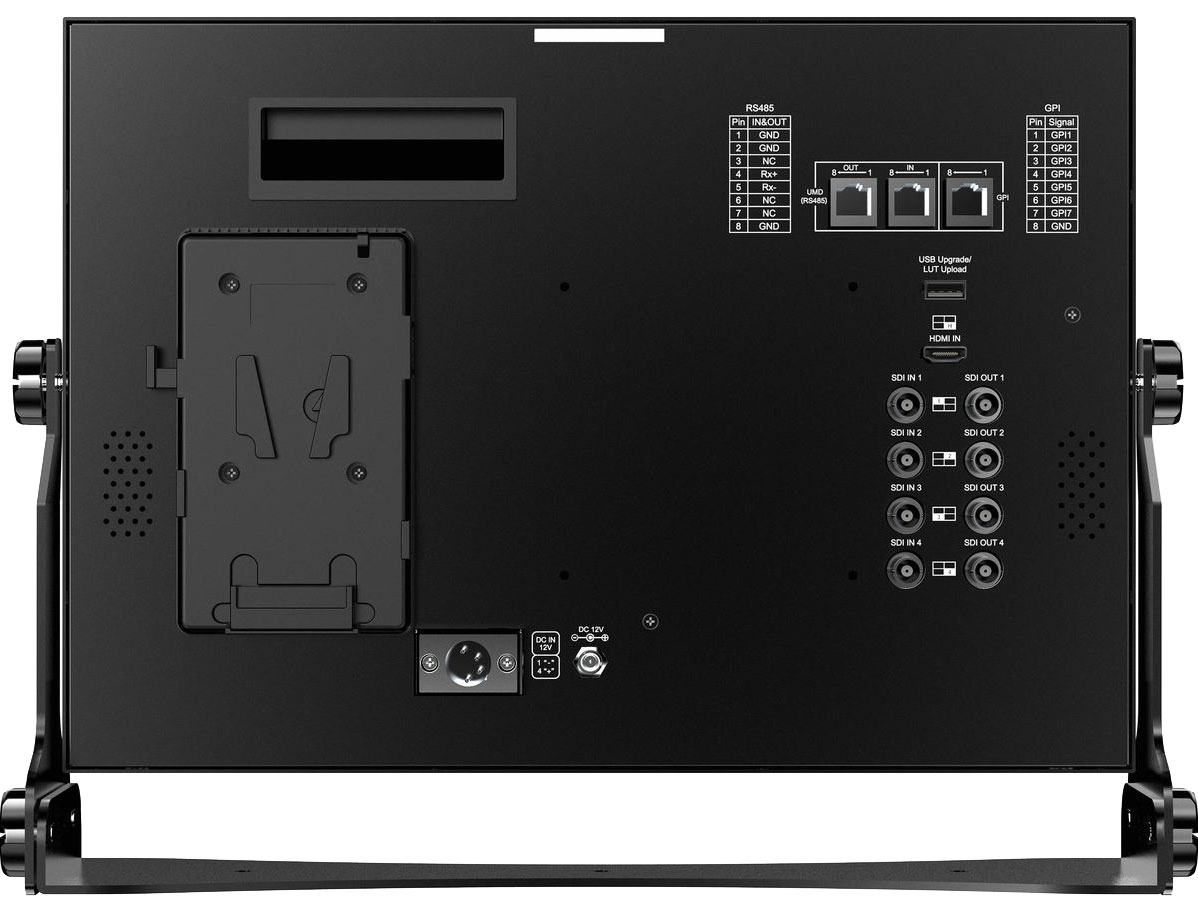

Seetec ATEM156S
The ATEM156S is the HDMI/SDI variant of the popular ATEM156 HDMI multiview monitor for (not only) ATEM switcher. The "S" version offers 4x 3G-SDI inputs/outputs in addition to the HDMI input and is therefore the ideal complement to e.g. ATEM SDI/SDI Pro/SDI Extreme ISO switchers. Of course, the Quad View function is available to display all four SDI inputs.
- Display 15.6" (39.6 cm) IPS LED, 1920x1080, 16:9, 141 ppi, 800:1, 200 cd/m², Rec.709
- Inputs: 4x BNC (3G-SDI), 1x HDMI, 1x USB-A 2.0, 1x RJ-45 (GPI), 1x RJ-45 (RS-485)
- Outputs: 4x BNC (3G-SDI), 1x 1/8"/3.5mm headphone jack, 1x RJ-45 (RS-485)
- Supported HDMI formats: 1080p (60/59.94/30/29.97/25/24/23.98), 1080i (60/59.94/50), 720p (60/59.94/50), 576p, 576i, 480p, 480i
- Supported SDI formats: DCI 2K (60/59.94/50/30/29.97/25/24/23.98), DCI 2Ki (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080PsF (24/23.98), 720p (60/59.94/50/30/29.97/25/24/23.98), 576p, 480p
- Power: 12V= (12-24V= / ≤21W), V-Mount battery plate
- VESA mounting elements 100x100 mm, 75x75 mm
- Durable aluminum body
- Display modes QuadView, PIP/PBP Dual View
- Features for focus assist, 3D LUT correction (up to 36 presets), zoom, Pixel-to-Pixel, anamorphic modes, RGB histogram, false color, etc
- Dimensions 372x262x28.4 mm (without accessories 372 x 262 x 28.4 mm)
- Weight 1.57 kg (without accessories 1.81 kg)
Details of the manufacturer
- Zhangzhou Seetec Optoelectronics Technology Co., Ltd
- No.76th, Xianjing Road, Jinfeng Development Zone, Zhangzhou, Fujian, China
0086-596-2672627
Details of the person responsible for putting the product on the European market
- TB EC REP EUROPEAN SL
- Calle Marcelo Usera 60
- LC. Madrid 28026, Spain
