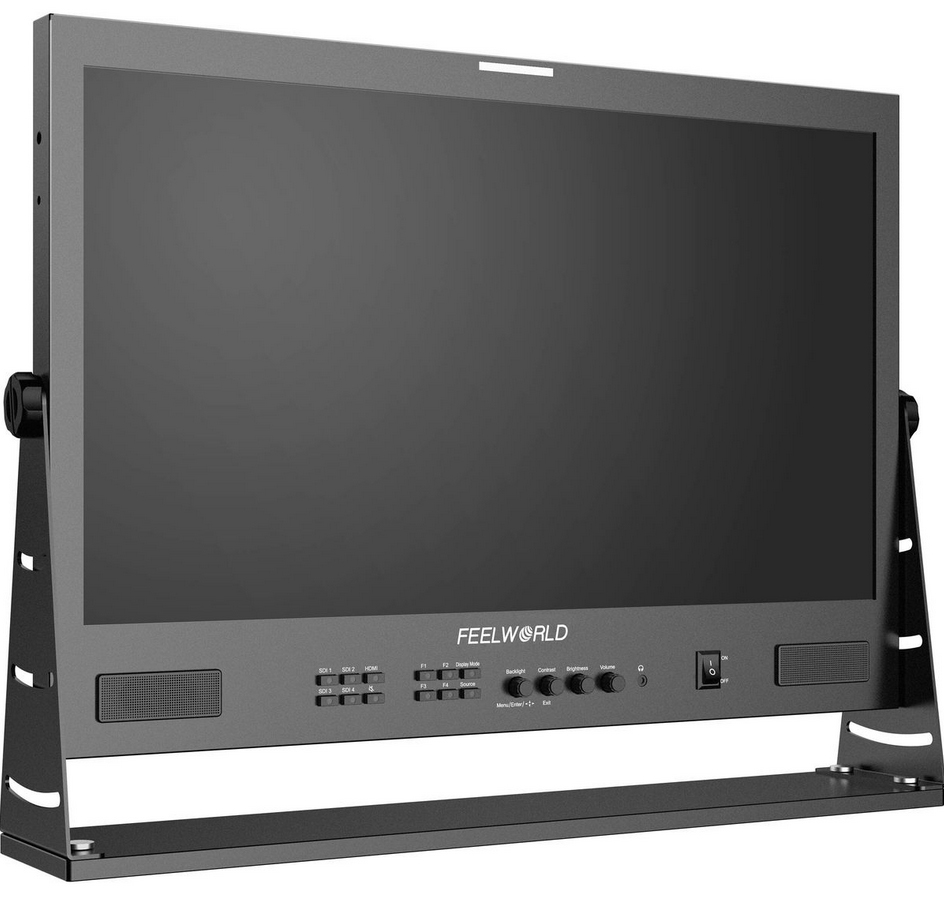

seetec ATEM215S 21.5-inch Multiview Monitor HDMI/SDI
Product number:
SW27611
seetec ATEM215S
Large 21.5" variant of the Feelworld/Seetec ATEM switcher quad-view displays! The "S" versions of these monitors offer 4x 3G-SDI inputs/outputs in addition to the HDMI input and are therefore ideal additions to e.g. ATEM SDI/SDI Pro/SDI Extreme ISO switchers. Of course, the Quad View function is available to display all four SDI inputs.
- Display 21.5" (54.6 cm) IPS LED, 1920x1080, 16:9, 102 ppi, 1000:1, 250 cd/m², Rec.709

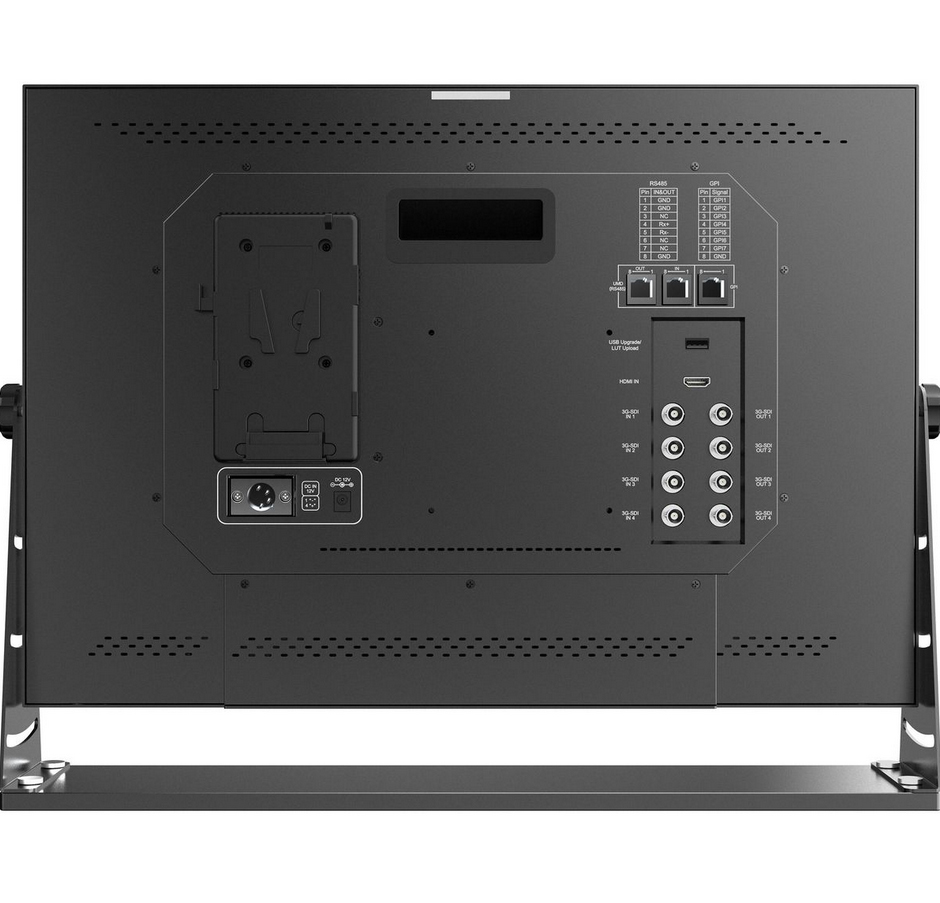

- Inputs: 4x BNC (3G-SDI), 1x HDMI, 1x USB-A 2.0, 1x RJ-45 (GPI), 1x RJ-45 (RS-485)
- Outputs: 4x BNC (3G-SDI), 1x 1/8"/3.5mm headphone jack, 1x RJ-45 (RS-485)
- Supported HDMI formats: 1080p (60/59.94/30/29.97/25/24/23.98), 1080i (60/59.94/50), 720p (60/59.94/50), 576p, 576i, 480p, 480i
- Supported SDI formats: DCI 2K (60/59.94/50/30/29.97/25/24/23.98), DCI 2Ki (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080PsF (24/23.98), 720p (60/59.94/50/30/29.97/25/24/23.98), 576p, 480p
- Power: 12V= (12-24 V= / ≤37 W; 1x XLR4p, 1x hollow con.), V-Mount ac.
- VESA mounting elements 100x100 mm, 75x75 mm
- Display modes QuadView, 1P, 2P LR, 2P TB, 2P PIP, 4P
- Functions for focus assist, zoom, Pixel-to-Pixel, anamorphic modes, RGB histogram, false color, etc.
- Dimensions 51.16 x 35.56 x 2.33 cm, weight 4.27 kg, without accessories
