SEETEC P215 PRO-CO 21.5 inch High Bright Broadcast Monitor
Product number:
SW28109
SEETEC P215 PRO-CO
SEETEC P215 PRO-CO 21.5 inch 1000nit High Bright Portable Protective Broadcast Monitor Full HD 1920x1080

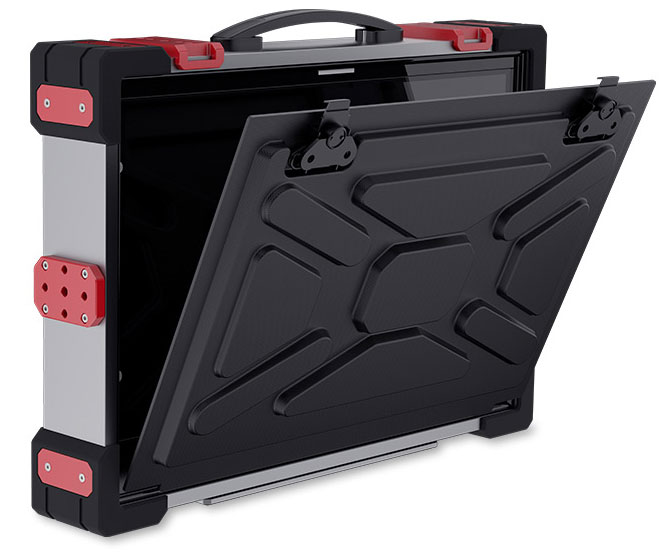

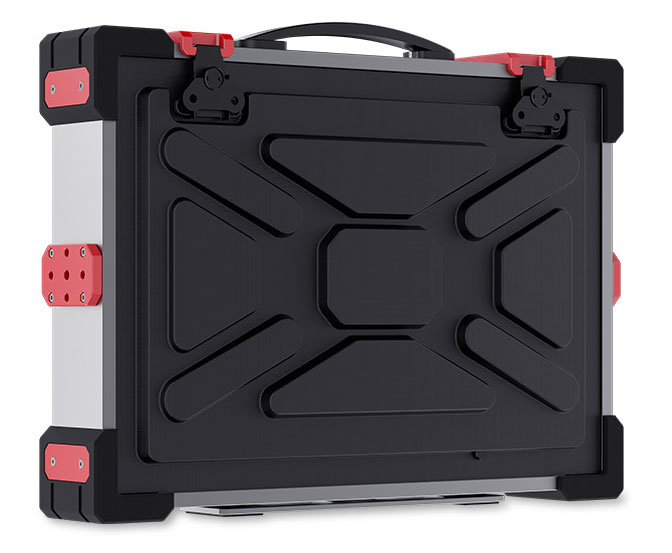

SEETEC P215 PRO-CO comes with a brand new portable protective case, which is thinner, lighter, and better protection as its biggest advantage. Not only that, the P215 PRO-CO also has a 1000nit high brightness full HD screen and a series of camera auxiliary functions. Can easily handle various environments outdoor shooting.
Key Features
- 21.5-inch 1920x1080 full HD large screen,view details with confidence
- Portable protective case, easy to handle various tasks
- 1000nits high brightness, ideal choice outdoor shooting
- Intuitive buttons operation, 4 custom function shortcut buttons to improve work efficient
- Custom 3D-LUT, preview film look
- Support 4K@60 HDMI Input and Output
- Under HDMI signal the audio meter level can be display max 8 channels; under SDI signal can be display max.16 channels
- HDR monitoring, what you see is what you get
- Built-in front and rear Tally light, enhance team cooperation
- The top, left, and right side of the protective case are equipped with 1/4 "and 3/8" screw threads, which can be used to install video transmission or other devices
- Stereo Earphone output
Technical data
Display Spec
- Model: P215 PRO-CO
- Screen Size: 21.5" IPS
- Color Depth: 16.7M
- Resolution: 1920×1080 pixels
- Pixel pitch: 0.24795(W) x 0.24795(H) mm
- Aspect Ratio: 16:9
- Brightness: 1000cd/m²
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)

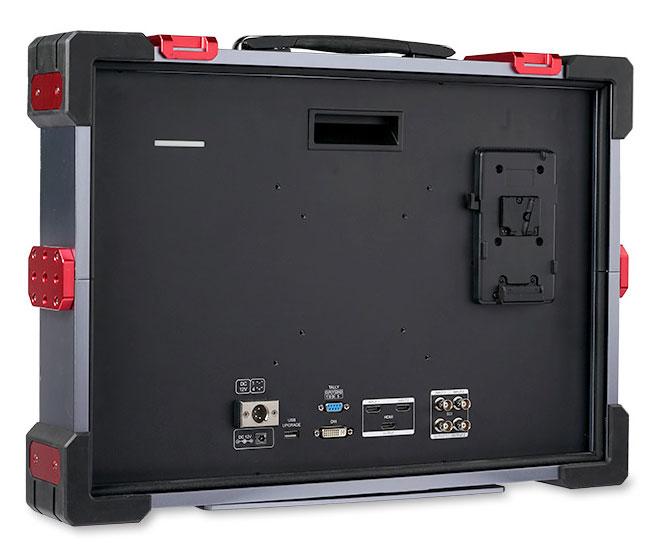

Input
- 2X SDI 3G-SDI
- 2 X HDMI HDMI-A
- 1 X DVI DVI-I
- 1 X Tally 9 pin
- 1 X USB USB (upgrade and LUT import)
Output
- 2 X SDI 3G-SDI
- 1 X HDMI HDMI-A
Audio
- Audio: Stereo Headphone, Speaker
SDI Support Format
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
HDMI Support Format
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 4K 3840×2160p (60/50/30/29.97/25/24/23.98Hz
- 4K 4096×2160p (60/50/30/29.97/25/24/23.98Hz
General
- Input Voltage: DC 12V
- Power Consumption: ≤44W
- Working Temperature: 0°C~50°C
- Storage Temperature: -20°C~60°C
- Unit Size: 553.5×394.5×115mm
- Unit Weight: 9.25kg
