seetec SC173-HD-56 HDMI 17.3 inch Pull-out Rack Monitor

SEETEC P173-9HSD-RM The 17.3" 4K Rackmount Broadcast Monitor from SEETEC features a 1920 x 1080 display and supports up to UHD 4K30 signals. It offers HDMI, 3G-SDI, and analog inputs and outputs, RCA audio inputs, and a tally port. These connections are provided on the rear panel along with an integrated V-mount battery plate and 4-pin XLR and barrel power inputs. A headphone jack, built-in speakers, 3-color LED tally light, and control and function buttons are provided on the front. This rackmount version comes with rack ears with built-in handles on the front. The monitor's image analysis functions include peaking focus assist, zoom, and pixel-to-pixel, and these are assignable across the four front-panel function buttons. Key Features 1920 x 1080 resolution displaySupports up to UHD 4K30 signalsHDMI, 3G-SDI, component BNC, composite BNC, DVI, and RCA audio inputsHDMI, 3G-SDI, component BNC, composite BNC outputs178 / 178° viewing angleColor depth: 16.7 million colorsTally portBuilt-in red/green/yellow LED tally indicators3.5mm stereo headphone jackBuilt-in speakersIntegrated V-mount plate300 cd/m² brightness4-pin XLR and DC barrel power ports Image Analysis Functions Peaking focus assistCheck fieldCamera modePixel-to-pixelCenter markerSafe marker (80, 85, 90, 93, 96, 2.35:1)Image flip (horizontal, vertical, and horizontal and vertical)Image freezeZoom allU/D and L/R zoom

Lilliput RM-1730S The LILLIPUT RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60. It provides a brightness rating of 300 cd/m2, a contrast ratio of 700:1, and viewing angles of 178°. The monitor comes with a host of functions including cross conversion, timecode, pixel zoom, vectorscope. Technical data Display Size: 17.3”Resolution: 1920×1080Brightness: 330cd/m²Aspect ratio: 16:9Contrast: 700:1Viewing Angle: 178°/178°(H/V)Video InputSDI: 1×3GHDMI: 1xHDMI 1.4DVI: 1LAN: 1 Video Loop Output （SDI / HDMI cross conversion） SDI: 1x3GHDMI: 1xHDMI 1.4 Supported In / Out Formats SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 Audio In/Out (48kHz PCM Audio) SDI: 12ch 48kHz 24-bitHDMI: 2ch 24-bitEar Jack: 3.5mmBuilt-in Speakers: 2 Power Operating power: ≤32WDC In: DC 10-18V Environment Operating Temperature: -20℃~60℃Storage Temperature: -30℃~70℃ Other Dimension(LWD): 482.5 mm x 44 mm x 507.5mmWeight: 8.6kg (with case)

Seetec P173-9HSD-CO 17.3" Aluminum Design 1920x1080 Carry-on Broadcast Director Monitor with 3G-SDI HDMI AV YPbPr SEETEC new generation of Carry-On Monitor can be considered a breakthrough and another step up. Variety of sizes available, 17.3'', 21.5'', 23.8'', 28''. A new concept of industrial design takes the structure and space usage of this monitor to an exterme. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through. 1920X1080 Full HD Panel With the P173-9HSD-CO's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD-CO's Full HD Panel is the tool of choice for high quality color reproduction Innovation OSD Operation P173-9HSD-CO not only set up four "F key" for peaking focus asist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling. Multiple Inputs and Outputs Multiple input formats meet the needs of the professional input and display functions with all HD, SD, analogue video signal inputs. The monitor comes with 3G HD-SDI, HDMI, Composite, and Component input and ouput. P173-9HSD-CO has both HDMI and SDI in and out, to allow it not only display live signals, but also send them out to other monitors simultaneously. It's able to display live picture on multiple displays at the same time while it still maintains the original. video quality.

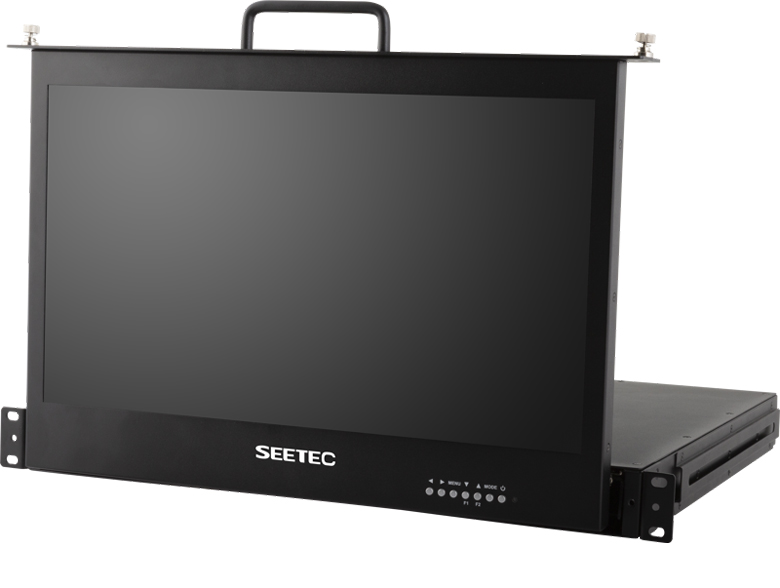

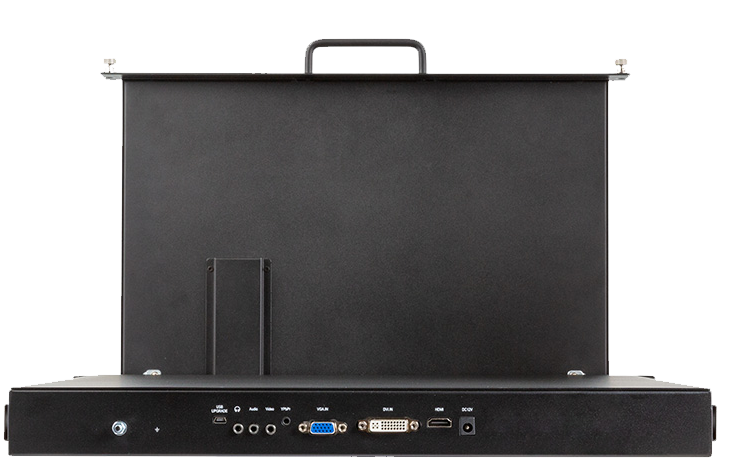

seetec SC173-HD-56 SDI SKU: SC173-HD-56 SDI seetec SC173-HD-56 SDI is 17.3" 1RU Pull-out Rack Mount Monitor offering broadcast monitoring for live production, broadcast and post production. The perfect rack mount monitoring solution for broadcasters. The metal housing SC173-HD-56 SDI boasts a crisp 17.3" IPS display panel with 1920x1080 resolution. It has a host of inputs including 3G-SDI BNC, HDMI, DVI, VGA, YPbPr, Video, and Audio making it a perfect fit for any broadcast or live event production. For added stow-and-go convenience, the SC173-HD-56 is designed with 1RU rack drawer design for rack mounting or as a stand alone unit. It an be folded down and slid into rack drawer to save space or to transport. It has multiple functions to help monitoring, including focus assist, image zoom, center marker, screen marker, image freeze, check field etc. This innovative drawer monitor is a cost-effective "all-in-one" solution for broadcast, post production, on set monitoring, broadcast trucks and more! Product Features Full HD 1920x1080 Resolution1RU pull-out rackmount DesignRack-Mountable or Stand AloneSpace Saving & Portable with Handle2 Adjustable Function ButtonsMetal Housing ProtectionAdvanced Monitoring Tools Technical data Display: 17,3 Touch Screen: No Input: YPbPr, VGA, HDMI, DV-I, Audio, 3G-SDI  Resolution: HD
