SHAPE HOT SWAP V-MOUNT POWER BOX BATTERY 14.4V 36Wh

€450.00*

gross: €535.50

Free shipping

Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.

Product number: SW28361

Manufacturer: Shape

EAN: 629266104132

Manufacturer product number: SHAP

Delivery time: 10-14 days

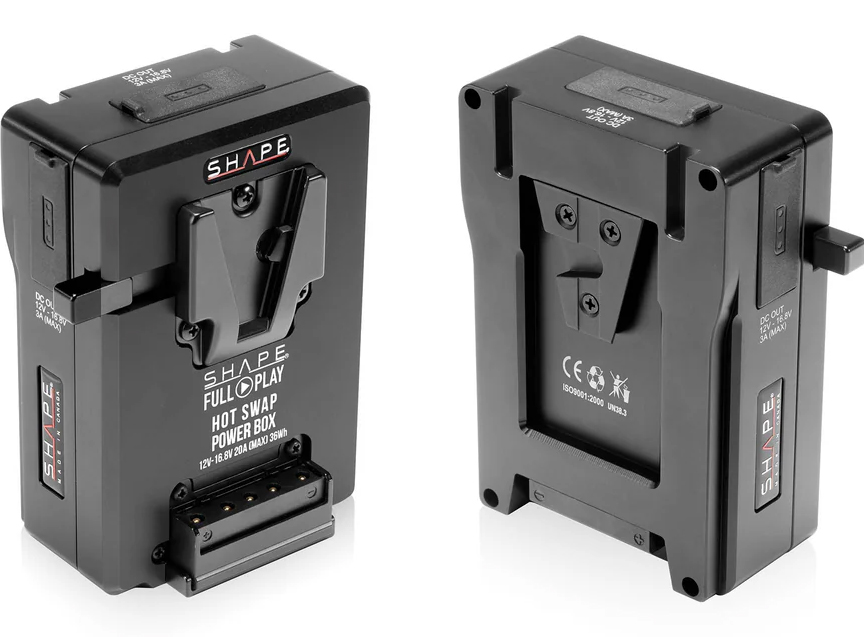

SHAPE HOT SWAP V-MOUNT POWER BOX BATTERY 14.4V 36Wh

SKU: HSP36

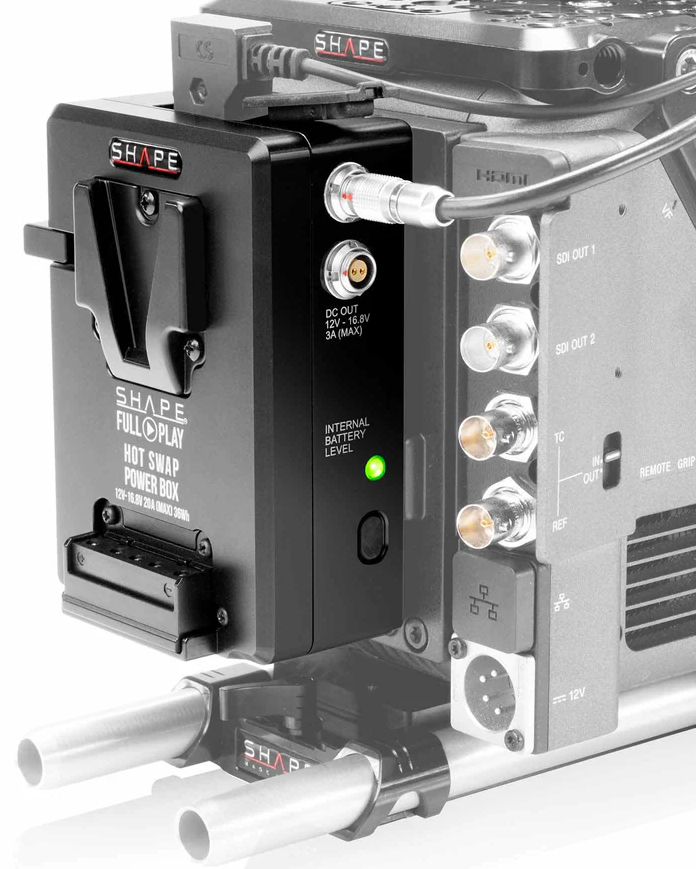

SHAPE is a Hot Swap V-Mount Power Box battery, designed for uninterrupted power supply. Its main goal is to maintain power to the camera, during a battery switch. It will prioritize external batteries for power supply while simultaneously charging the internal battery.

Featuring high-precision monitoring, it includes a built-in high-precision voltage detection circuits and delay circuits to monitor voltage, current and temperature, ensuring the safety of the battery pack and extending its lifespan. To ensure the consistency of its cell voltages, SHAPE designed an integrated balancing switch. To enhance its system safety, a low temperature charging protection and under-voltage load lock functions are included.

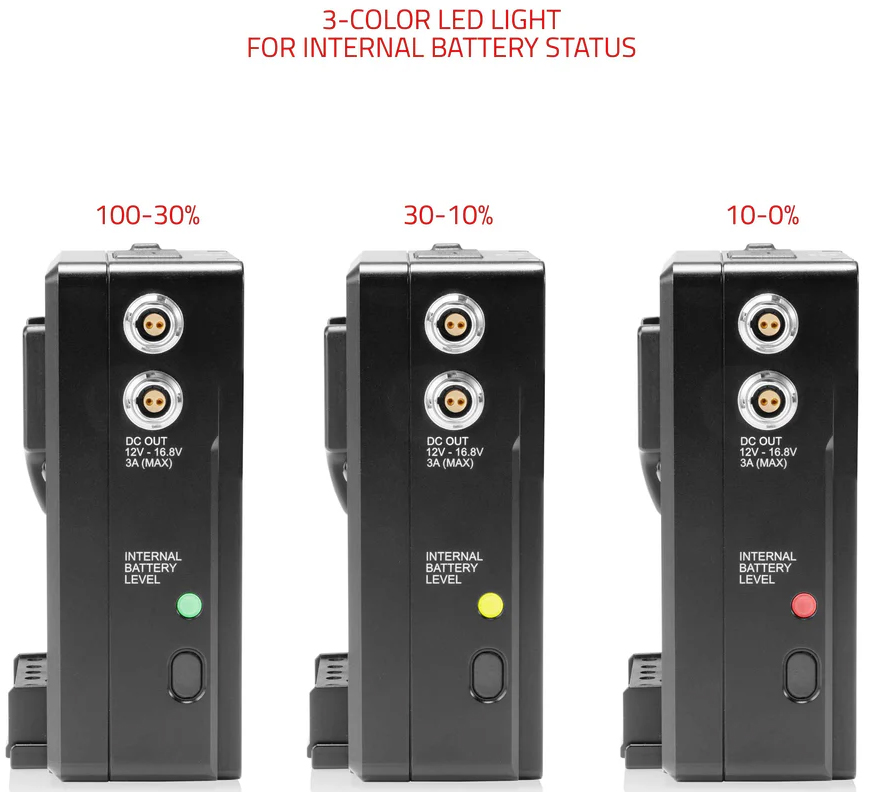

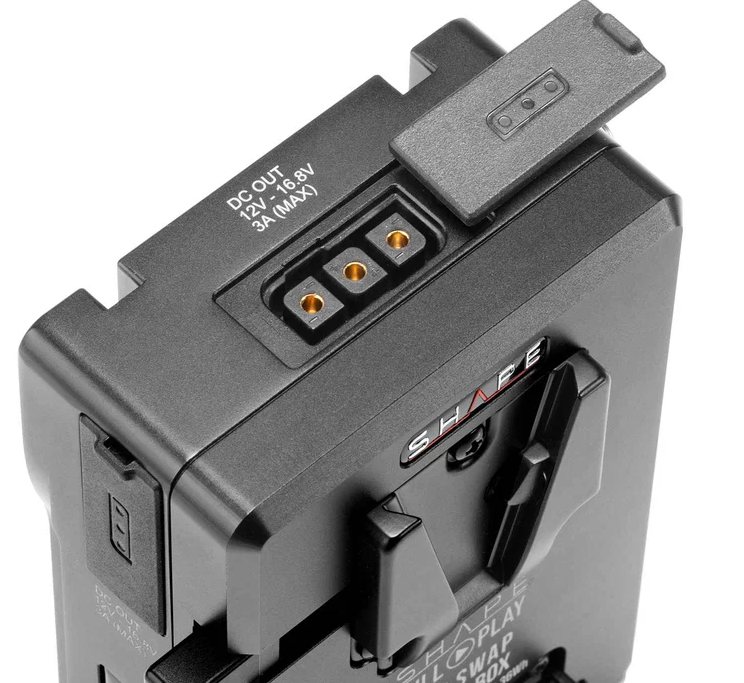

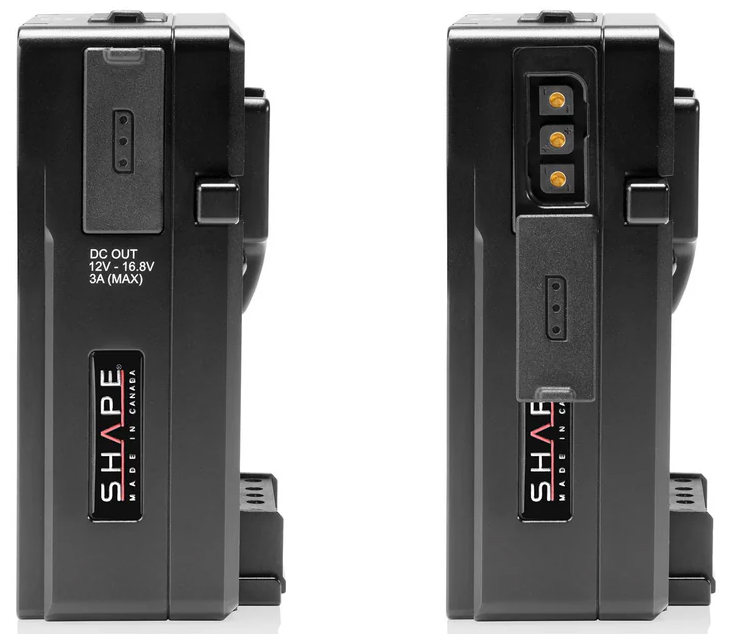

This Hot Swap Power Box includes two Twist D-tap and two LEMO 2-pin ports to provide power to additional accessories. To see its internal battery level, a 3-color LED light system will show you a red, yellow or green light. SHAPE’s Hot Swap Power Box has a 2-year limited warranty against all manufacturer defects.

SPECIFICATIONS

Rated Capacity: 2500 mAh, 36Wh
Nominal Voltage: 14.4V
Voltage Range: 12-16.8V
Charging Voltage: 16.8V
Charging Current: 3.5A (Max)
Discharge Current: 20A (Max)(Total)
Main BP Output: 12-16.8V, 20A (Max)
Twist D-tap Output: 12-16.8V, 3A (Max)
LEMO 2-pin Output: 12-16.8V, 3A (Max)
Operating Temperature: -40°~50°C
Storage Temperature: -20°C~45°C
Operating Humidity: 90-95% (Max)
Storage Humidity: <70%
Dimensions: 112 x 87 x 51 mm
Weight: 550g

Details of the manufacturer

SHAPE
1953 rue Patrick-Farrar
Chambly Quebec, J3L 4N7, Canada

1 450 447-4444

https://www.shapewlb.com/pages/contact

Details of the person responsible for putting the product on the European market

Riwit GmbH
Wolfgang Seidel
Im Gewerbepark A70
93059 Regensburg, Germany

+49 941 20 000 520

office@riwit.eu

Similar products

BlueShape MVQUICKAL Battery Hot Swap system for ARRI ALEXA

BlueShape MVQUICKAL Battery Hot Swap system for ARRI ALEXA MVQUICKAL is a hot-swapping and digital communications interface, with the same features of MVQUICK, to be installed permanently on the back of ALEXA. The main purpose of this device is to allow battery replacement without power interruption to the camera through an automatic detection of the battery removal. Best used with BLUESHAPE V-lock batteries, it acts as a digital communication interface allowing direct communication of the battery runtime parameters to the LCD and viewfinder. Additionally, BlueShape MVQUICKAL provides an alternative power source of about 21Wh to be used as UPS in case of a sudden power failure or extended power requirements. MVQUICKAL Specifications About up to 8~10 minutes runtime when used standalone as an UPS backup batteryInstallable on the back side of ALEXA®Self charging through the installed battery, can be charged with a separate charging unitAllow data communication from battery to camera: the state of charge is displayed to the userNEW: enhanced contact protection for safer air transport In the box 1 x MVQUICKAL1 x ACDC Charging Unit1 x Screw set Technical data Nominal Voltage 14.8VVoltage range 10.8V ~ 16.8VNominal Capacity 1.5Ah, 21WhMax. discharge current 10ASize 142 mm x 83 mm x 55mmWeight 0.55Kg1. LED indicators showing state of charge of internal battery2. Push button for capacity check3. Installation interface for external V-Lock battery4. Charging socket. Plug the charger here to apply the first full charge session5. D-Tap auxiliary connector6. Installation side to back of the camera7. Special spring loaded output connector (power and data outlet to camera)8. Screw pattern for installation on back of ALEXA

€760.00*

gross: €904.40

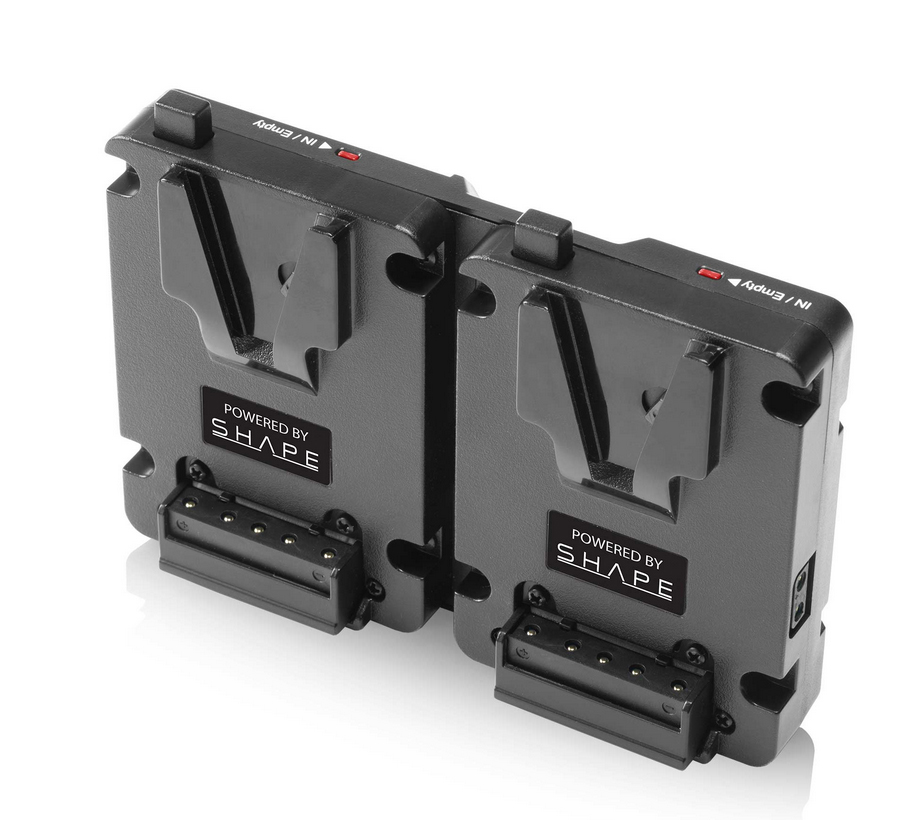

SHAPE Dual V-Mount Hot Swap Mini Battery Plate
