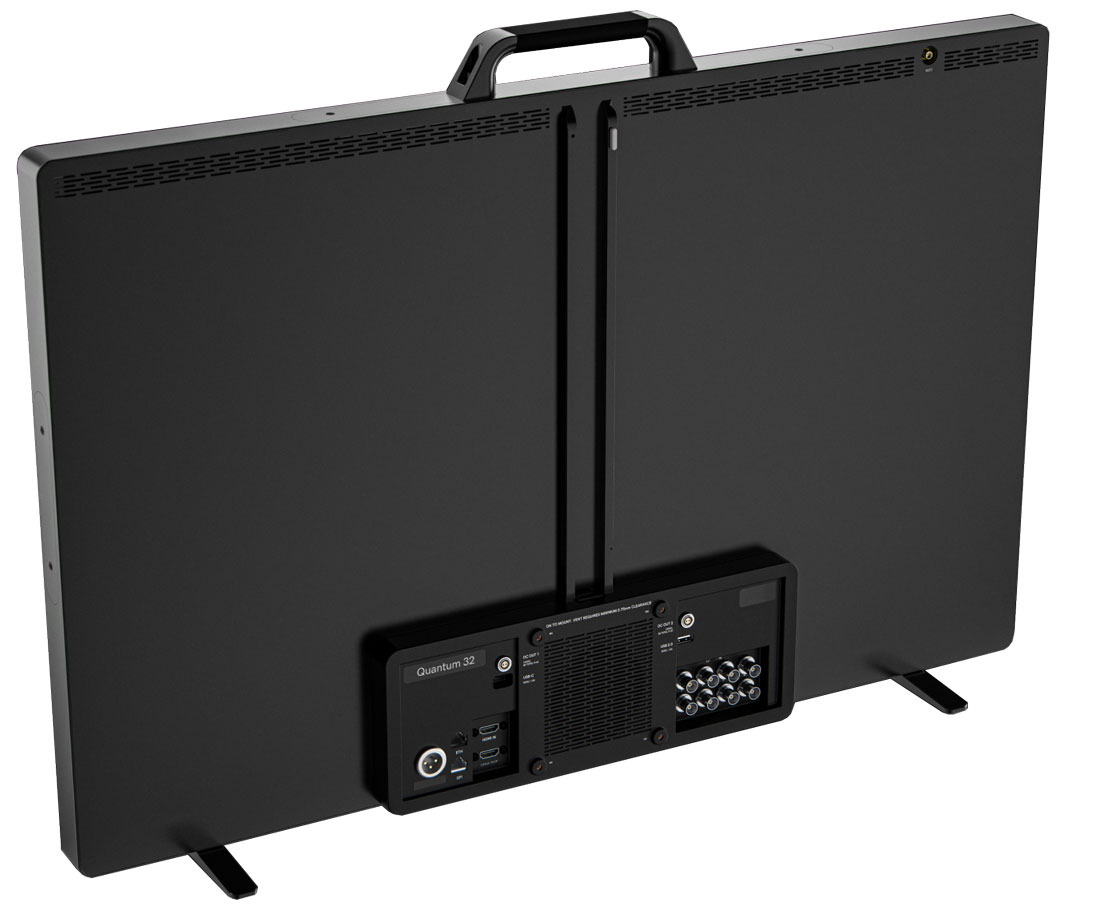

smallHD Quantum 32
smallHD Quantum 32
A 31.5" quantum dot OLED monitor that meets the demands of HDR color grading and mastering.
Quantum 32 is the result of a partnership between SmallHD and Samsung Display Corporation to create an HDR reference monitor that meets the requirements of motion picture production and post. SDC has pioneered quantum dot OLED, utilizing Nobel Prize- winning nanotechnology to achieve unparalleled color and dynamic range.
QD-OLED panels directly emit narrow spectrum RGB light evenly in all directions, providing uniform luminance up to 1000nits, extending color gamut coverage to 99% of DCI-P3, and enabling an exceptionally wide viewing angle.
Quantum dot OLED enables an exceptionally high volume of color expressions. The results more closely approximate human vision: extremely high color purity and peak luminance.
smallHD Quantum 32 features a new, more powerful central processor with an entirely custom-designed architecture running PageOS, SmallHD’s unique operating system. PageOS is an intuitive and highly customizable page-based monitoring interface with extensive tools for video engineering workflows, and numerous third-party software integrations.
Features
- 31.5 HDR Reference Monitor
- Quantum Dot OLED Display Panel
- 1000 Nits Brightness
- New Rotary Control Dials
- Multiview of EOTFs/LUTs
- Dual-GM/VM Battery Plates
- 2x 2pin LEMO power output
- 1x USB-C power output 2x USB power output
- PageOS 6 Software
Software PageOs
- Redesigned Color Pipe UI
- Fleet Control Remote Access App Integration
- Wifi Support for Monitor Control
- Custom Exposure Assist
- Pixel-based Fine Adjustments for Tools
- Integrated CalMAN Calibration Support
- Trigger Tally with GPI
- High Resolution Waveform
Video resolution
SDI
- 4K: 4096x2160p: 23.98/24/29.97/30/47.95/48/50/59.94/60
- UHD: 3840x2160: 23.97/24/25/29.97/30/50/59.94/60
- 2K: 2048x1080p: 23.97/24/25/30
HD
- 1080psf: 23.97/24/25
- 1080i: 50/59.97/60
- 1080p: 23,98/24/25/29.97/30
- 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
- 480p: 59.94/60/100/119.88/120
- 576p: 50/100
- 480i: 59.94/60/119.88/120
- 576i: 50/100
HDMI
- Supports YCC 4:2:2 @ 8bits, 8/10/12bit color in RGB & YCC
- 4:4:4
- Up to 4Kp60
