OConnor O-Grips Double Jointed Set C1244-0002
€2,040.00*
gross: €2,427.60

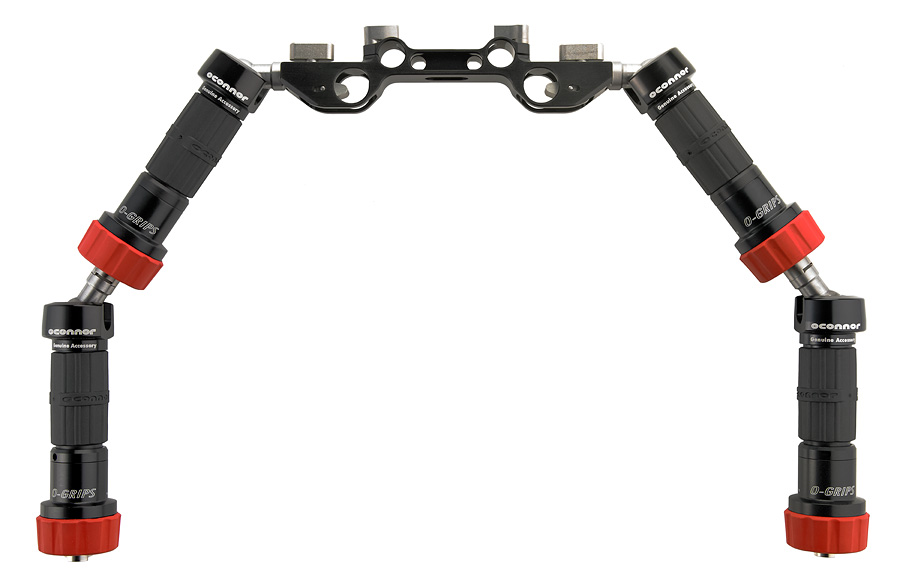

OConnor O-Grips Double Jointed Set
C1244-0002
The OConnor O-Grips Double Jointed Set is a set of modular O-Grips configured to create double handles for custom applications, and can be used for payloads up to 44 lb (20 kg). A titanium core based construction provides rigidity and stability for camera mounted operations. Wide compatibility is offered by the OConnor O-Grips bridge that supports the 15 mm and 19 mm Studio and 15 mm LWS standard rod systems.
You can achieve complete spherical stepless articulation owing to the combination of 2 grips constituting the double jointed design. Addition of optional accessories as well as multiple-point connection on to camera systems is possible via the 3/8 stainless steel top screw and 3/8 bottom thread. You can quickly attach and remove the O-Grips system from the camera system using a commonly available 5 mm Allen wrench.
Features
Set of modular O-Grips configured to create double handles for custom applicationsSupports payloads up to 44 lb (20 kg)Provides rigidity and stability for camera mounted operation via a titanium core based constructionOffers wide compatibility via the O-Grips bridge that supports the 15 mm and 19 mm Studio and the 15 mm LWS standard rod systemsAllows you to achieve complete spherical stepless articulation owing to the combination of 2 grips constituting the double jointed designAllows addition of optional accessories as well as multiple-point connection on to camera systems via the 3/8 stainless steel top screw and 3/8 bottom threadEnables quick attachment and removal from the camera system using a commonly available 5 mm Allen wrench
Package includes
4 x O-Grips Single Module C1244-10011 x O-Grips Three-System Rod Bridge C1244-1002
OConnor O-Grips Single Jointed Set C1244-0001
€1,250.00*
gross: €1,487.50

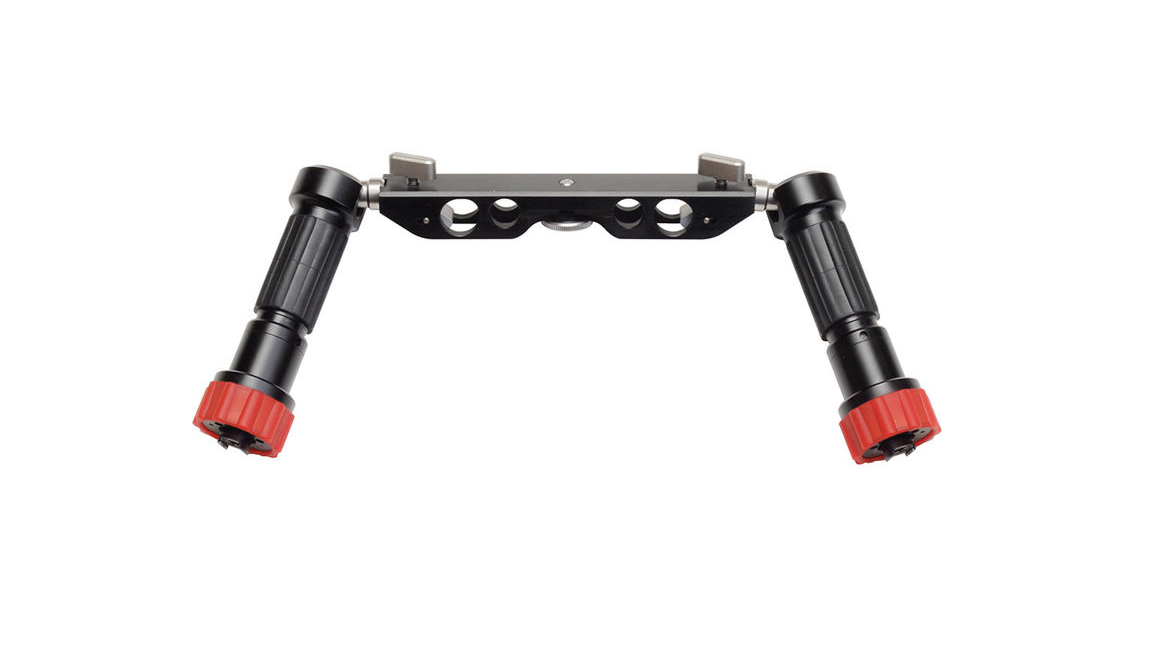

OConnor O-Grips Single Jointed Set
C1244-0001
O-Grips Handgrip System includes
2 x O-Grips Single ModuleC1244-10011 x O-Grips Three-System Rod BridgeC1244-1002
The OConnor O-Grips can be used for all common camera systems (possibly via adapter).
Single-handle ball joints with high load capacity (i.e. can also be used for large cameras)Each module is a fully adjustable and can be clamped in a full hemisphereStackable modules, i.e. you can put together Double or multi-joint handlesRod Bridge fits all three common rod systems (Studio 15mm, 19mm & Studio LWS 15mm)
Constructed with a solid titanium core for extreme durability and reliability, O-Grips feature smooth-functioning, single-handle ball joints with a maximum payload capacity of 44 lbs (20 kg) at 7 in (18 cm) from ball center – making them ideal for work with both smaller and larger cameras. These are the first professional camera handgrips capable of fitting all three standard rod systems (15mm and 19mm Studio, and 15mm LWS) via the single, easy to use O-Grips bridge. OConnor O-Grips can be used with all common camera configurations (several optional accessories will be available).
Modular O-Grips are stackable for custom applications and can be configured to create double or even multi-joint handles. Each grip is fully adjustable and is capable of a half sphere of stepless articulation. In addition, by combining two grips, the range can be extended to a complete sphere.
Users can easily perform tool-free adjustment and locking of the O-Grips with one hand while operating most camera systems on their shoulder. A 3/8 stainless steel top screw and 3/8 bottom thread enable attachment at many points on a camera system and allow the addition of different accessories to the O-Grips for maximum versatility and functionality. Attaching or removing a single O-Grip Module from the camera system is quick and simple -- a 5mm Allen wrench is all it takes.
Attachment
3/8” stainless steel top screw with 3/8” bottom thread. Quick and simple using a 5 mm Allen wrenchCompatible with all common camera configurations with optional accessories.
Modular stackable design for custom applications
Construction solid titanium corePayload capacity (maximum) 20 kgRod fitting (using O-Grips bridge)15 mm Studio19 mm Studio15 mm LWS
