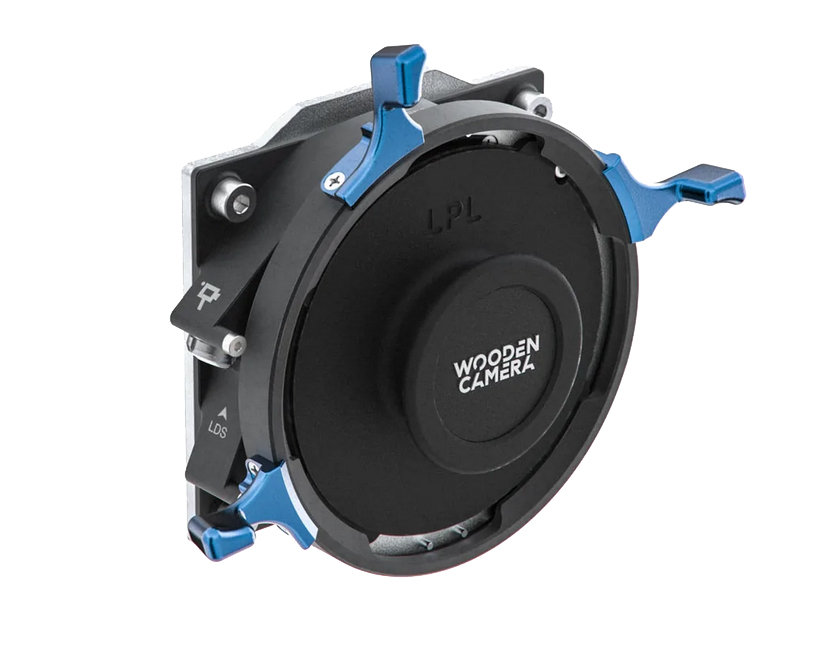

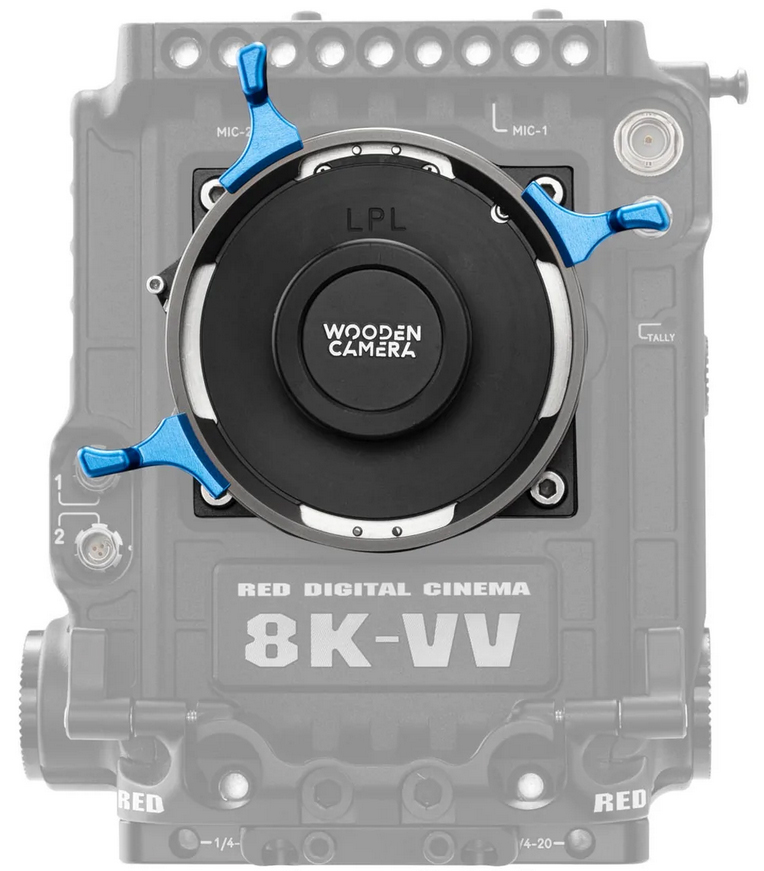

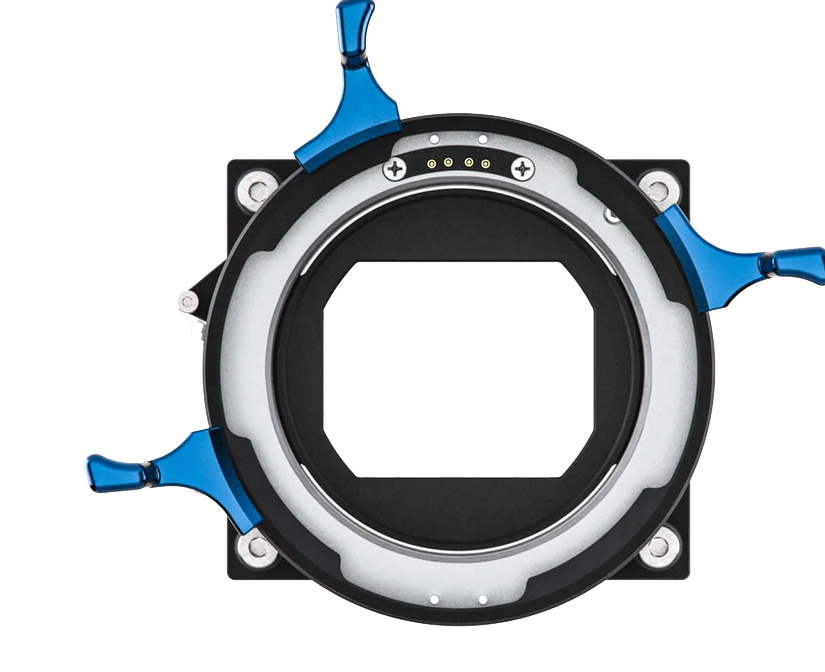

Wooden Camera ARRI LPL Mount for RED V-RAPTOR XL Camera

Wooden Camera ARRI LPL Mount for RED V-RAPTOR XL Camera

SKU: A00157

ARRI LPL Mount for RED V-RAPTOR XL Camera allows LPL mounted lenses to be used with the RED V-RAPTOR XL. ARRI's LPL to PL Adapter is also compatible, allowing the use of standard PL lenses within the LPL mount. An external LDS-2 port is present, but not currently utilized. Once external LDS-2 metadata workflows are created, this port can be connected to a metadata recorder.

Shim Set

(stackable to achieve necessary thickness)

  • Silver .0127mm (0.0005")
  • Amber .0254mm (0.001")
  • Purple .0381mm (0.0015")
  • Red .0508mm (0.002")
  • Green .0762mm (0.003")
  • Tan .1016mm (0.004")
  • Blue .127mm (0.005")

Specifications

  • Weight: 220g
  • Dimensions: 81.8 mm x 81.8 mm x 46.5 mm
