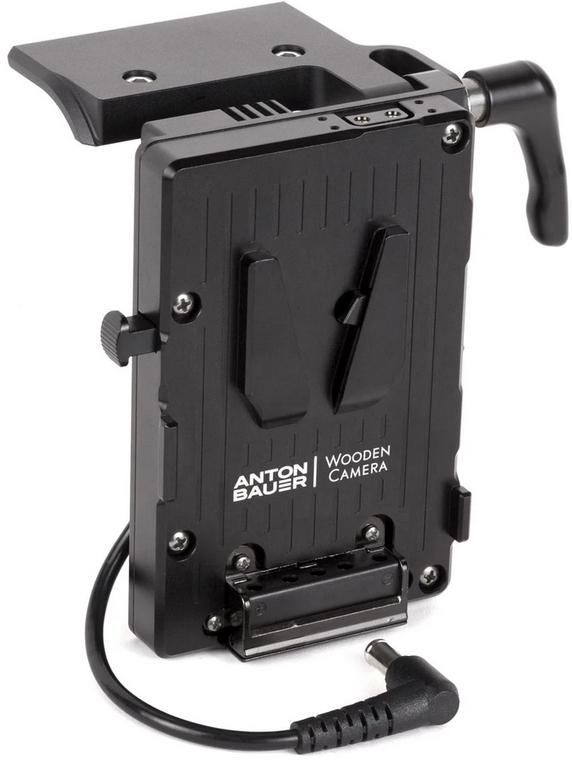

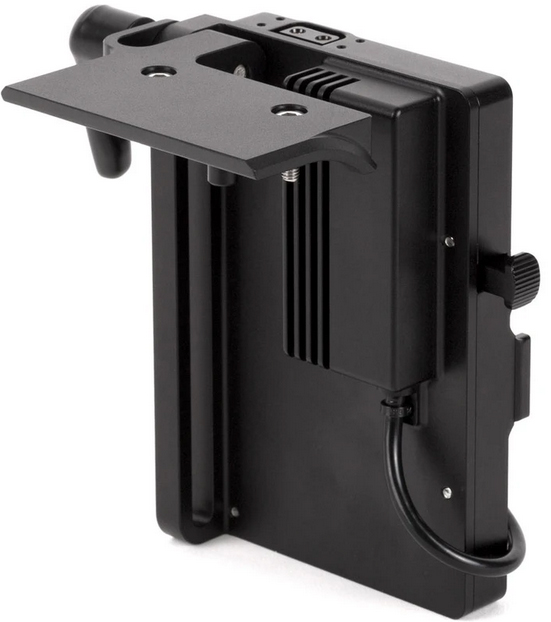

Wooden Camera Battery Slide Pro V-Mount (Sony FX9)

Wooden Camera Battery Slide Pro V-Mount (Sony FX9)

SKU: 275900

Battery Slide Pro V-Mount (Sony FX9) utilizes a WC Pro V-Mount plate which converts battery voltage to 19.5V for the camera, FX9 barrel connector, and a custom Battery Slide which attaches directly to the back of the Sony FX9 camera without rods. This system retains access to the battery compartment and allows an internal BPU battery to be installed, giving the user the ability to hot swap V-Mount batteries. To adjust battery plate position, loosen the thumbscrew and slide.  Perfectly fits rear profile of the Sony FX9 for compact packing in camera case.

  • Features 3x D-Tap ports at battery voltage for accessory power and digital fuse which cuts off accessory outputs while leaving the camera powered
  • Weight: 349.27 g
  • Dimensions: 76.2 mm x 44.45 mm x 177.8 mm

TOP-Handles - Camera cages - Camera plates - Camera brackets  -  Matte box - Battery plates - Power cables

Products from american producer Wooden Camera that offers useful solution for your video-audio equipment. The range of product concenrs



Related links of the manufacturer

Accessory Items

Free shipping
Core SWX CXV-FX9 Battery Plate for Sony PXW-FX9 (V-Mount)
Core SWX Battery Plate for Sony PXW-FX9 SKU: CXV-FX9 The CXV-FX9 mounts directly to the back of the Sony PXW-FX9, as an alternative power option to the Sony XDCA-FX9. The milled aluminum product inserts into the battery slot of the camera and also attaches into the top of the camera (with included screw hardware) to provide a secure platform for mounting v-mount batteries directly onto the FX9 camera. It has a 19.5v DC output with a visual low battery warning LED and a 4-pin XLR DC input for hotswapping between external and on-board power. In addition, it’s equipped with two powertaps to power additional accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates. Input: 11.9vdc-16.8vdc(on-board and 4p XLR DC-in). Inputs are hot swappable.Output for camera: DC 19.5vPowertaps: DC 11.9-17v, UnregulatedSize: 13,72 cm x 8,51 cm x 9,40 cmWeight: 0,54 kgFirmware port: USB MicroLED power indication: Bi-colour(red/green)

€436.00*
gross: €518.84
