Wooden Camera Battery Swing

Free shipping
slide 2 of 6

€325.50*

gross: €387.35

Prices excl. VAT plus shipping costs

Free shipping

Product number: SW19694
Manufacturer: Wooden Camera
EAN: 606184853885
Manufacturer product number: 245700
Delivery time: 3-5 Tage

Wooden Camera Battery Swing

SKU: 245700

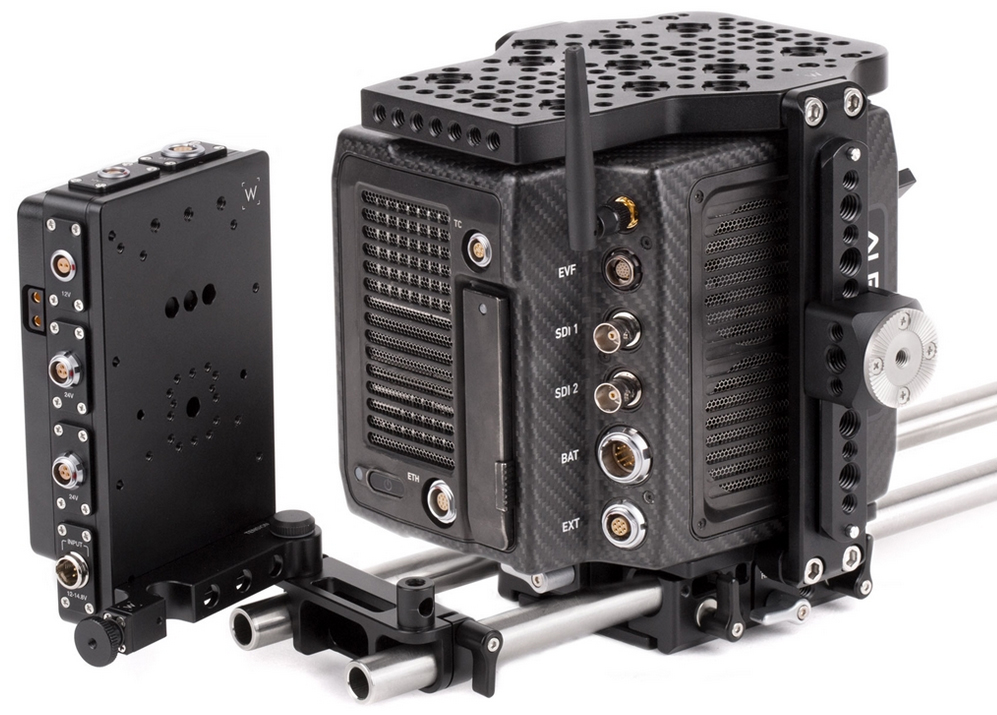

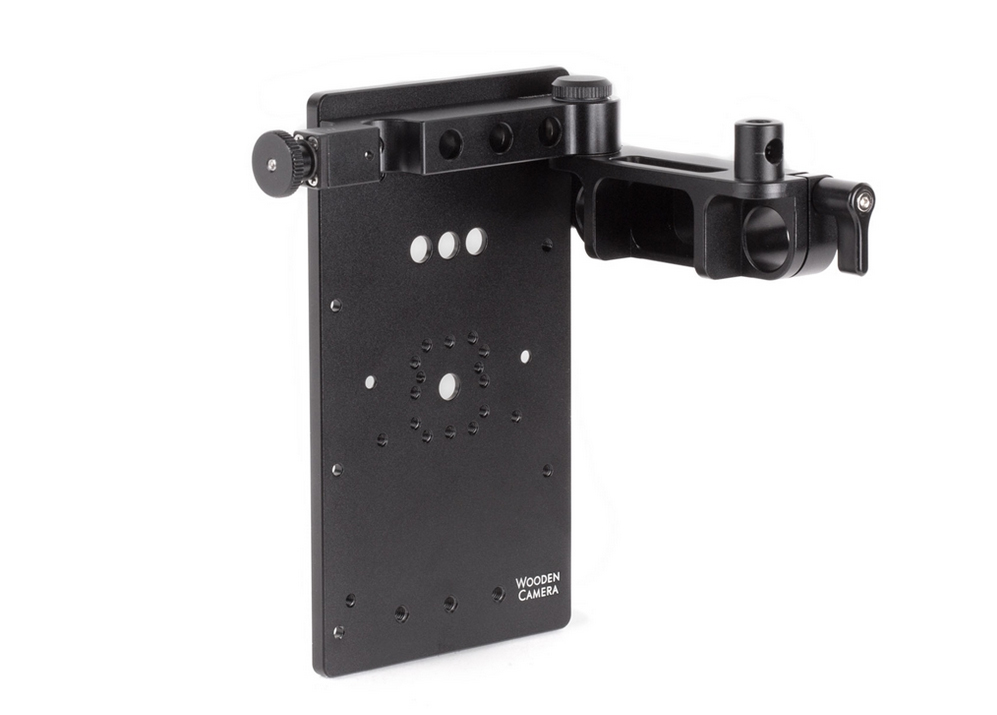

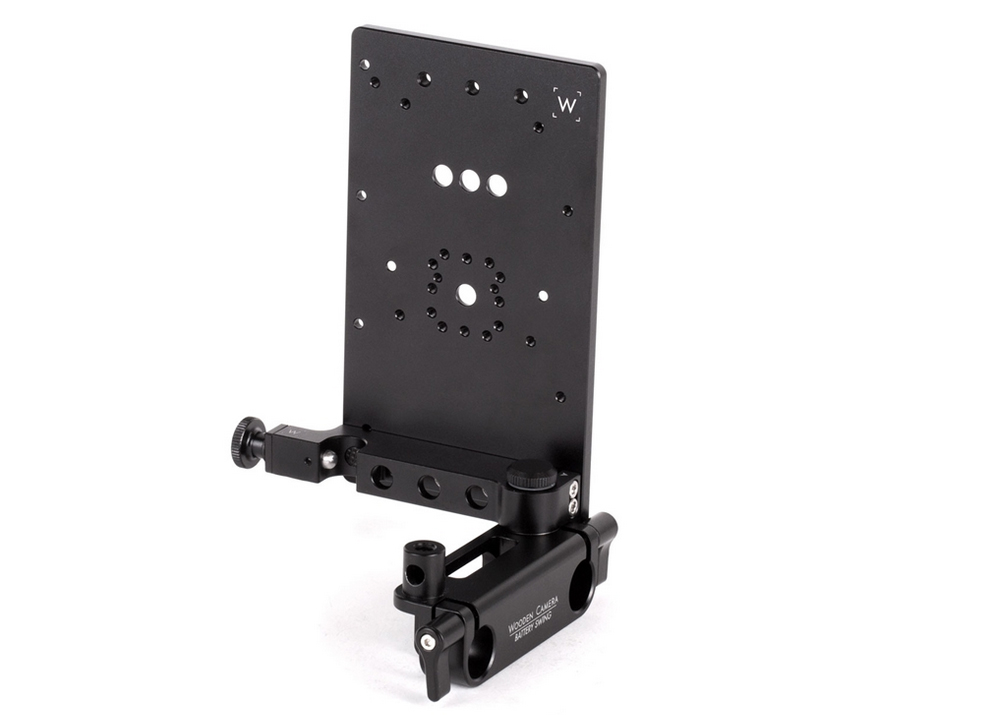

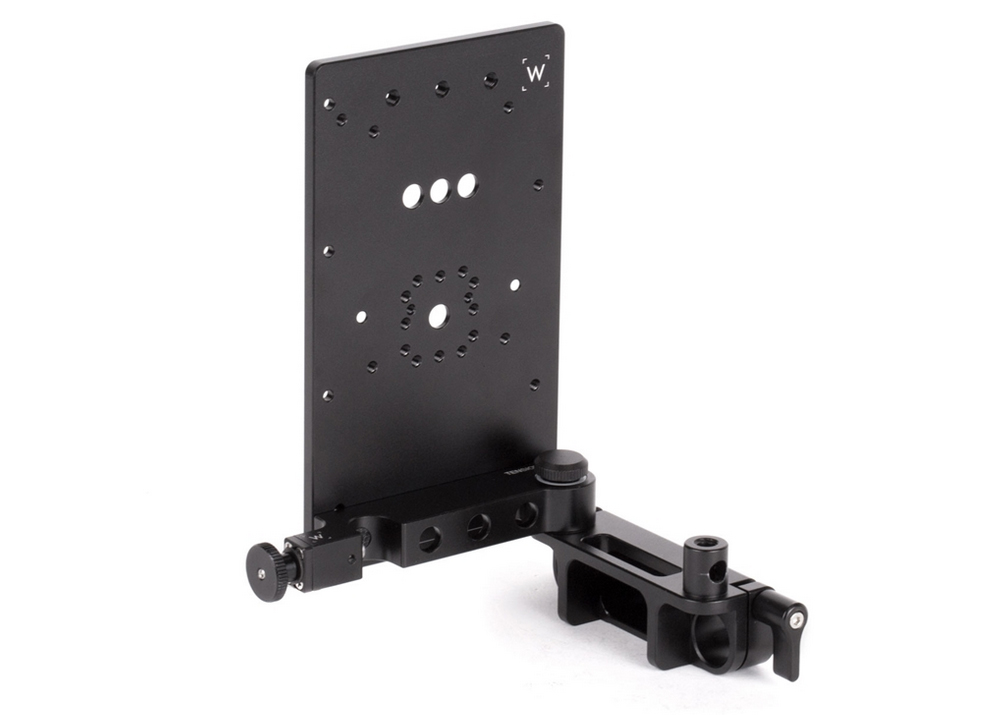

Wooden Camera Battery Swing provides standard V-Mount and Gold Mount hole patterns for mounting WC battery plates and the D-Box (Alexa Mini). Quickly access the back of the camera by pulling the black pin and swinging open. Mounting bracket has integrated 15mm rod openings and is most commonly used in the lower position for bottom rods. Battery Swing can be mounted to top rods by moving the swing arm to the top row of holes on the battery bracket.

  • Weight: 226.80g
  • Dimensions: 152.4 x 114.3 x 45.7 mm

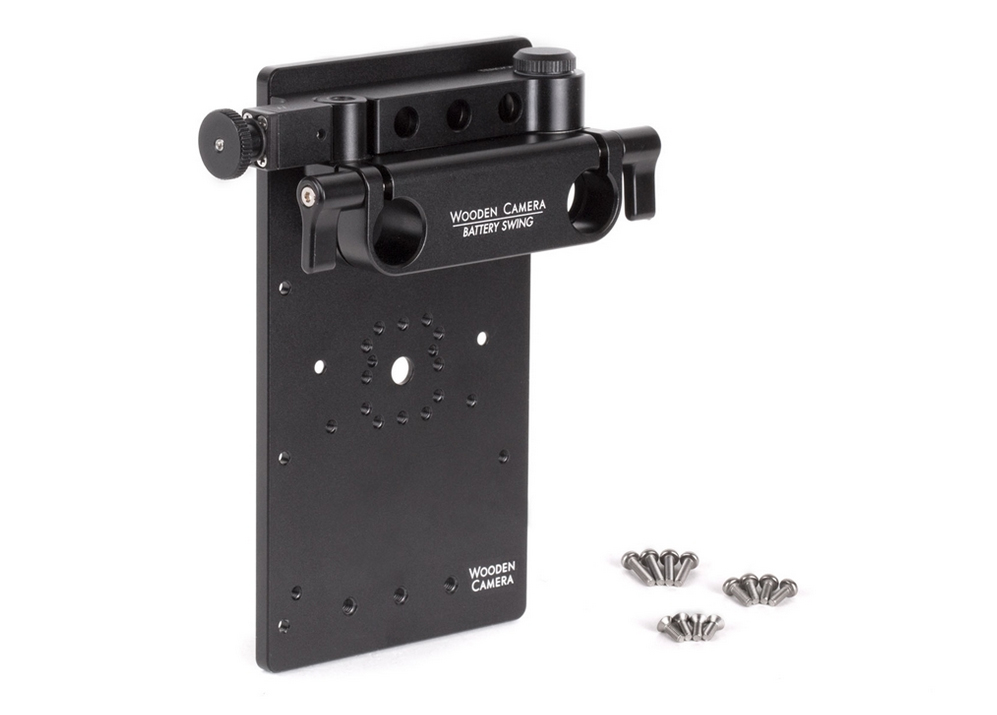

Includes

  • 4 x M3 x 12mm Pan Head Screws
  • 4 x M3 x 8mm Pan Head Screws
  • 4 x M3 x 8mm Phillips Flat Head Screws (for attaching D-Box if original screws were lost)
