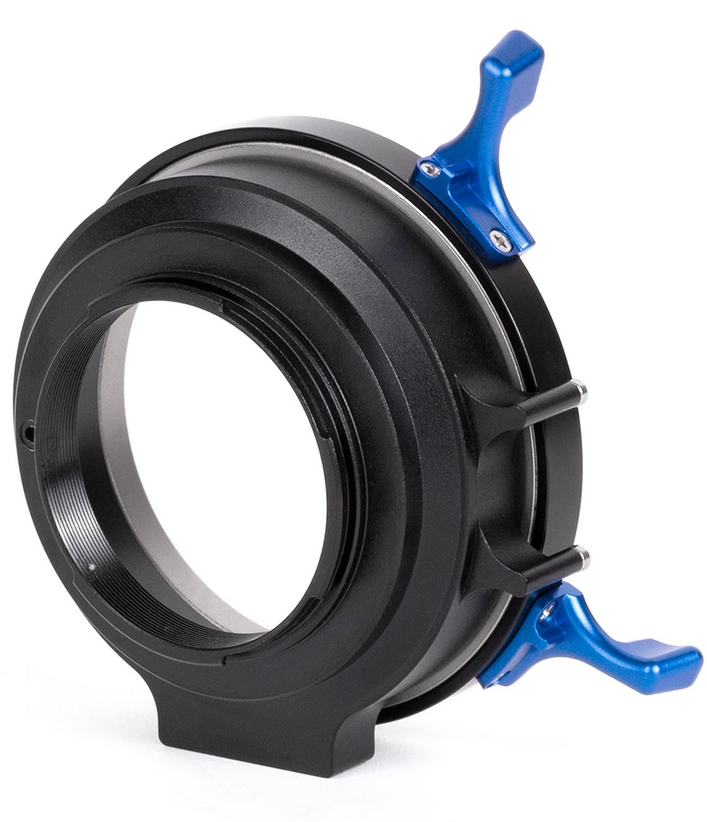

Wooden Camera Canon RF to ARRI LPL Mount Adapter

Free shipping
Tip

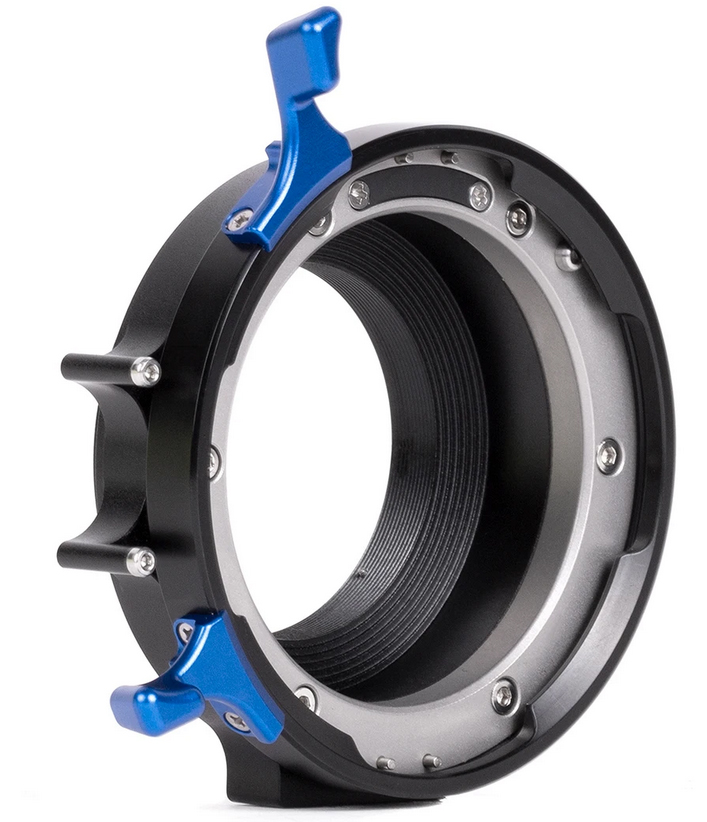

Canon R Mount to ARRI LPL Mount Adapter
Canon EOS R to ARRI LPL Mount Adapter
wooden camera 276600
Canon R to ARRI LPL Mount Adapter
Canon R Mount to ARRI LPL Mount Adapter
Canon EOS R to ARRI LPL Mount Adapter
wooden camera 276600
Canon R to ARRI LPL Mount Adapter

€490.00*

gross: €583.10

Prices excl. VAT plus shipping costs

Free shipping

Available, delivery time: 1 day

Product number: SW23605
Manufacturer: Wooden Camera
EAN: 606184858842
Manufacturer product number: 276600
Delivery time: 1 day

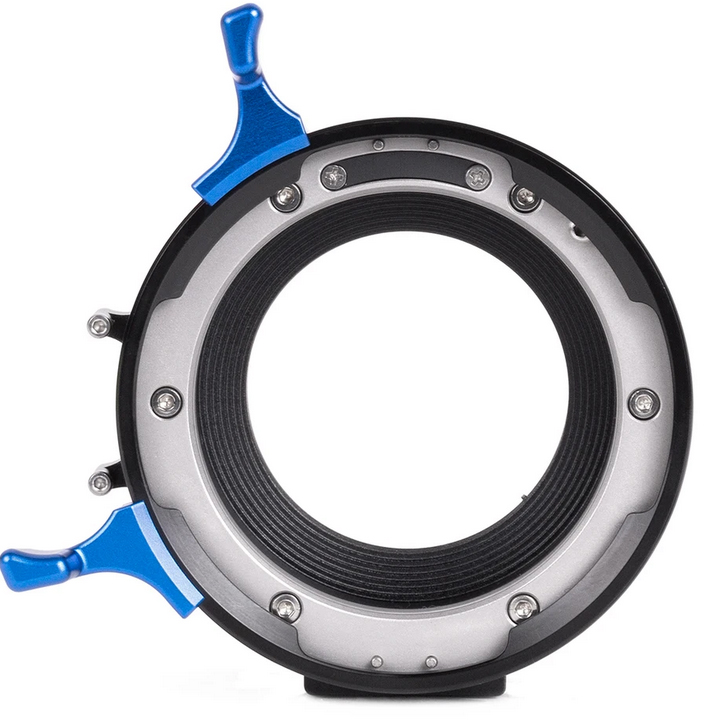

Wooden Camera Canon R Mount to ARRI LPL Mount Adapter

SKU: 276600

Canon R Mount to ARRI LPL Mount Adapter allows ARRI LPL Signature Prime Lenses to be used with Canon R Mount cameras. Other LPL lenses like Leica Thalia LPL are also compatible.

The 1/4-20 threaded hole on the bottom reduces strain on the camera mount by attaching to a tripod or the vertical lens support hole on the Unified DSLR Cage. LPL Cap included to prevent dust from entering sensor area when lens is not attached. A third tab is included for use with mount when not installed in a DSLR cage.

In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.

ARRI's LPL to PL Adapter is also compatible, allowing easy change from standard PL lenses to LPL lenses. LPL Mount is passive and does not communicate lens data to the camera.

Shim Set

stackable to achieve necessary thickness

  • Silver .0127mm (0.0005")
  • Amber .0254mm (0.001")
  • Purple .0381mm (0.0015")
  • Red .0508mm (0.002")
  • Green .0762mm (0.003")
  • Tan .1016mm (0.004")
  • Blue .127mm (0.005")

Specifications

  • Weight: 216g
  • Dimensions: 81.8 mm x 81.8 mm x 46.5 mm

Details of the manufacturer

  • Wooden Camera
  • 8 Mason Irvine
  • California 92618, United States

+1 855.966.3226

https://woodencamera.com/pages/contact-us

Details of the person responsible for putting the product on the European market

  • New Media AV Bauer und Trummer GmbH
  • Johannes Bauer
  • Pirnaer Straße 20
  • 90411 Nürnberg, Germany

+49 911 5399-60

team@nmav.de

Related links of the manufacturer

Accessory Items

Free shipping

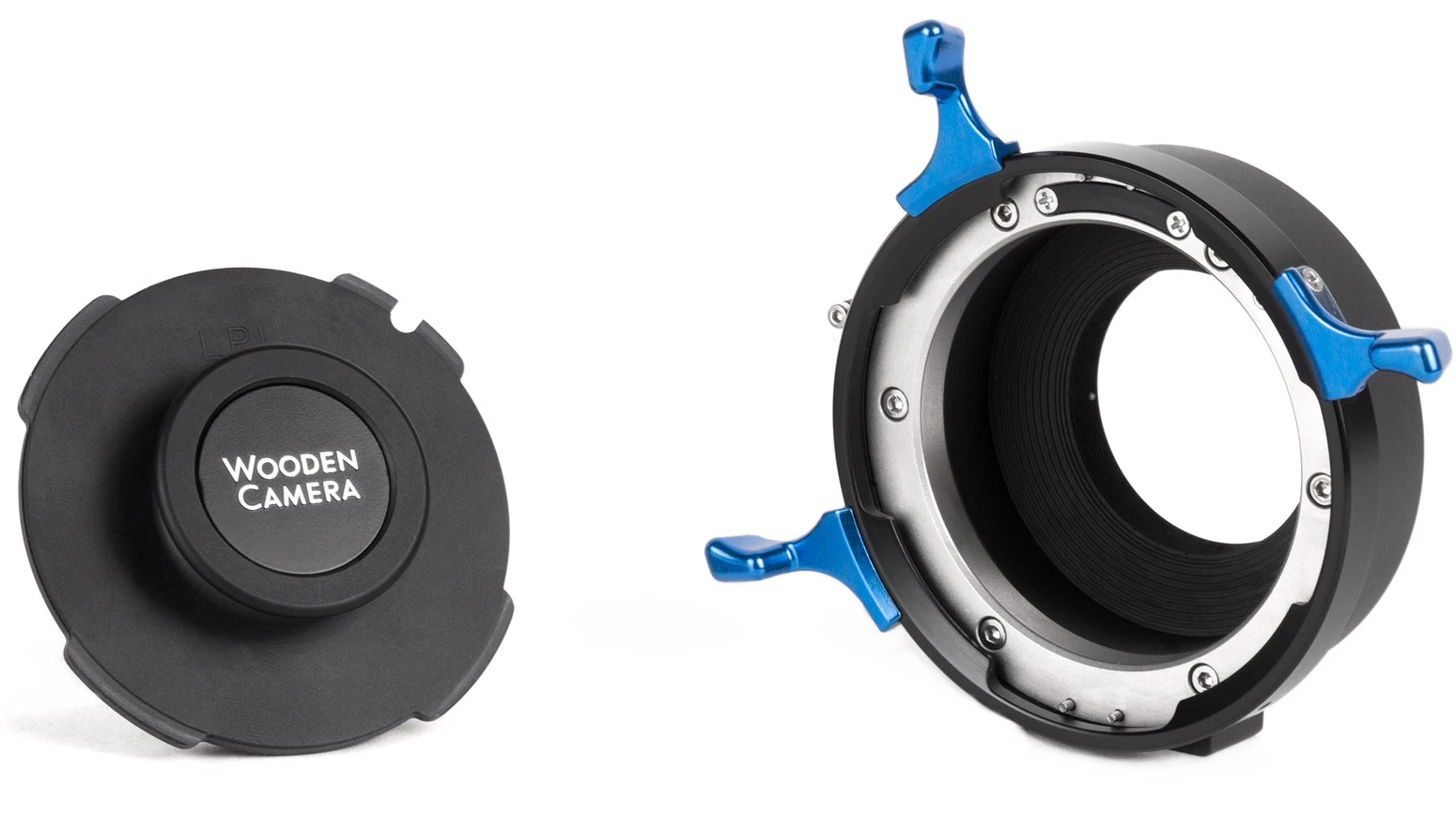

Wooden Camera Sony E-Mount to LPL Mount Adapter Pro
Wooden Camera Sony E-Mount to LPL Mount Adapter (Pro)
Wooden Camera Sony E-Mount to LPL Mount Adapter (Pro) SKU: 269100 ARRI LPL Mount for Sony E-Mount Cameras allows ARRI LPL Signature Prime Lenses to be used with Sony E-Mount Full Frame Alpha series cameras. Mount includes a foot with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The support foot can also be attached to the Unified DSLR Cage natively using the vertical support hole and the Unified Lens Adapter Support Kit. LPL Cap included to prevent dust from entering sensor area when lens is not attached. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. LPL Mount is passive and does not communicate lens data to the camera. Weight: 216 gDimensions: 81,8 mm x 81,8 mm x 46.5 mm

€529.22*
gross: €629.77
Free shipping

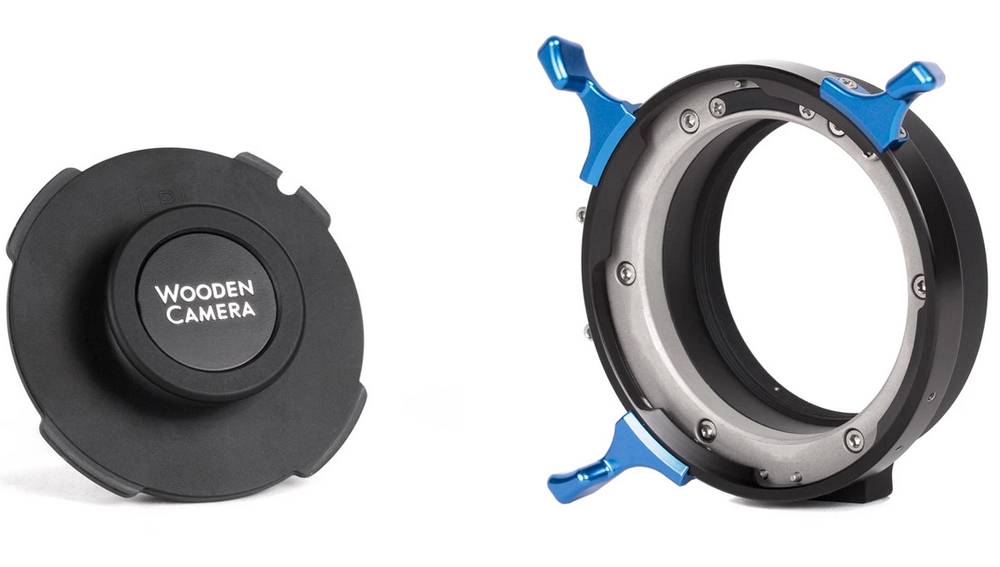

Fujifilm G Mount to ARRI LPL Mount Adapter
Wooden Camera Fujifilm G Mount (GFX) to ARRI LPL Mount Adapter
Wooden Camera Fujifilm G Mount (GFX) to ARRI LPL Mount Adapter SKU: 274400 Fujifilm G Mount (GFX) to ARRI LPL Mount Adapter allows ARRI LPL Signature Prime Lenses to be used with Fujifilm G Mount (GFX) cameras. Mount includes an integrated foot with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The support foot can also be attached to the Unified DSLR Cage natively using the vertical support hole and the Unified Lens Adapter Support Kit. LPL Cap included to prevent dust from entering sensor area when lens is not attached. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. ARRI's LPL to PL Adapter is also compatible, allowing easy change from standard PL lenses to LPL lenses. LPL Mount is passive and does not communicate lens data to the camera.  Shim Setstackable to achieve necessary thickness Silver .0127mm (0.0005")Amber .0254mm (0.001")Purple .0381mm (0.0015")Red .0508mm (0.002")Green .0762mm (0.003")Tan .1016mm (0.004")Blue .127mm (0.005") Specifications Weight: 223g Dimensions: 81.8 x 81.8 x 38.1 mm

€529.22*
gross: €629.77
Free shipping
Vocas Canon R-mount to LPL adapter
Vocas Canon R-mount to LPL adapter
Vocas Canon R-mount to LPL adapter SKU: 0900-0119 R-mount to LPL adapter, excluding 15 mm rail support. This adapter allows the use of LPL lenses on R-mount cameras. The separate Vocas LPL mount cap is included.

€489.00*
gross: €581.91
Free shipping
Wooden Camera Canon RF to PL Mount Adapter Pro
Wooden Camera Canon RF to PL Mount Adapter (Pro)
Wooden Camera Canon RF to PL Mount Adapter (Pro) SKU: 268600 Canon RF to PL Adapter (Pro) is a shimmable version of our PL lens mount adapter that enables mounting of PL mount lenses onto the Canon EOS R Camera. Mount includes a foot with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The foot can also attach directly to the front of the Unified DSLR Cage (Small) by two included screws. PL Cap included to prevent dust from entering sensor area when lens is not attached. If you are using the Wooden Camera Canon RF to PL Mount (Pro) without a camera cage, you can use the included WC Lens Adapter Universal Support Foot to attach directly to the bottom of your camera and lens mount. This allows all the weight to be transferred from the lens mount to the bottom of the camera to avoid any flexing or damage that could occur when using heavier lenses.  In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.Includes 2 x M4x20mm socket cap screw1 x 1/4-20 Support Foot1 x Universal Support Foot Specifications Weight: 251g Dimensions: 85.1 mm x 81.8 mm x 48 mm

€464.07*
gross: €552.24
Free shipping

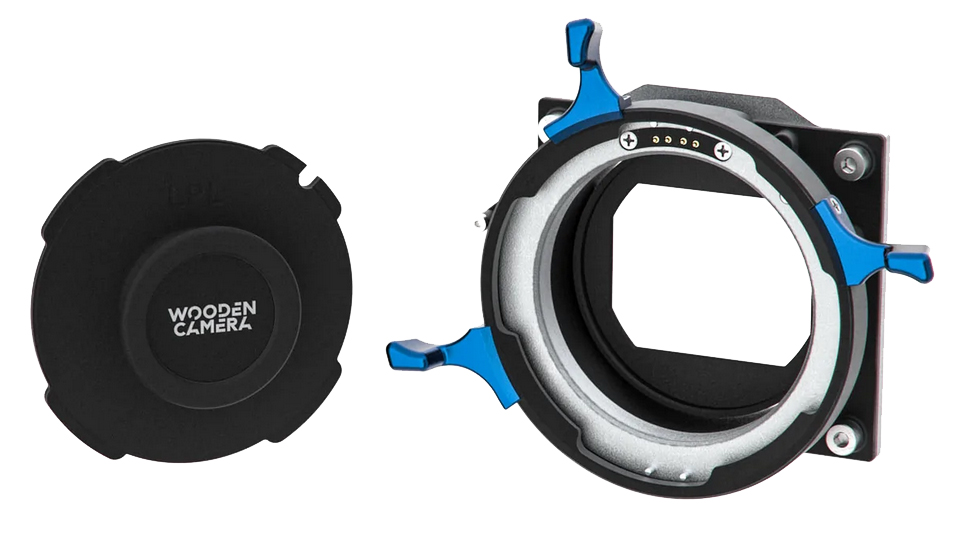

ARRI LPL Mount for RED V-RAPTOR XL Camera
