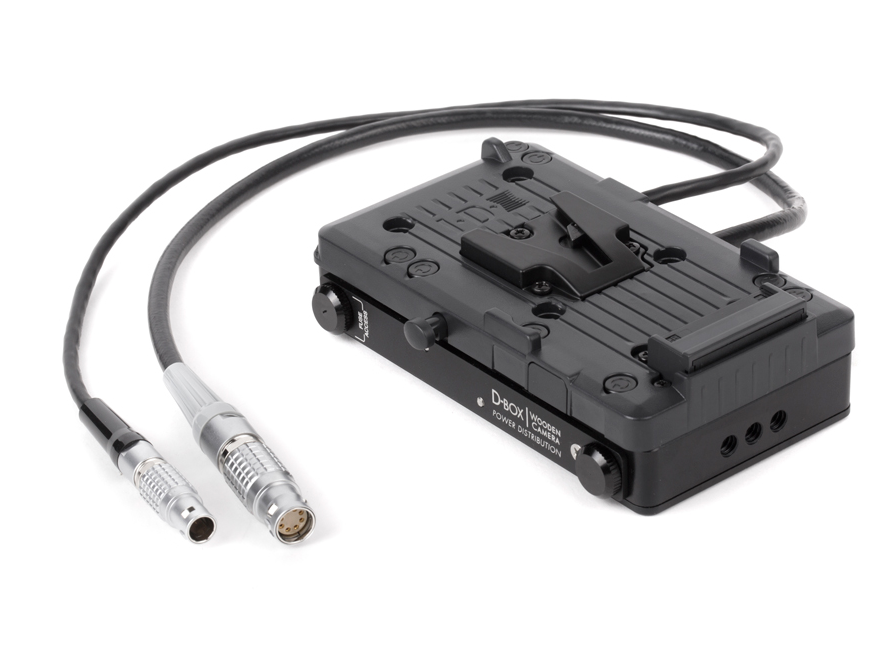

Wooden Camera D-Box (Alexa Mini, V-Mount)

Wooden Camera D-Box (Sony Venice, Venice 2, V-Mount)SKU: 258000 D-Box (Sony Venice, Venice 2, V-Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the Sony Venice, Sony Venice 2 camera. The D-Box main unit attaches to the back of the AXS-R7 or to the V-Mount plate on the camera rear and the Power Strip portion attaches to the top right side of the camera via a 3pin Fischer and the tape hook threaded hole. Connectors on the D-Box Power Strip are contoured to match the camera profile and connector angle which allows for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port including the ARRI UMC-4 / WCU-4. The DC input on the D-Box™ is the same as the camera's 4pin XLR connector allowing for an AC power supply, external power plate, or VCLX block battery to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the D-Box™ defaults to the DC input, leaving the onboard battery fully charged. Physical fuses have been replaced by a processor controlled amp limit which is settable to 3.8, 5.8, or 9 amps using the slide switch on the operator's side. Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again. The "DC IN" and "BATT" LEDs are dual LEDs. This means the LED If battery voltage is above 12.5V the LED will be green. If the battery voltage is below 12V the LED will be red. If the battery voltage is between those values the LED will be orange (red + green). Flashing may occur during phase transition. Highest quality Anton Bauer components are used in the V-Mount assembly and the unibody power plate design is both extremely durable and lightweight. Interfaces 1x V-Mount Power Plate2x 3pin Fischer at 24V with Run Stop- Regulator built in to convert battery voltage to 24V- Maximum 3A surge, 2.5A sustained shared between connectors2x 2pin at 12V unregulated- ARRI standard wiring- Maximum 7A current rating, shared between connectors2x D-Tap at 12V unregulated- Maximum 9A current rating, shared between connectors1x 5V USB - Maximum 2.5A1x 4pin XLR DC Input- For use with 14.4V block batteries- DC Input takes priority when voltage is between 12.9–18V- Accessories are powered when utilizing DC Input Specifications Weight: 484gDimensions: 31.8 mm x 114.3 mm x 133.35 mm

Wooden Camera D-Box (2pin LEMO Kit, V-Mount) SKU: 200100 D-Box (2 Pin LEMO Kit, V-Mount) is one of the most popular combinations of connectors including (2) 2 Pin LEMO, (2) D-Tap, (1) USB, and a male V-Mount on one side and female V-Mount on the other. Fits between any V-Mount battery plate and V-Mount battery. Comes with 2 x 2 Pin LEMO2 x D-Tap1 x USB1 x Blank

Wooden Camera D-Box Plus (ARRI Alexa Mini, V-Mount) SKU: 253700 Wooden Camera D-Box Plus (ARRI Alexa Mini, V-Mount) is an improvement on the very popular D-Box Alexa Mini. D-Box Plus (ARRI Alexa Mini, V-Mount) interfaces with the camera's Power, EXT, and SDI ports . The DC input is now a full size 4pin XLR connector and is prioritized to be used first, leaving the onboard battery fully charged.Physical fuses have been replaced by a processor controlled amp limit which is settable to 3.8, 5.8, or 9 amps using the slide switch on the operator's side. Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.The "DC IN" and "BATT" LEDs are dual LEDs. This means the LED If battery voltage is above 12.5V the LED will be green. If the battery voltage is below 12V the LED will be red. If the battery voltage is between those values the LED will be orange (red + green). Flashing may occur during phase transition. Highest quality Anton Bauer components are used in the V-Mount assembly and the unibody power plate design is both extremely durable and lightweight. Interfaces 1 x V-Mount Power Plate3 x HD-SDI outputs2 x HDMI outputs2 x 3pin Fischer at 24V with Run Stop- Regulator built in to convert battery voltage to 24V- Maximum 3A surge, 2.5A sustained shared between connectors2 x 2pin LEMO at 12V unregulated- ARRI standard wiring2 x D-Tap at 12V unregulated1 x 5V USB1 x EXT port- Replica of connector on rear of camera - Maintains functionality of external communication for Starlite monitor, R/S, and power1 x 4pin XLR DC Input - Hot swappable with on board battery- Capable of providing power to accessories and camera without brick battery attached Cables to Camera 1x 8pin LEMO compatible cable (16 inches)1x 7pin LEMO compatible cable (16 inches)1x HD-SDI cable (16 inches) The bottom of the D-Box has (2) 1/4-20 holes which can attach directly to our Battery Swing Bracket Only (for D-Box Plus),Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm). For an adjustable mount system use the Battery Slide. This product will attach to the ARRI BAP-1 and instructions on how to do this are included in the box.Connectors used in this assembly are not manufactured by LEMO but are made to the same specifications and are LEMO compatible Specifications Weight: 640 gramsDimensions: 114.4 x 146 x 43mm

Wooden Camera D-Box (Alexa Mini, Gold Mount) SKU: 209100 D-Box (Alexa Mini, Gold Mount) is a custom version of popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the ARRI Alexa Mini. Two 16 inch (40cm) cables exit the power plate with one going to the 8pin LEMO power plug and the other going to the 7pin EXT port. The bottom of the D-Box has (3) 1/4-20 holes which can attach directly to Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm). For an adjustable mount system, use the Battery Slide paired with the same Rod Clamps listed above. Wooden Camera D-Boxwill attach to the ARRI BAP-1 and instructions on how to do this are included in the box. Authentic Anton Bauer plate provides 1x D-Tap (unregulated) and is hard wired to the D-Box. D-Box Slots Included 7 pin LEMO - EXT PortReplica of connector on rear of cameraMaintains functionality of external communication, R/S, and powerNote this slot is not swappable2 pin LEMO - 12V UnregulatedARRI standard wiringThis slot can be swapped for Hirose, 4pin LEMO, or D-Tap (note that only 1x D-Tap can occupy slot 2 or 3)2 pin LEMO - 12V UnregulatedARRI standard wiringThis slot can be swapped for Hirose, 4pin LEMO, or D-Tap (note that only 1x D-Tap can occupy slot 2 or 3)3 pin Fischer - 24V RegulatedRegulator built in to convert battery voltage to 24VMaximum 3A shared between slot 4/5Note this slot is not swappable3 pin Fischer - 24V RegulatedRegulator built in to convert battery voltage to 24VMaximum 3A shared between slot 4/5Note this slot is not swappable4 pin Mini XLR - 12V InputHot swappable power input with included 7 inch pigtail cable for standard 4 pin XLR (12V nominal)Capable of providing power to accessories and camera with out brick battery attachedNote this slot is not swappable Specifications Weight 534 gDimensions 90 mm x 146 mm x 43mm
