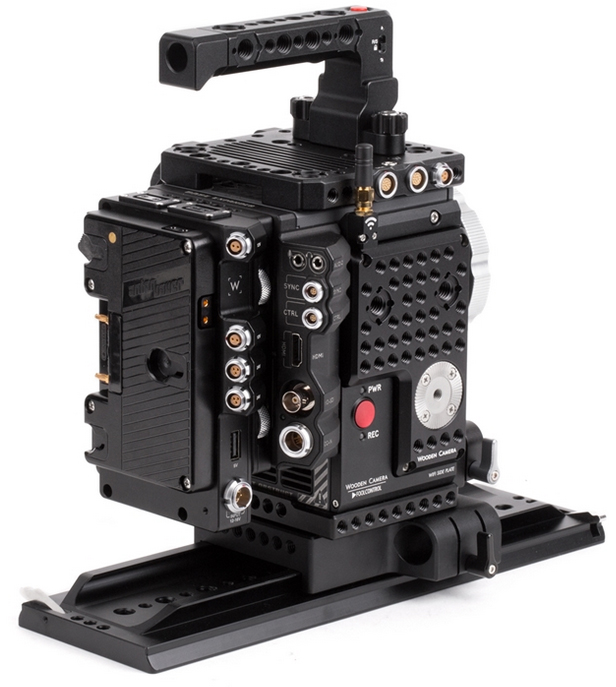

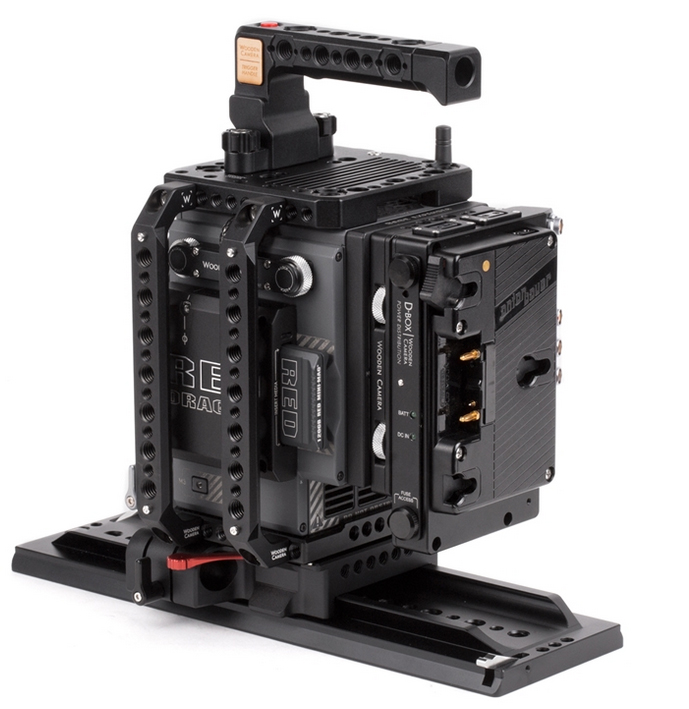

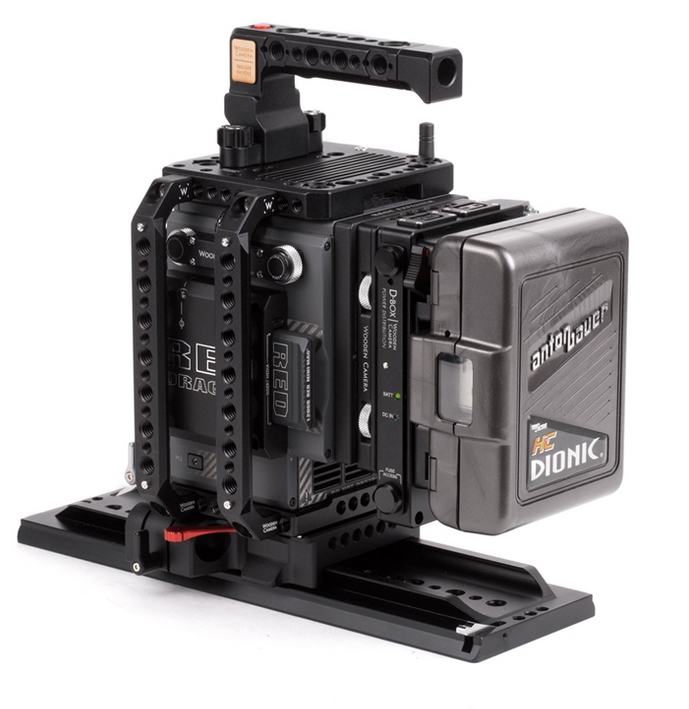

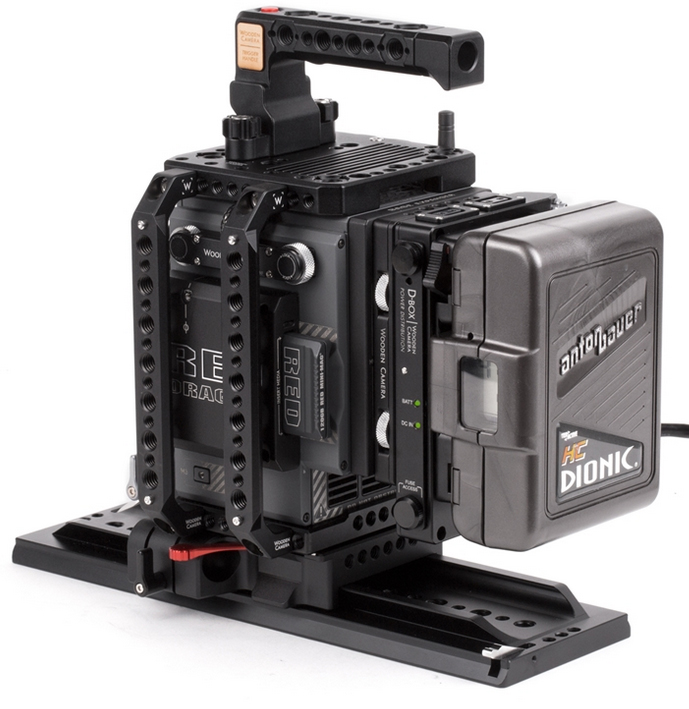

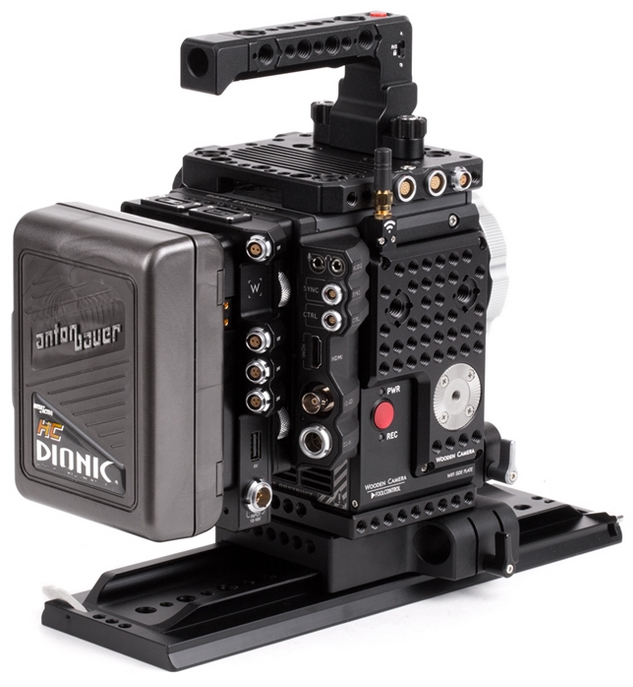

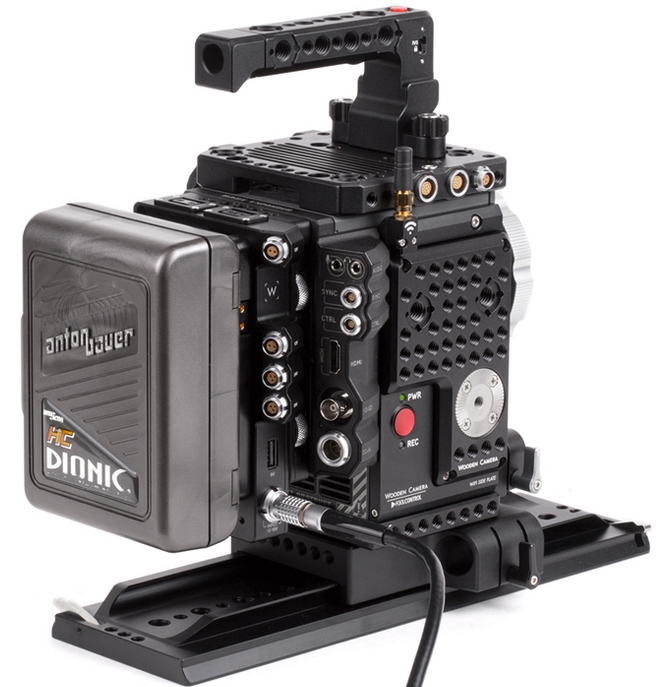

Wooden Camera D-Box (RED DSMC2, Gold Mount)

Free shipping
Wooden Camera D-Box RED Gold Mount
Wooden Camera D-Box Gold Mount
D-Box RED Gold Mount
D-Box Gold Mount
D-Box weapon epic scarlet raven Gold Mount
D-Box weapon epic scarlet raven
D-Box red weapon epic scarlet raven
Wooden Camera D-Box RED Gold Mount
Wooden Camera D-Box Gold Mount
D-Box RED Gold Mount
D-Box Gold Mount
D-Box weapon epic scarlet raven Gold Mount
D-Box weapon epic scarlet raven
D-Box red weapon epic scarlet raven

€1,150.00*

gross: €1,368.50

Prices excl. VAT plus shipping costs

Free shipping

Product number: SW19415

Wooden Camera D-Box (RED DSMC2, Gold Mount)

SKU: 234000

Wooden Camera D-Box (Weapon/Epic-W/Scarlet-W/Raven, Gold Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the RED DSMC2 cameras. The D-Box is completely tool-less for installation and utilizes our Cable-less interface which attaches directly to the back of the camera body, Base Expander Module, REDVolt Expander Module, and the OffHollywood O-Mods.

Connectors on the D-Box (Weapon/Epic-W/Scarlet-W/Raven, Gold Mount) are contoured to match the Expander Modules' which allow for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port. The DC input on the D-Box is the same as the camera's LEMO allowing for an AC power supply or external power plate to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the Wooden Camera D-Box defaults to the DC input, leaving the battery fully charged.

Authentic Anton Bauer Gold Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap is obscured by the right side power outputs. Inside the D-Box is a 10A fuse and replacement fuses are included.

  • Weight: 610g
  • Dimensions: 228.6 mm x 177.8 mm x 127 mm

D-Box Connections

  • 1. D-Tap - 12V Unregulated - This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO
  • 2. D-Tap - 12V Unregulated - This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO
  • 3. 2 pin LEMO - 12V Unregulated - ARRI standard wiring
  • 4. 2 pin LEMO - 12V Unregulated - ARRI standard wiring
  • 5. 3 pin Fischer - 24V Regulated
  • - Regulator built in to convert battery voltage to 24V
  • - Maximum 3A shared between the two 3pin Fischers
  • - ARRI standard start/stop capabilities
  • 6. 3 pin Fischer - 24V Regulated
  • - Regulator built in to convert battery voltage to 24V
  • - Maximum 3A shared between the two 3pin Fischers
  • - ARRI standard start/stop capabilities
  • 7. USB - 5v Regulated - Provides 2A for iPhone/iPad charging
  • 8. DC Input - 12-16V
  • - DC input on the D-Box is the same as the camera's LEMO
  • - Priority is given to DC Input to preserve battery charge when both sources connected
