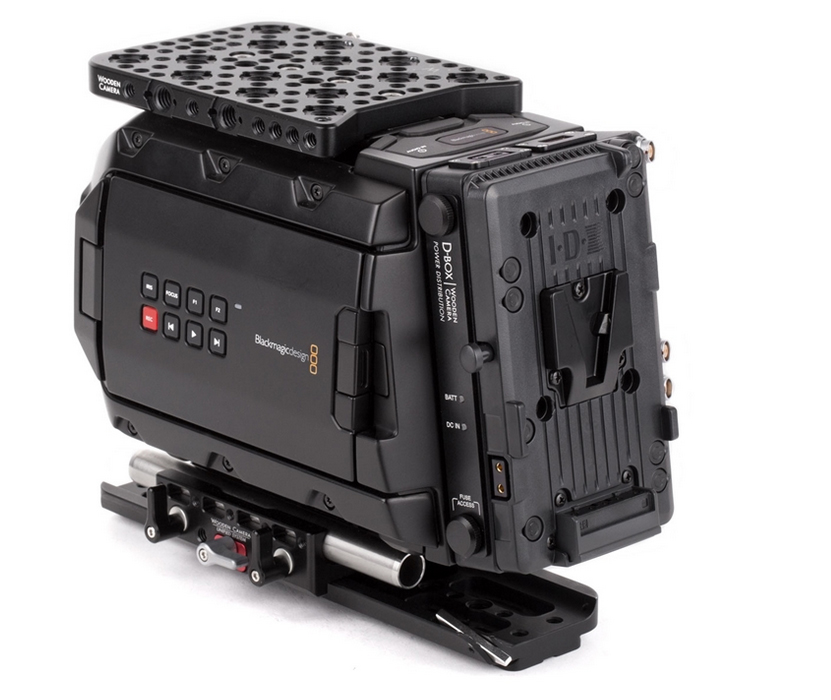

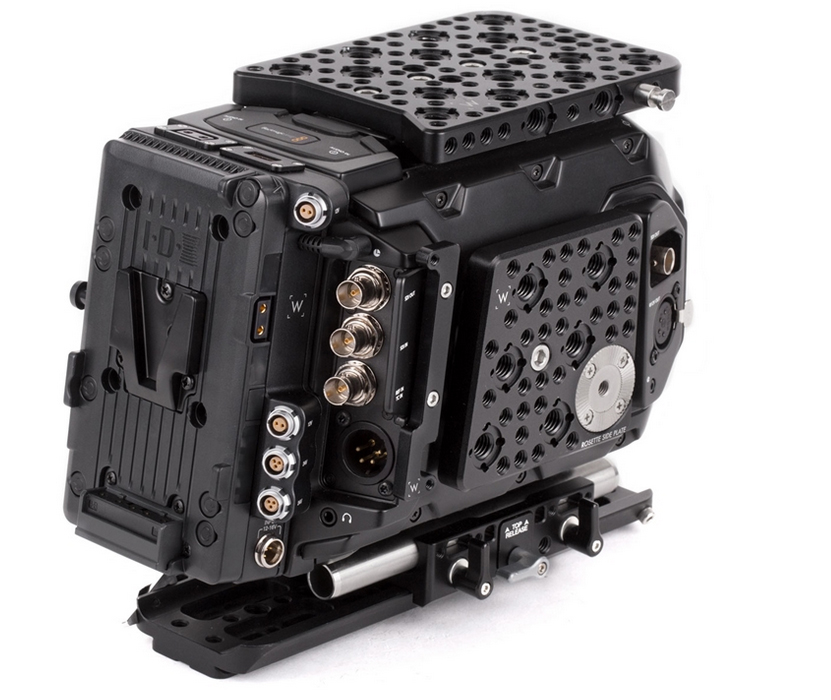

Wooden Camera D-Box (URSA Mini, URSA Mini Pro, V-Mount)

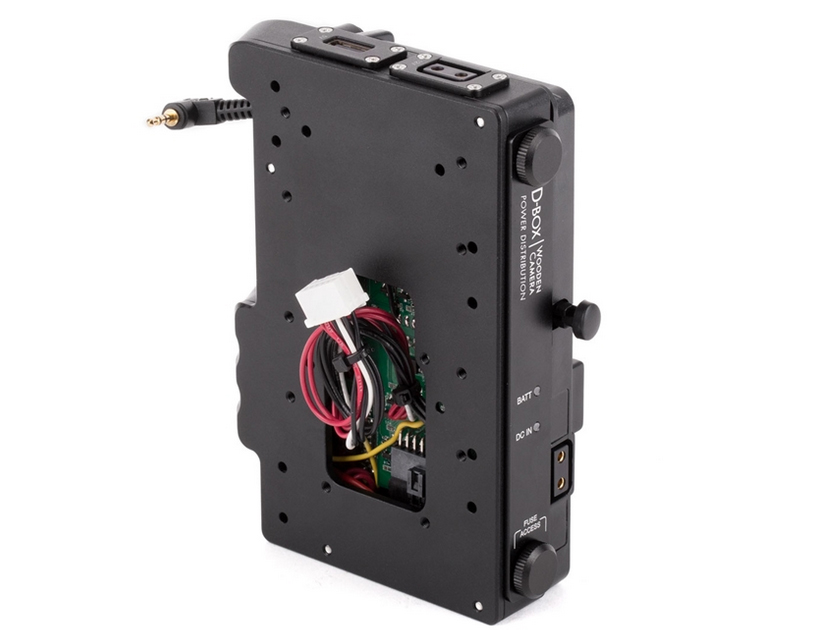

Wooden Camera D-Box (URSA Mini, URSA Mini Pro, Gold Mount) SKU: 239600 Wooden Camera D-Box (URSA Mini, Gold Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap capability to the Blackmagic URSA Mini Pro EF Mount, PL Mount, and B4 Mount cameras. The D-Box attaches directly to the back of the camera body using a special Molex connector eliminating external cabling. It also interfaces with the rear LANC port which is how the D-Box controls the camera's run/stop. Connectors on the D-Box are contoured inline with the URSA Mini body, streamlining port connections and cable management. The module also provides two 3pin Fischer ports, allowing start/stop with any ARRI standard trigger device. The D-Box (URSA Mini, Gold Mount) is equipped with a Mini 4pin XLR DC Input and includes a Mini 4pin XLR to Full 4pin XLR pigtail cable allowing an AC power supply or external power plate to be connected to power the camera and accessories during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged. Authentic Anton Bauer Gold Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap may be obscured by the right side BNC connectors when in use. The camera receives an unfused connection to the power source and the D-Box connectors share a 7.5A fuse. When using D-Box battery modules it is important to know what amount of power your batteries are capable of providing. Most high-end cinema batteries can supply up to 10A with the URSA Mini camera generally consuming 3-4A in standard configuration. Although the remaining power is available from the D-Taps, LEMOs, Fischers, etc., it is best to limit the power draw to 5A or less for best results. Consuming more power than a battery is capable of providing will cause the battery to shut itself off, killing the camera and accessory power. D-Box Connections 1. D-Tap - 12V Unregulated2. USB - 5V Regulated3. 2 pin LEMO - 12V Unregulated - ARRI standard wiring4. 2 pin LEMO - 12V Unregulated - ARRI standard wiring5. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 2A continuous (3A surge) shared between the two 3pin Fischers- ARRI standard start/stop capabilities6. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 2A continuous (3A surge) shared between the two 3pin Fischers- ARRI standard start/stop capabilities7. DC Input - 12-16V- DC input on the D-Box is a Mini 4pin XLR but a pigtail cable is included to full-size 4pin XLR- Priority is given to DC Input to preserve battery charge when both sources connected Camera Compatibility Blackmagic URSA Mini 4KBlackmagic URSA Mini 4.6KBlackmagic URSA Mini Pro

Wooden Camera D-Box (RED DSMC2, V-Mount) SKU: 233900 Wooden Camera D-Box (Weapon/Epic-W/Scarlet-W/Raven, V-Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the RED DSMC2 cameras. The D-Box is completely tool-less for installation and utilizes our Cable-less interface which attaches directly to the back of the camera body, Base Expander Module, REDVolt Expander Module, and the OffHollywood O-Mods. Connectors on the -Box (Weapon/Epic-W/Scarlet-W/Raven, V-Mount) are contoured to match the Expander Modules' which allow for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port. The DC input on the D-Box is the same as the camera's LEMO allowing for an AC power supply or external power plate to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged. Authentic IDX V-Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap is obscured by the right side power outputs. Inside the D-Box is a 10A fuse and replacement fuses are included. Weight: 610gDimensions: 228.6 mm x 177.8 mm x 127 mm D-Box Connections 1. D-Tap - 12V Unregulated - This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO2. D-Tap - 12V Unregulated - This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO3. 2 pin LEMO - 12V Unregulated - ARRI standard wiring4. 2 pin LEMO - 12V Unregulated - ARRI standard wiring5. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities6. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities7. USB - 5v Regulated - Provides 2A for iPhone/iPad charging8. DC Input - 12-16V- DC input on the D-Box is the same as the camera's LEMO- Priority is given to DC Input to preserve battery charge when both sources connected
