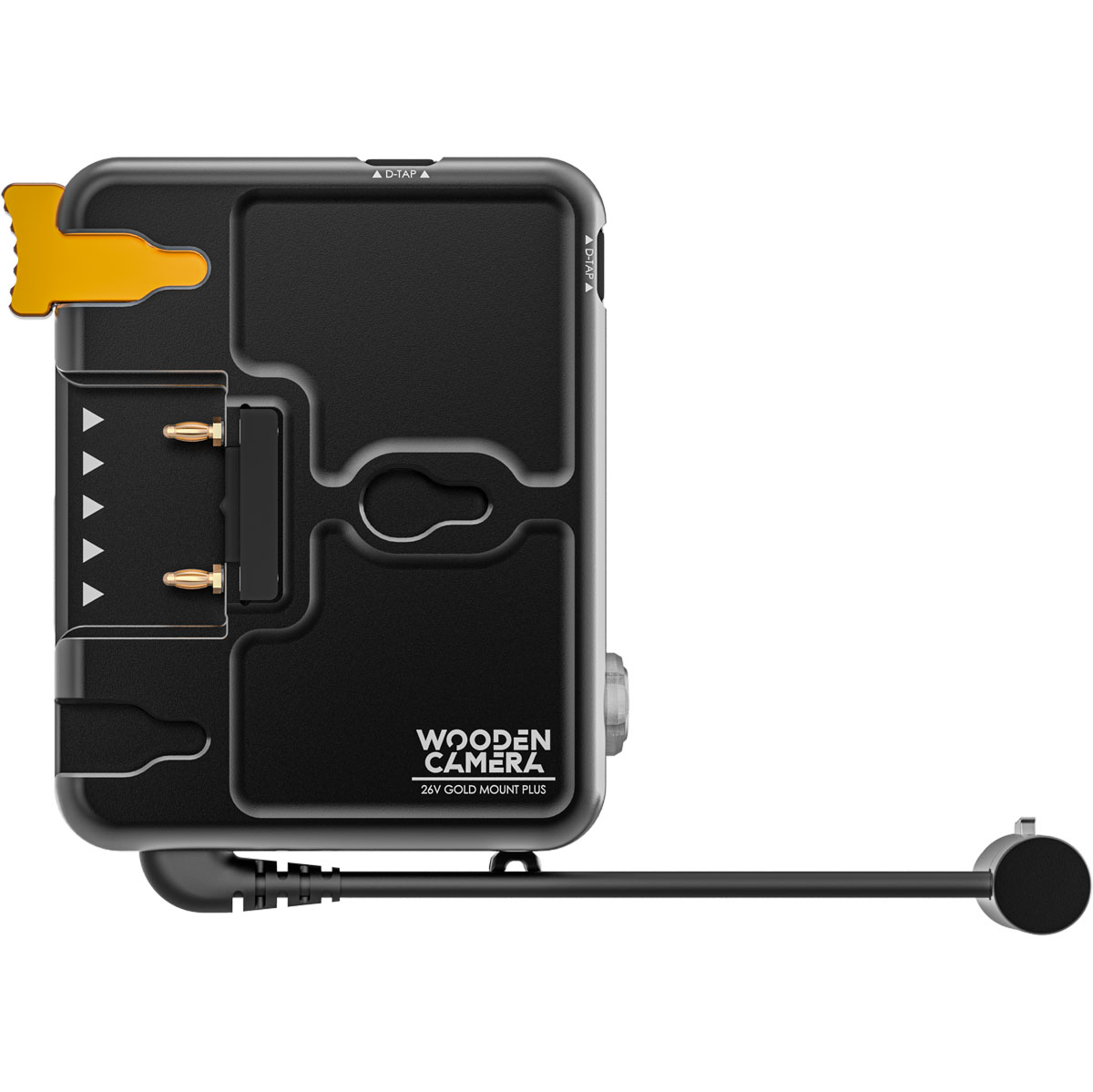

Wooden Camera Gold Mount Plus D-Box System for Sony VENICE

Wooden Camera Gold Mount Plus D-Box System for Sony VENICE

SKU: A00607

Designed to seamlessly integrate and maximize power efficiency on the Sony VENICE and Sony VENICE 2, the Gold Mount Plus D-Box expands power options for both the camera and accessories. Running 26v as an input source allows the camera’s native accessory outputs to expand to 2A. This system includes a 3.5-inch 5-pin D-Link cable and a Power Strip, providing enhanced connectivity and streamlined power management.

D-Box Power Strip features contoured connectors that match the camera’s profile and connector angles, ensuring all cables can be installed without collisions. This Power Strip communicates with the camera, allowing for the use of any ARRI standard start/stop trigger. It attaches to the top right side of the camera via a 3-pin connector and includes a Tape Hook threaded hole, offering a secure and reliable connection.

The Gold Mount Plus D-Box offers onboard hot-swap capability with DC-In power ensuring seamless transitions between power sources.

This D-Box includes 2x D-Tap connectors at 15V regulated, with a maximum 5.8A current rating shared between connectors, providing additional power flexibility for external accessories. With high-efficiency power distribution and flexible expansion options, the Gold Mount Plus D-Box™ is an essential upgrade for Sony VENICE users looking for enhanced power management and accessory support.

• Weight: 485.3 g

• Dimensions: 163 x 40.5 x 144 mm

Multiple power outputs for accessories

• 2x 3-pin connectors unregulated 26V with Run Stop
• 2x 2-pin at 15V regulated

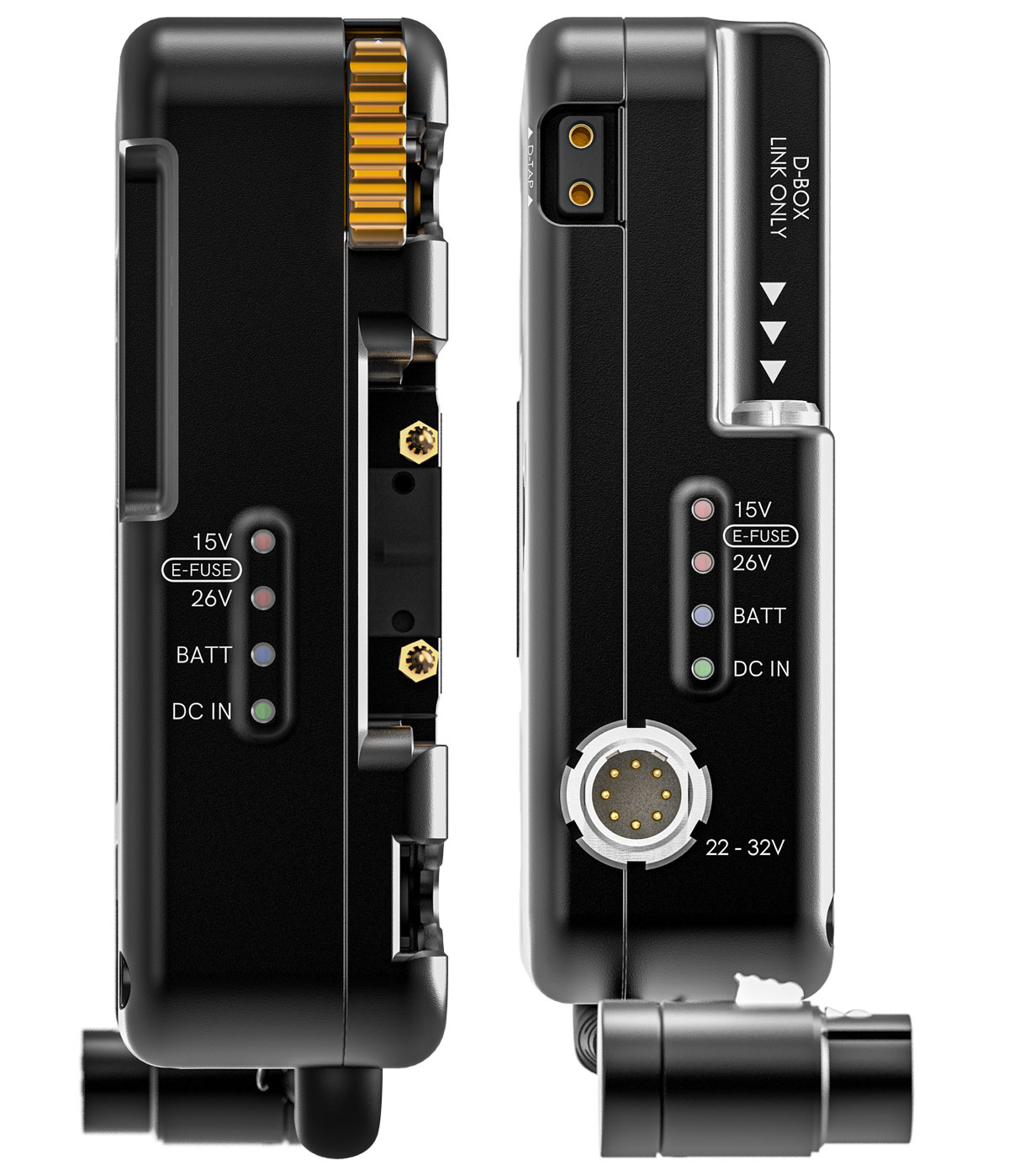

Connectors

• 4-Pin XLR Cable powers the camera body
• 8-Pin 2B connector for DC-In = 2x D-Tap ports
• 2x 3pin connector at 26V unregulated with Run Stop
• 2x 2pin at 15V regulated

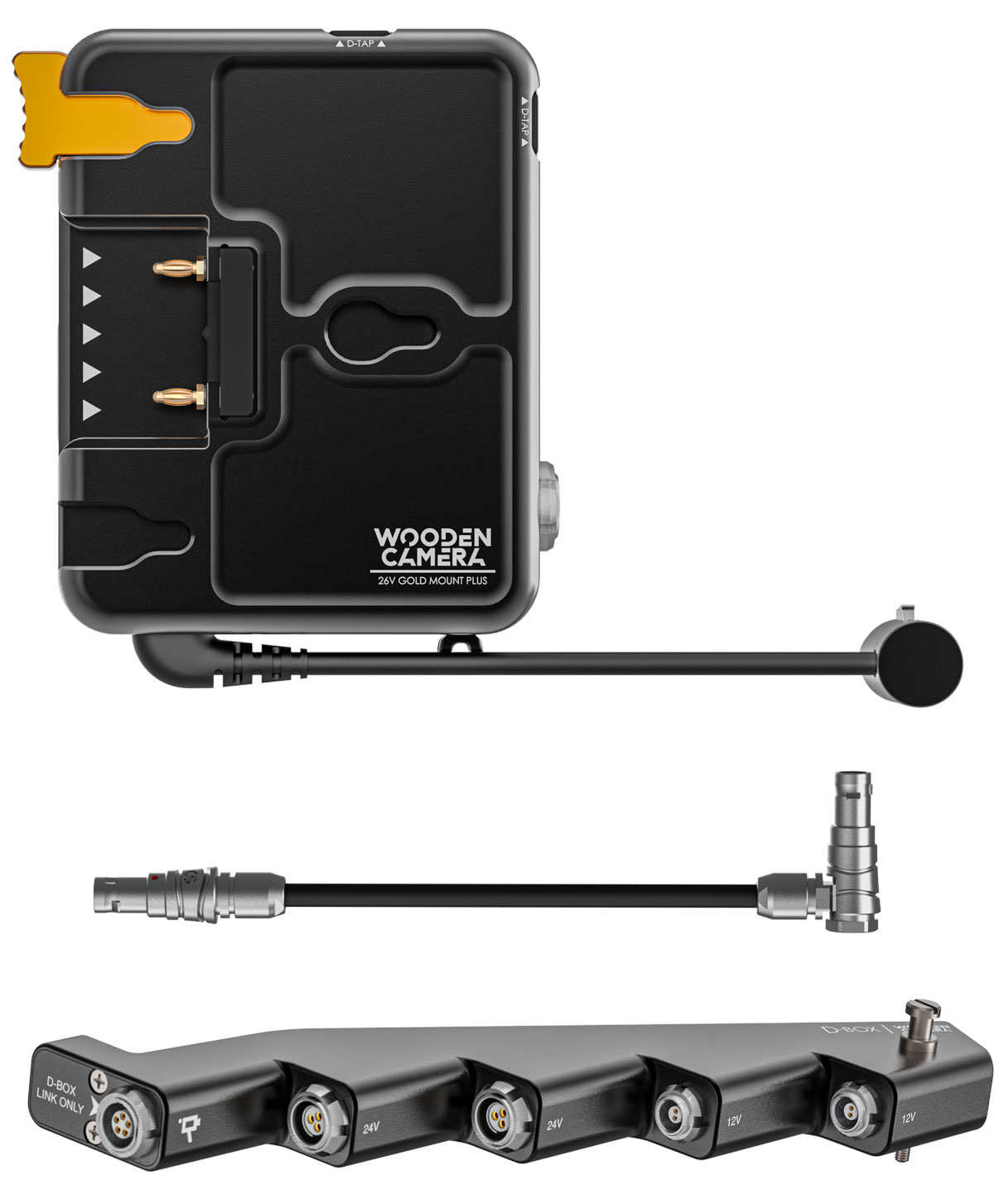

Included Items

• Gold Mount Plus D-Box for Sony VENICE
• D-Box Link Cable (5-Pin RA to 5-Pin Straight, 3.5in)
• D-Box Sony VENICE, VENICE 2 Replacement Power Strip
