Wooden Camera L-Mount to PL Mount Pro (Panasonic and Leica)

€450.00*

gross: €535.50

Free shipping

Available, delivery time: 1 day

Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.

Product number: SW23299

Manufacturer: Wooden Camera

EAN: 606184858071

Manufacturer product number: 271800

Delivery time: 1 day

Wooden Camera L-Mount to PL Mount Pro

SKU: 271800

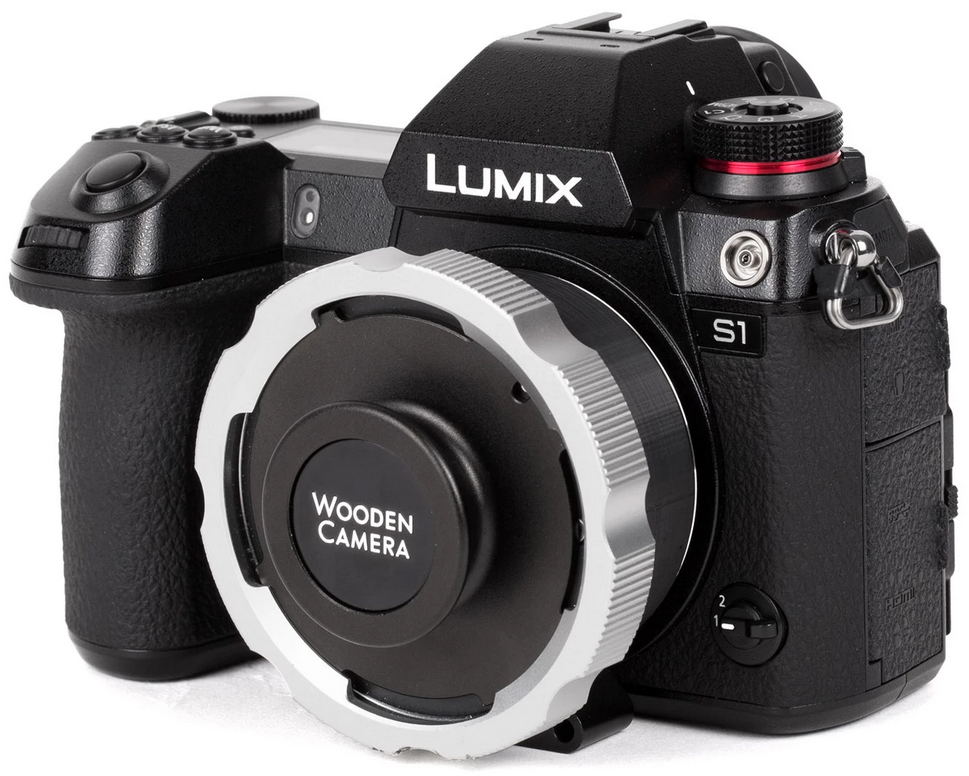

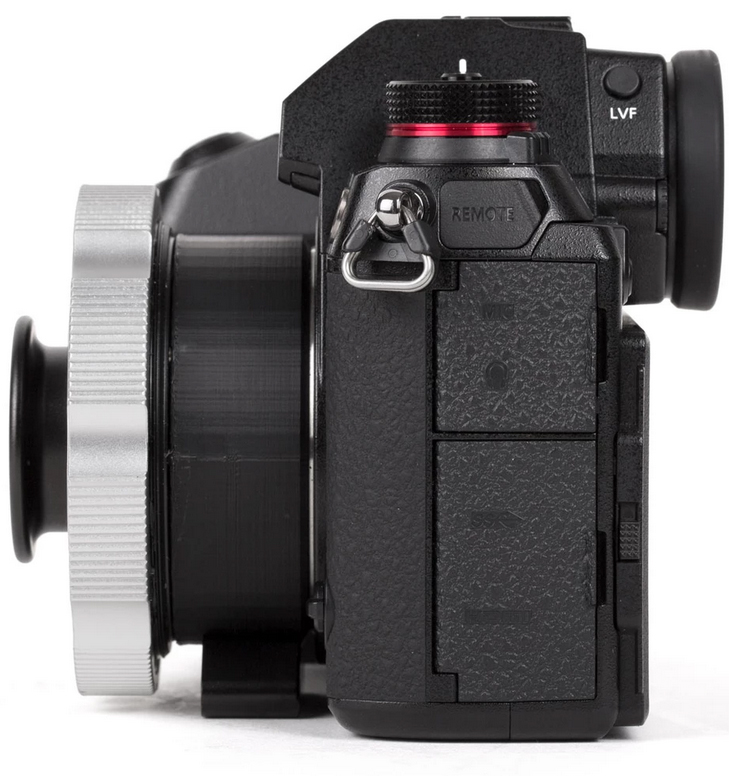

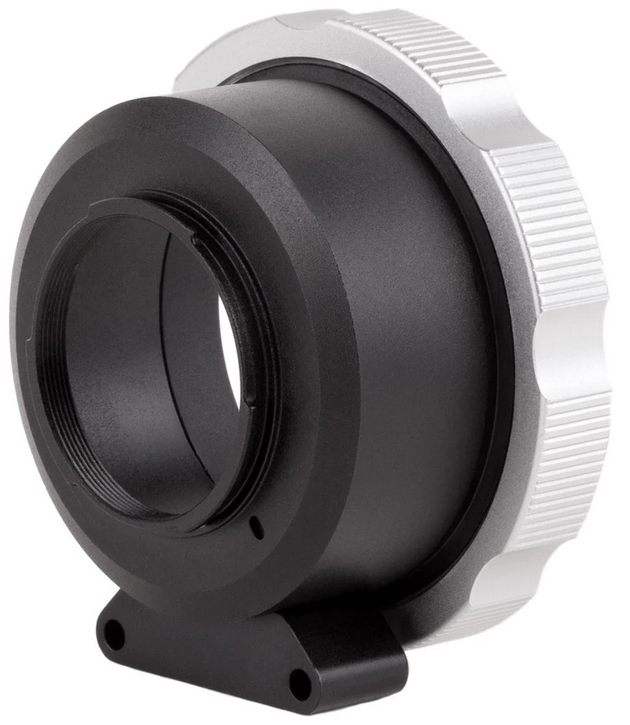

L-Mount to PL Mount Pro (Panasonic and Leica) is a shimmable version of our PL lens mount adapter that enables mounting of PL mount lenses onto the Panasonic and Leica L-Mount cameras. Mount includes a foot with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The foot can also attach directly to the front of the Unified DSLR Cage (Medium) by two included screws. PL Cap included to prevent dust from entering sensor area when lens is not attached.

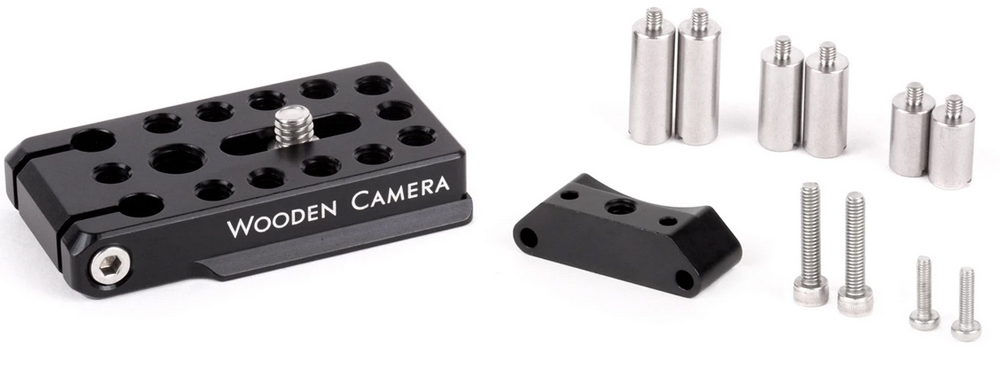

If you are using the L-Mount to PL Mount Pro (Panasonic and Leica) without a camera cage, you can use the included WC Lens Adapter Universal Support Foot to attach directly to the bottom of your camera and lens mount. This allows all the weight to be transferred from the lens mount to the bottom of the camera to avoid any flexing or damage that could occur when using heavier lenses.

In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The Wooden Camera L-Mount to PL Mount Pro adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.

Includes

(2) M4x20mm socket cap screw
(1) 1/4-20 Support Foot
(1) Universal Support Foot

Shim Set

stackable to achieve necessary thickness

Silver .0127mm (0.0005")
Amber .0254mm (0.001")
Purple .0381mm (0.0015")
Red .0508mm (0.002")
Green .0762mm (0.003")
Tan .1016mm (0.004")
Blue .127mm (0.005")

Specifications

Weight: 251g
Dimensions: 85.1 x 81.8 x 48 mm
