Wooden Camera Monitor Hinge (SmallHD Smart 5, 3/8"-16)

€85.00*

gross: €101.15

Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.

Product number: SW27581

Manufacturer: Wooden Camera

EAN: 655466621483

Manufacturer product number: A00267

Delivery time: 1-3 days

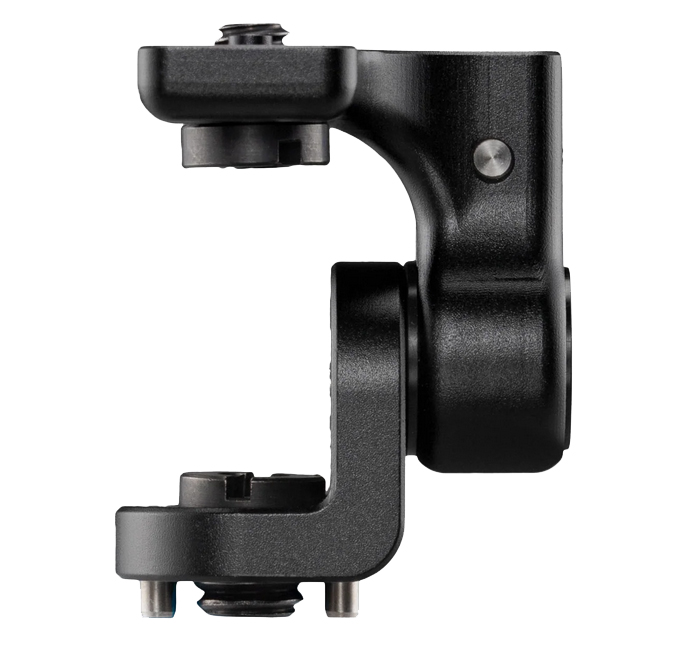

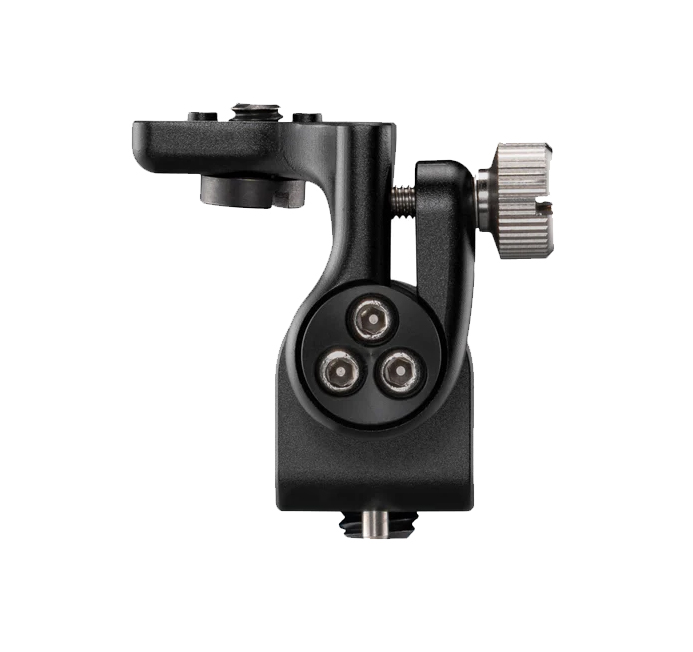

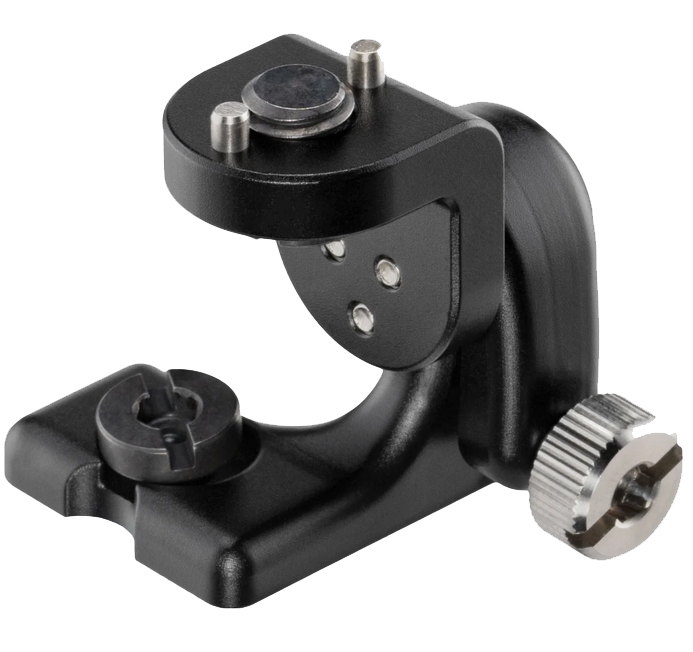

Monitor Hinge (SmallHD Smart 5, 3/8"-16)

SKU: A00267

Tilting hinge for mounting on-camera monitors to any 3/8"-16 mounting point with ARRI-standard locating pins. Designed with a 180-degree tilt for shifting viewing angle. Upper attachment features a 1/4”-20 screw with standard locating pins for SmallHD monitors and includes an additional rubber pad for attaching third party monitors. Included 15mm mounting spud allows for upper attachment to be quick released and mounted onto any 15mm rod clamp. This hinge was specifically designed to align perfectly with the pinholes with any of the SmallHD Smart 5 Monitors.

Includes: 15mm Mounting Spud
Weight: 58g
Dimensions: 27 x 39 x 51 mm

Details of the manufacturer

Wooden Camera
8 Mason Irvine
California 92618, United States

+1 855.966.3226

https://woodencamera.com/pages/contact-us

Details of the person responsible for putting the product on the European market

New Media AV Bauer und Trummer GmbH
Johannes Bauer
Pirnaer Straße 20
90411 Nürnberg, Germany

+49 911 5399-60

team@nmav.de

Related links of the manufacturer

Further products by Wooden Camera

Accessory Items

Wooden Camera Monitor Hinge Replacement Arm (SmallHD Smart 5)

Monitor Hinge Replacement Arm (SmallHD Smart 5)SKU: A00334Replacement Hinge Arm that allows you to mount any of SmallHD’s Smart 5 monitors on the opposite side of the pivot that is included with the Monitor Hinge (Smart 5 - ARCA, 3/8”-16 and Canon C Series). Features a 1/4”-20 screw with standard locating pins for SmallHD monitors and includes an additional rubber pad for attaching third party monitors. This hinge was specifically designed to align perfectly with the pinholes with any of the SmallHD Smart 5 Monitors.Weight: 57gDimensions: 38 x 50.8 x 31.7mm

€85.00*

gross: €101.15

Wooden Camera Monitor Hinge (SmallHD Smart 5, Canon C Series Cameras)

Monitor Hinge (SmallHD Smart 5, Canon C Series Cameras) SKU: A00264 Tilting hinge for mounting on-camera monitors to Canon EOS C70. Designed with a 180-degree tilt for shifting viewing angle. The lower mount features interlocking ridges with an integrated 1/4”-20 screw for compatible mounting with any standard Canon Accessory Mount, including the Canon C70 hot shoe, Top Handle (Canon C70), and Top Plate (Canon C70). Upper attachment features a 1/4”-20 screw with standard locating pins for SmallHD monitors and includes an additional rubber pad for attaching third party monitors. This hinge was specifically designed to align perfectly with the pinholes with any of the SmallHD Smart 5 Monitors. Weight: 57gDimensions: 38 x 50.8 x 31.7mm

€85.00*

gross: €101.15

Wooden Camera Monitor Hinge (SmallHD Smart 5, ARCA)

Monitor Hinge (SmallHD Smart 5, ARCA)SKU: A00265 Monitor Hinge (ARCA Swiss) can attach into ARCA dovetail like the one found on a RED KOMODO Top mount, which is sold separately. When combined with KOMODO Top Mount, system provides a direct 1/4”-20 mount for SmallHD monitors. Included rubber pad can be added for attaching third party monitors. A 15mm mounting spud is included and allows monitor arm to be quick released and attached onto Top Handle (ARCA Swiss) which is also sold separately. This hinge was specifically designed to align perfectly with the pinholes with any of the SmallHD Smart 5 Monitors Weight: 60 gDimensions: 50.8 x 50.8 x 38.1 mm

€85.00*

gross: €101.15

Wooden Camera Monitor Hinge (SmallHD Smart 5, 3/8"-16)

Monitor Hinge (SmallHD Smart 5, 3/8"-16)
