Wooden Camera PL Mount Modification Kit (Blackmagic Pocket Cinema Camera 6K / 6K G2 / 6K Pro)

PL Mount Pocket 6K
PL Mount Modification Kit
wooden camera PL Mount Modification Kit
wooden camera 274600
PL Mount Modification Kit Pocket 6K
PL Mount Pocket 6K
PL Mount Modification Kit
wooden camera PL Mount Modification Kit
wooden camera 274600
PL Mount Modification Kit Pocket 6K

€470.00*

gross: €559.30

Prices excl. VAT plus shipping costs

Available, delivery time: 1 day

Product number: SW22998

Wooden Camera PL Mount Modification Kit

SKU: 274600

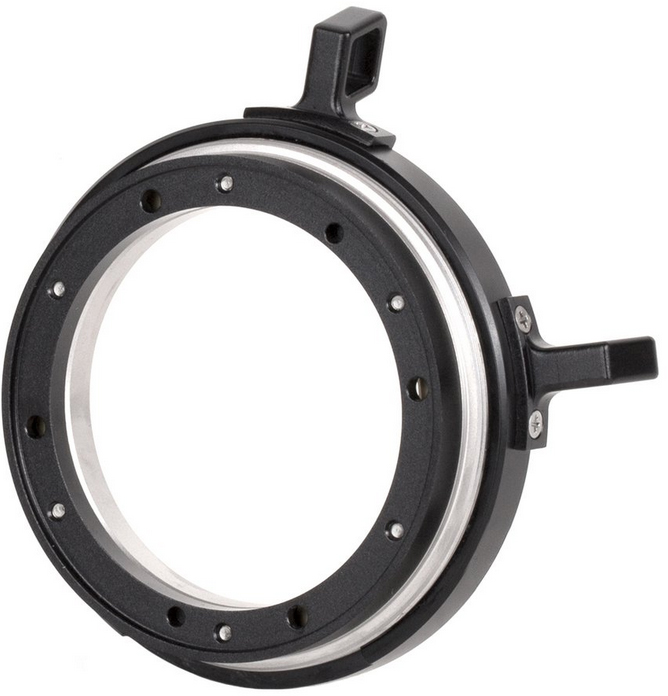

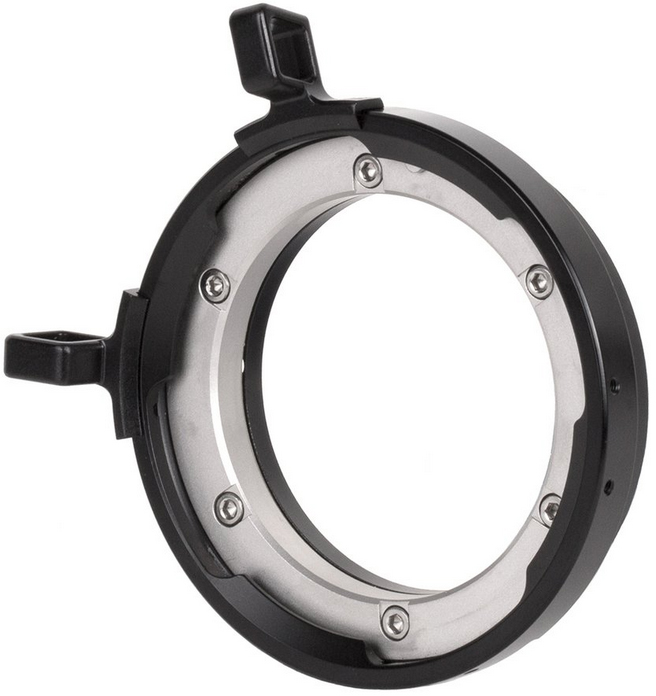

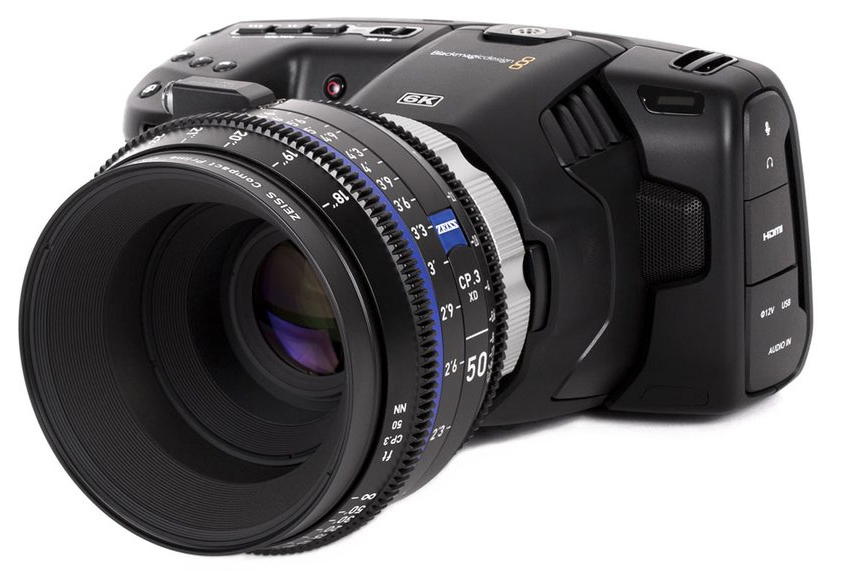

The PL Mount Modification Kit (Blackmagic Pocket Cinema Camera 6K / 6K Pro) allows users to convert their BMPCC6K camera to a PL Mount through a short modification process. All necessary tools are included in the kit. The PL Mount is made of stainless steel and aircraft grade aluminum and includes the PL port cap. Shims are provided with the kit for adjusting back focus and the appropriate shims are installed prior to shipping. Further adjustment should not be needed but can be checked using a wide angle lens and a focus chart. The BMPCC6K's own EF Mount screws are used to attach the PL Mount to the camera.

The modification process can be reversed. If you choose to go back to EF mount in the future, you can do it by reversing steps in the process, however, switching back and forth will eventually strip the plastic in your camera as the sensor block is made of a composite plastic material (it is strong but still plastic).

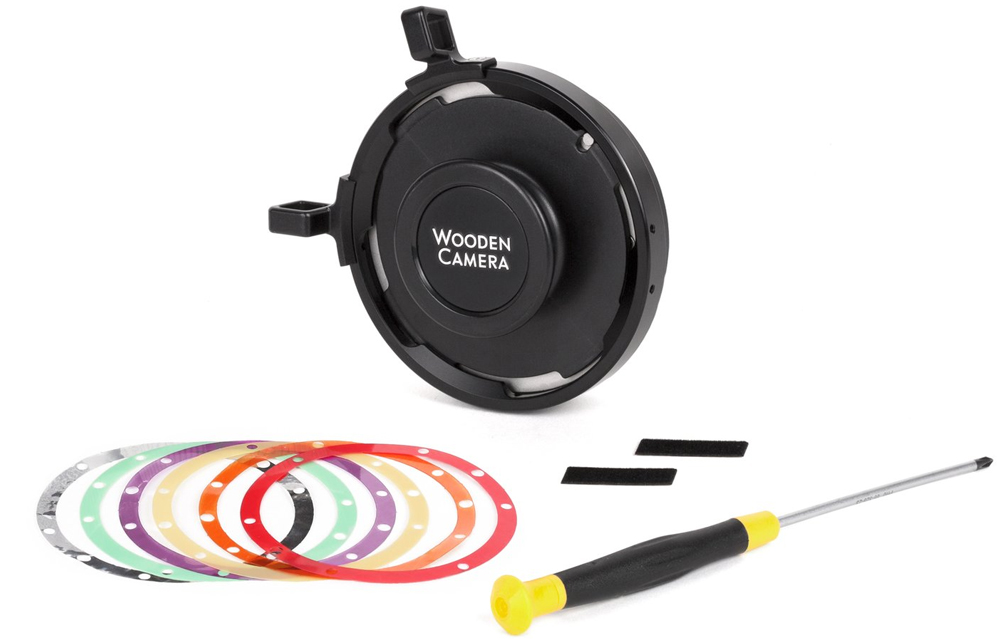

Includes

  • 1x Shim Set
  • 1x Jeweler's Screwdriver


Shim set

(stackable to achieve necessary thickness)

  • Silver .0127mm (0.0005")
  • Amber .0254mm (0.001")
  • Purple .0381mm (0.0015")
  • Red .0508mm (0.002")
  • Green .0762mm (0.003")
  • Tan .1016mm (0.004")
  • Blue .127mm (0.005")

Important Note: While the vast majority of modern, s35mm lenses are compatible, lenses with a rear protrusion longer than 33.5mm, measured from the PL flange, are not compatible and other lenses may not fit due to the shape of the original Blackmagic 6K body design. A list of incompatible lenses will be available but will be a work in process. A diagram will also become available soon which will detail the protrusion requirements for fitting into a modified BMPCC6K.

TOP-Handles - Camera cages - Camera plates - Camera brackets  -  Matte box - Battery plates - Power cables

Products from american producer Wooden Camera that offers useful solution for your video-audio equipment. The range of product concenrs



Related links of the manufacturer

Accessory Items

Free shipping
Wooden Camera L-Mount to PL Mount Pro
Wooden Camera L-Mount to PL Mount Pro (Panasonic and Leica)

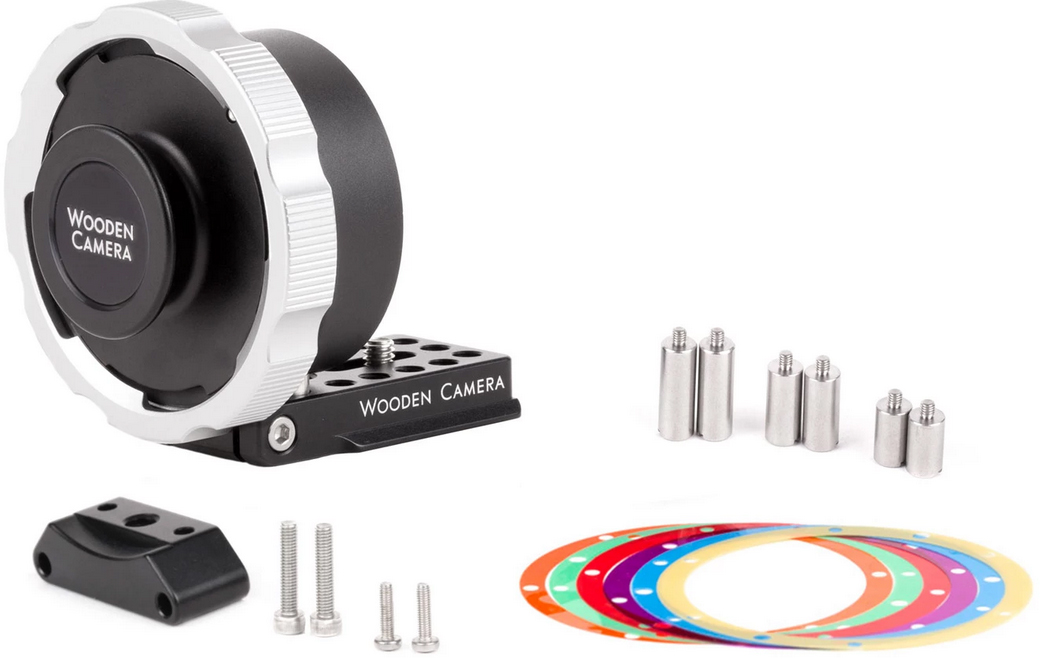

Wooden Camera L-Mount to PL Mount Pro SKU: 271800 L-Mount to PL Mount Pro (Panasonic and Leica) is a shimmable version of our PL lens mount adapter that enables mounting of PL mount lenses onto the Panasonic and Leica L-Mount cameras. Mount includes a foot with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The foot can also attach directly to the front of the Unified DSLR Cage (Medium) by two included screws. PL Cap included to prevent dust from entering sensor area when lens is not attached. If you are using the L-Mount to PL Mount Pro (Panasonic and Leica) without a camera cage, you can use the included WC Lens Adapter Universal Support Foot to attach directly to the bottom of your camera and lens mount. This allows all the weight to be transferred from the lens mount to the bottom of the camera to avoid any flexing or damage that could occur when using heavier lenses. In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The Wooden Camera L-Mount to PL Mount Pro adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. Includes (2) M4x20mm socket cap screw(1) 1/4-20 Support Foot(1) Universal Support Foot Shim Setstackable to achieve necessary thickness Silver .0127mm (0.0005")Amber .0254mm (0.001")Purple .0381mm (0.0015")Red .0508mm (0.002")Green .0762mm (0.003")Tan .1016mm (0.004")Blue .127mm (0.005") Specifications Weight: 251g Dimensions: 85.1 x 81.8 x 48 mm

€450.00*
gross: €535.50
Free shipping
wooden camera e-mount to pl mount adapter
Wooden Camera E-Mount to PL Mount Pro (Sony PXW-FS7)
Wooden Camera E-Mount to PL Mount Pro (FS7) SKU: 194000 E-Mount to PL Adapter Pro (FS7) is a shimmable Sony E-Mount to PL mount adapter that enables mounting of all PL mount lenses onto the Sony PXW-FS7 camera. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. Mount includes a support ring that integrates with the Top Plate (FS7), a highly recommended addition to this system. Loosen the support ring thumbscrew to quickly remove the mount and install another adapter. This adapter will also work with any E-Mount camera like the A7, A7r, A7s, A7 II, FS100, FS700, NEX-5, NEX-6, NEX-7, etc, however, the support ring would not be utilized. Support ring capable of integrating with Top Plate (FS7) 2 x 1/4-20x1/2" socket cap screws Shim set (stackable to achieve necessary thickness) Silver.0127mm    (0.0005")Amber.0254mm    (0.001")Purple.0381mm    (0.0015")Red.0508mm     (0.002")Green.0762mm     (0.003")Tan.1016mm     (0.004")Blue.127mm       (0.005") Specifications Weight 408 gDimensions 101.60 mm x 101.60 mm x 76.20 mm

€460.00*
gross: €547.40
Details
Blackmagic URSA Mini Pro PL Mount
Blackmagic URSA Mini Pro PL Mount Adapter

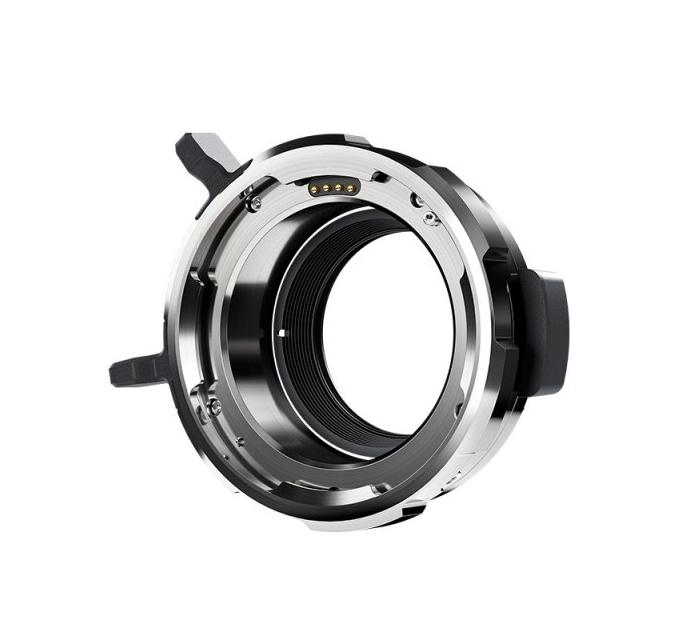

Blackmagic URSA Mini Pro PL Mount CINEURSAMUPROTPL Optional PL lens mount which features contact pins for compatibility with Cooke’s i/Technology protocol allowing lens information to be saved as metadata and used in software like DaVinci Resolve. The Blackmagic URSA Mini Pro PL Mount lets you use the world’s highest quality professional cinema lenses with your URSA Min Pro camera. The PL lens mount features contact pins for compatibility with Cooke’s i/Technology protocol so information such as lens make and model, serial number, iris setting, focus distance and zoom position can be saved as metadata and used in software like DaVinci Resolve. In addition, you can also power and control broadcast style cine-servo zoom lenses using the camera’s 12-pin Hirose connector. Im Lieferumfang enthalten Blackmagic URSA Mini Pro PL MountMoulded Mount CaseShim SetPL BaffleBaffle ToolSpare Mounting ScrewsPrinted Instructions

€210.00*
gross: €249.90
Free shipping
Wooden Camera MFT do PL Adapter
Wooden Camera MFT to PL Adapter (Pocket)

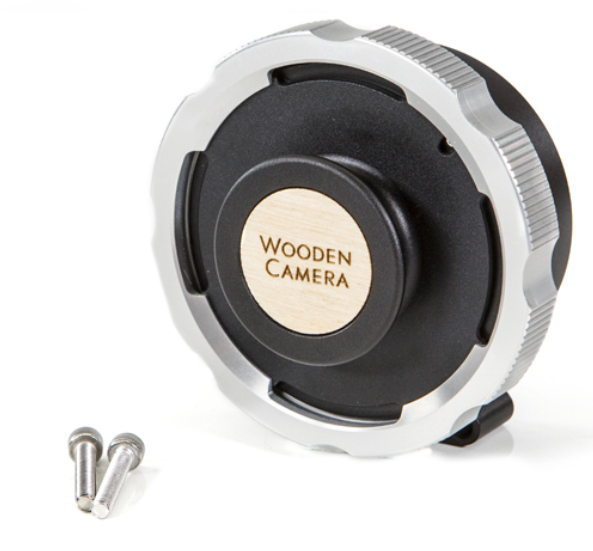

Wooden Camera MFT to PL Adapter (Pocket) SKU: 169600 Wooden Camera MFT Adapter (Pocket) is a micro four thirds lens mount adapter that enables mounting of all PL mount lenses onto the Blackmagic Design Pocket Cinema Camera (BMPCC) The Adapter includes a foot for attaching to a tripod directly eliminating strain on the camera. The foot can also attach directly to the Wooden Camera Pocket Cage by two included screws. PL Cap included to prevent dust from entering sensor area when lens is not attached. This MFT to PL Adapter will also work with any MFT camera like the BMCC MFT, GH3, AF100, Pocket Cinema Camera 4K etc. 1/4-20 foot for attaching tripod plate or supportIncludes 2 x M4 x 20 mm socket cap screw
