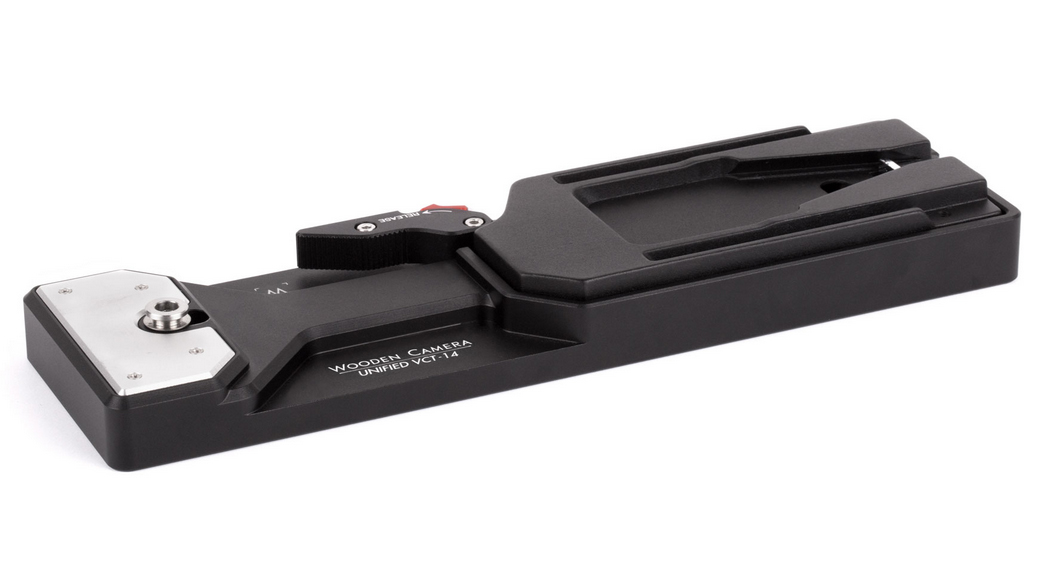

Unified VCT-14 Tripod Plate is Sony VCT-14 standard and features an all-metal construction making it very durable and solid. The receiver's foot is spring loaded to provide counter pressure on wedge plates which helps prevent wiggle. 1/4-20 and 3/8-16 holes on bottom for attaching to tripod plates. Works great with Unified VCT Wedge Plate.
TOP-Handles - Camera cages - Camera plates - Camera brackets - Matte box - Battery plates - Power cables
Products from american producer Wooden Camera that offers useful solution for your video-audio equipment. The range of product concenrs
SHAPE VCT Tripod Plate
SKU: VCTSH
The SHAPE VCT Tripod Plate is a quick-release tripod plate based on a V-lock system with delta attachment at the front and a rear pin at the back. Compatible with a wide variety of baseplates, it facilitates quick-release mounting/unmounting of professional broadcast cameras. The delta plate system at the front of this plate and the rear catch hook will allow you to quickly mount and dismount your camcorder from a tripod adapter.
Features
Made of CNC aluminum Quickly mount and dismount your camcorder from a tripod Quick-release latch to unlock the baseplate from the VCT plate 1/4″-20, 3/8″-16 threaded holes underneath to attach tripod quick-release plates
SmallRig VCT-14 Quick Release Tripod Plate
SKU: 2169
Smallrig VCT-14 Quick Release Tripod Plate 2169 is Sony VCT-14 standard which enables you to quickly attach and remove your camcorder from a tripod adapter by using the lever release. The all-metal construction plate offers a v-wedge adapter which is coincidence with the Standard VCT-14 Shoulder Plate. Additionally, the VCT tripod plate features multiple 1/4"-20 & 3/8"-16 threads on the bottom for attaching any QR plate to a tripod. It works perfectly with SmallRig Sony VCT-14 Shoulder Plate 2837.
Dimensions:280 x 80 x 26.5mmNet Weight:693gMaterial: Aluminum Alloy / Stainless Steel

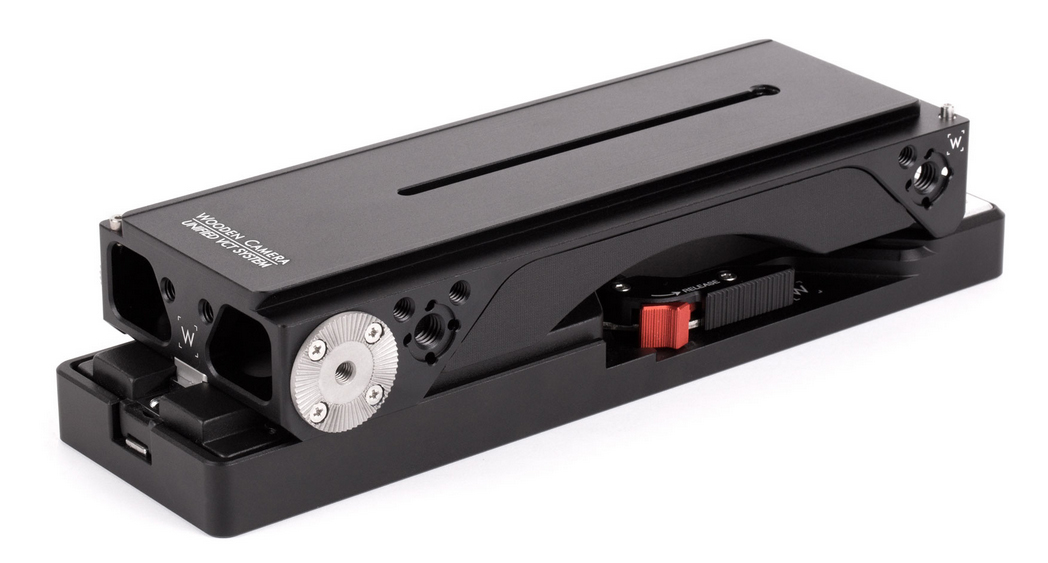

Wooden Camera Unified VCT Wedge Plate
SKU: 223300
Unified VCT Wedge Plate is a Sony VCT-14 standard device that interfaces with the bottom of all Unified Baseplates. The special reduced height ARRI dovetail shape allows each Unified camera rig to be quickly installed and balanced properly over your shoulder. Safety pin and stopper screws on the ends prevent accidental removal. Threaded M6 ARRI standard rosettes are found on each side and can be combined with the Rosette Standoffs and Rosette Arms for a quick, handheld configuration. Also present are 1/4-20 threaded holes and the ARRI standard accessory mounts (3/8-16 threaded hole with locating pins adjacent). At the rear of the wedge plate, a knob is present which can be tightened after installing onto the VCT-14 Tripod Plate to prevent any potential wiggle. A key slot is also present on the top center for times when you might need to attach the Wooden Camera Unified VCT Wedge Plate directly to the camera bottom using the included 1/4-20 and 3/8-16 low profile screws.
Unified VCT Wedge Plate includes
2 x 1/4-20 Low Profile Screws2 x 3/8-16 Low Profile Screws
Wooden Camera Unified Baseplate (Alexa Mini)
SKU: 222300
Unified Baseplate (Alexa Mini) is a quick release baseplate that provides lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have two locking thumbscrews per side. This baseplate can also be purchased as a set as the Unified Cage (Alexa Mini). The baseplate quick releases in two ways, giving the user the option to take the 15mm lightweight rods or to leave them behind.
To remove the camera and leave the LW 15mm rods behind, unlock the right side thumbscrew, slide the camera backwards a short distance, and lift straight up. The dovetail attached to the bottom of the camera is an ARCA Swiss standard shape which can integrate with many third party products. Additionally, there are threaded 1/4-20 holes on the bottom for attaching to gimbals or tripod plates when necessary. Also on this upper dovetail is a vertical 15mm rod opening which can be used to support a lens adapter foot directly in front of the camera body.
The bottom of the Wooden Camera Unified Bridgeplate is comprised of the Lower Quick Dovetail which has 1/4-20 and 3/8-16 threaded holes for attaching to tripod plate or ARRI standard bridgeplate such as Unified Bridgeplate (19mm) or Unified Bridgeplate (15mm Studio). To remove the camera from the included Lower Quick Dovetail and take the 15mm lightweight rods with you, unlock the left thumbscrew, slide the baseplate backwards a short distance, and lift up. This action exposes an integrated ARRI dovetail slot on the bottom which can attach directly to any 2060 Dovetails, Safety Dovetails, or Shoulder Rigs.
For VCT-14 compatible mounting options, the Unified Baseplate can be attached to the Unified VCT Wedge Plate, providing easy counterbalance ability while on the shoulder. This could then be attached to the Unified VCT-14 Tripod Plate which would be attached to the tripod head.
Additional Unified Lower Quick Dovetails can be puchased to mount to gimbals, jibs, cranes, etc, making for quick and repeatable camera transitions.Camera Compatibility: ARRI Alexa Mini
Unified Baseplate (Alexa Mini) Features
Upper dovetail based on ARCA Swiss dovetail shapePass through 15mm lightweight rod openings with two locking thumbscrews per rodLower dovetail based on ARRI standard dovetail shape1/4-20 and 3/8-16 holes for attaching to tripod plates and Bridgeplates
Includes
4 x M4 x 8mm Socket Cap Screws
Specifications
Weight 498.9 gDimensions 50.8 mm x 152.4 mm x 152.4 mm
