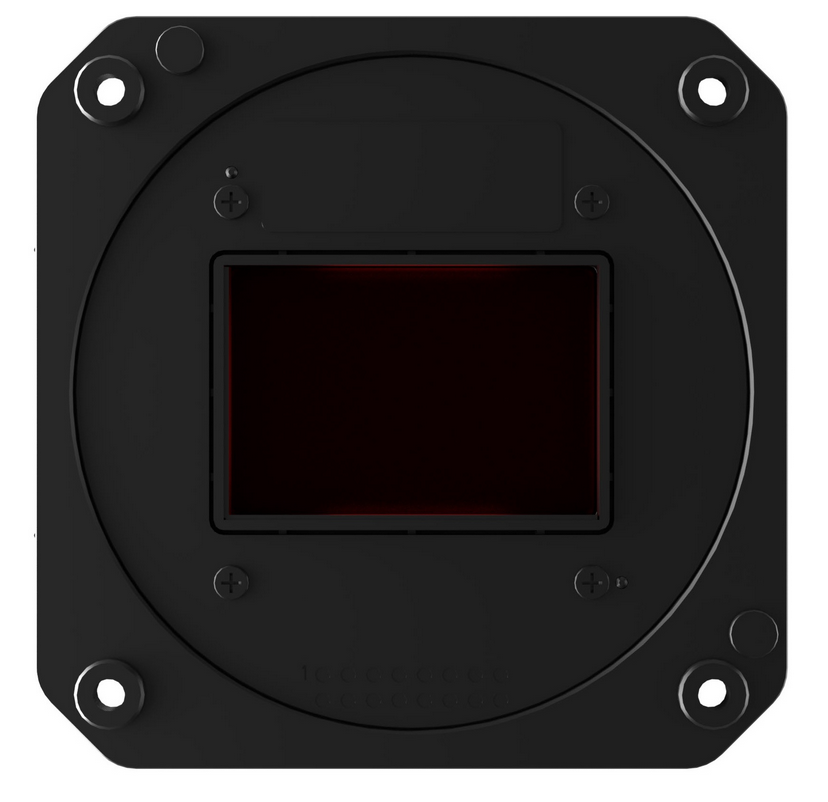

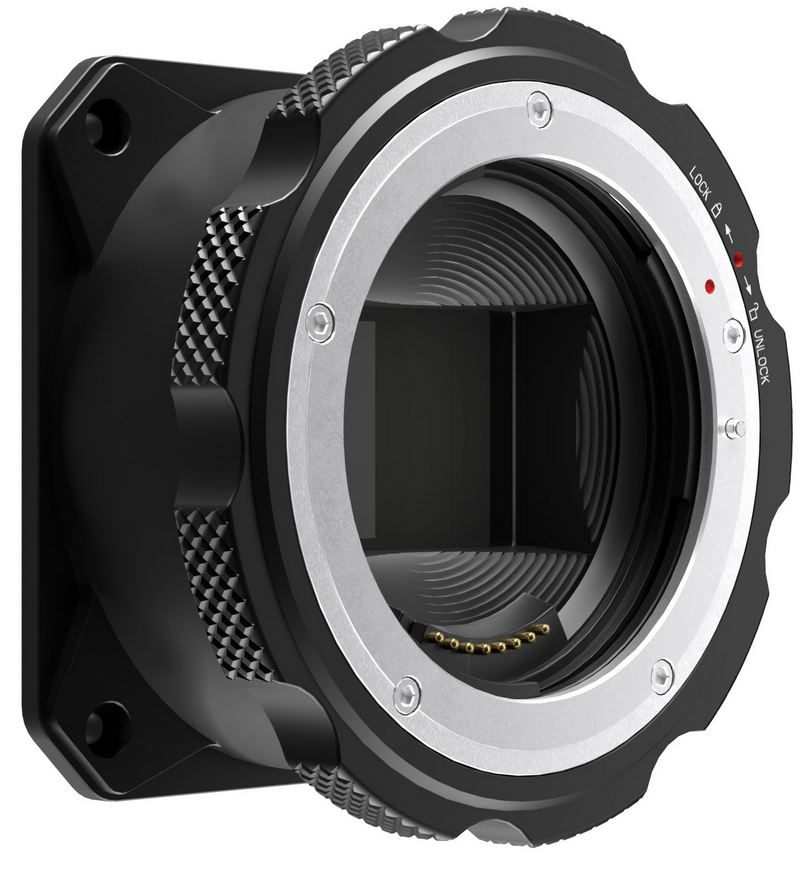

Z CAM EF MOUNT FOR Z CAM E2 FLAGSHIP SERIES

Z CAM E2-F6 Mark II FULL FRAME 6K CINEMA CAMERASKU: ZCE2F6M2 The Z CAM E2 Mark II series represents the latest generation of professional cinema cameras, renowned for their exceptional image quality, robust design, and versatile functionality. With their compact and modular construction, these cameras can be easily adapted to meet a wide range of creative needs.They support various recording formats, including ProRes 4:2:2, H.265, and ZRAW, and feature advanced connectivity options like HDMI 2.0 and Gigabit Ethernet for live streaming and remote control.The Z CAM E2-F6 Mark II features a full-frame CMOS sensor, offering impressive resolution and versatility. It supports 6K recording at up to 60 frames per second and 4K at up to 120 frames per second. With a dynamic range of 15 stops, it captures incredible detail in both shadows and highlights.The native ISO range starts at 400, making the camera particularly effective in low-light environments. Equipped with a standard EF mount, it also supports optional lens mounts such as PL, M, and MFT to accommodate a wide range of cine and photography lenses.The E2 Mark II series cameras boast extended dynamic range, native dual-ISO capabilities, and the ability to record 6K and 4K video at high frame rates. They include precise Genlock synchronization for multi-camera setups and utilize CFexpress Type-B cards for fast and reliable data storage. With Power over Ethernet (PoE+) support and an integrated gyroscope sensor for stabilization, they are an excellent choice for demanding film projects. FeaturesFull-frame CMOS sensor for exceptional image quality6K video recording at up to 60 fps, 4K at up to 120 fpsDynamic range of 15 stopsSupports ProRes 4:2:2, H.265, and ZRAW formatsNative ISO range starting at 400, excellent for low-light performanceStandard EF mount, compatible with optional PL, M, and MFT mountsBuilt-in gyroscope sensor for enhanced stabilizationPower over Ethernet (PoE+) and Genlock support for multi-camera setupsStorage on CFexpress Type-B cards Technical dataCameraSensor Type: Full Frame CMOS SensorSensor Size: 35.9 x 24.0 mm (Diagonal 43.3mm)Effective Pixels: 24.63MDynamic Range: 15 stopsLens Mount: EF Mount w/active lock (interchangeable to optional PL, LPL and M)Microphone: Built-in Stereo Microphone RecordingVideo Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*RAW over HDMI" ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)Audio Format: 16-bit 48 kHz =Audio Encoder: AAC / PCM (for MOV only)File Format: MOV / MP4Record Mode: Video / Time Lapse Video / Still Image CaptureResolution & Max Frame Rate30fps max at Open Gate (6064x4040)48fps max at C6K (6064x3196)48fps max at 6K (5760x3240)30fps max at 5K 4:3 (5376x4032)60fps max at C5K (5120x2700)30fps max at 5K 6:5 (4848x4040)60fps max at 5K (4800x2700)50fps max at 4K 4:3 (4096x3072)*30fps max at C4K 3:2 (4096x2732)90fps max at C4K (4096x2160) *120fps max at C4K 2.4:1 (4096x1728)30fps max at 4K 6:5 (4080x3400)90fps max at 4K (3840x2160)170fps max at S16 16:9 (2112x1188)170fps max at 1080P (1920x1080) * supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode

Z CAM E2-M4 Mark II 4K CINEMA CAMERASKU: ZCE2M4M2The Z CAM E2-M4 Mark II Professional 4K Cinema Camera adds connectivity and stabilization improvements to the previous camera model while maintaining its interchangeable Micro Four Thirds lens mount, Flagship Series housing, and the ability to record ProRes RAW to select Atomos recorder/monitors. The camera records DCI and UHD 4K at up to 160 fps, as well as HD to 240 fps, all to a CFexpress Type B card (not included). Live stream RTSP, RTMP, and SRT protocols directly from the camera via a Gigabit Ethernet connection. The camera features a 4/3" sensor with 10-bit color support and a nominal 13 stops of dynamic range with 16 stops when set to WDR. ISO settings include 500 and 2500 in native mode and a total manual range of 500 to 102,400.The E2-M4 Mark II features both HDMI and 3G-SDI output ports for expanded connectivity in comparison to its predecessor. On top of this, Timecode and Genlock BNC inputs are built-in, allowing you to forgo additional adapters. Use the USB-C, 2.5mm LANC, and Serial CTRL ports to facilitate camera control with compatible ecosystems. A Gigabit Ethernet port also helps control the camera and live stream, and it even supports PoE+. Audio connectivity includes a 3.5mm stereo jack input, 5-pin LEMO input, and 3.5mm stereo jack output. Technical dataCameraSensor Type: 4/3" CMOS SensorSensor Size: 19.0 x 13.0 mm (Diagonal 21.63mm)Effective Pixels: 10.71MDynamic Range: 13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)Lens Mount: MFT Mount w/active lock (interchangeable)Microphone: Built-in Stereo MicrophoneRecordingVideo Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*RAW over HDMI: ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)Audio Format: 16-bit 48 kHzAudio Encoder: AAC / PCM (for MOV only)File Format: MOV / MP4Record Mode: Video / Time Lapse Video / Still Image CaptureResolution & Max Frame Rate30fps max at C4K Low Noise (4096x2160)120fps max at C4K (4096x2160)150fps max at C4K 2.4:1 (4096x1728)30fps max at 4K Low Noise (3840x2160)120fps max at 4K (3840x2160)160fps max at 4K 2.4:1 (3840x2160)30fps max at 3696x2772 Low Noise60fps max at 3696x277260fps max at 3312x2760170fps max at S16 16:9 (2752x1548)160fps max at S16 (2704x1600)240fps max at 1920x1080

Z CAM E2-S6 Mark II SUPER 35mm 6K CINEMA CAMERASKU: ZCE2S6M2The Z CAM E2-S6 Mark II comes with a Super 35mm CMOS sensor, offering flexibility in professional production settings. It supports 6K recording at up to 60 frames per second and 4K at up to 100 frames per second. With its dynamic range of 14 stops, it delivers exceptional image quality for artistic and commercial projects. This model also features a native ISO range starting at 400, making it suitable for a variety of lighting conditions. The EF mount is standard but can be replaced with PL, M, or MFT mounts for maximum compatibility with different lenses. FeaturesSuper 35mm CMOS sensor for professional use6K video recording at up to 60 fps, 4K at up to 100 fpsDynamic range of 14 stopsSupports ProRes 4:2:2, H.265, and ZRAW formatsNative ISO range starting at 400 for versatile lighting conditionsStandard EF mount, compatible with optional PL, M, and MFT mountsBuilt-in gyroscope sensor for enhanced stabilizationPower over Ethernet (PoE+) and Genlock support for multi-camera setupsStorage on CFexpress Type-B cards Technical dataCameraSensor Type: Super 35mm CMOS SensorSensor Size: 23.5 x 15.7 mm (Diagonal 28.3mm)Effective Pixels: 26.11MDynamic Range: 14 stopsLens Mount: EF Mount w/active lock (interchangeable to optional PL, LPL and M)Microphone: Built-in Stereo Microphone RecordingVideo Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*RAW over HDMI: ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)Audio Format" 16-bit 48 kHzAudio Encoder: AAC / PCM (for MOV only)File Format: MOV / MP4Record Mode: Video / Time Lapse Video / Still Image CaptureResolution & Max Frame Rate30fps max @ Open Gate (6244x4168)48fps max @ C6K (6144x3240)60fps max @ 6K 2.4:1 (6144x2592)48fps max @ 6K (5760x3240)30fps max @ 5K 4:3 (5552x4164)50fps max @ 5528x311260fps max @ C5K (5120x2700)30fps max @ 5K 6:5 (4992x4160)60fps max @ 5K (4800x2700)30fps max @ C4K 3:2 (4096x2732)30fps max @ C4K Low Noise (4096x2160)75fps max @ C4K (4096x2160)100fps max @ C4K 2.4:1 (4096x1728)30fps max @ 4000x400030fps max @ 3840x384030fps max @ 4K Low Noise (3840x2160)75fps max @ 4K (3840X2160)50fps max @ 3456x345690fps max @ S16 16:9 (3392x1908)120fps max @ 2.8K (2868x1512)120fps max @ 1920x1080* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode
