Zacuto Kameleon EVF Pro

Zacuto

€2,080.50*

gross: €2,475.80

Prices excl. VAT plus shipping costs

Free shipping

Available, delivery time: 3-5 days

Product number: SW22546

Manufacturer: Zacuto

Manufacturer product number: Z-KEVF

Delivery time: 3-5 days

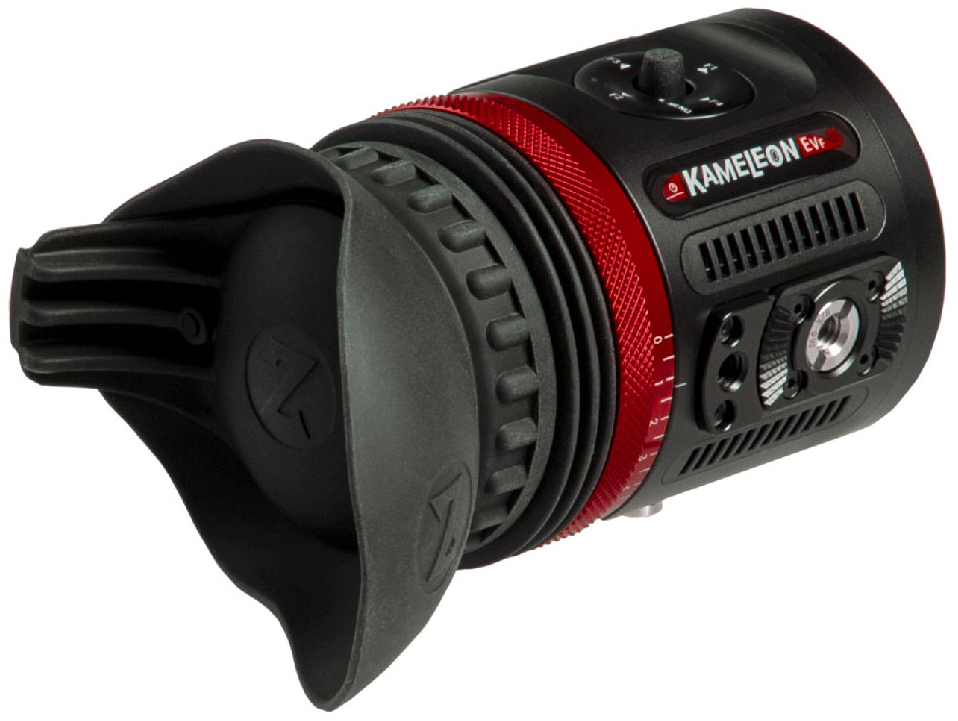

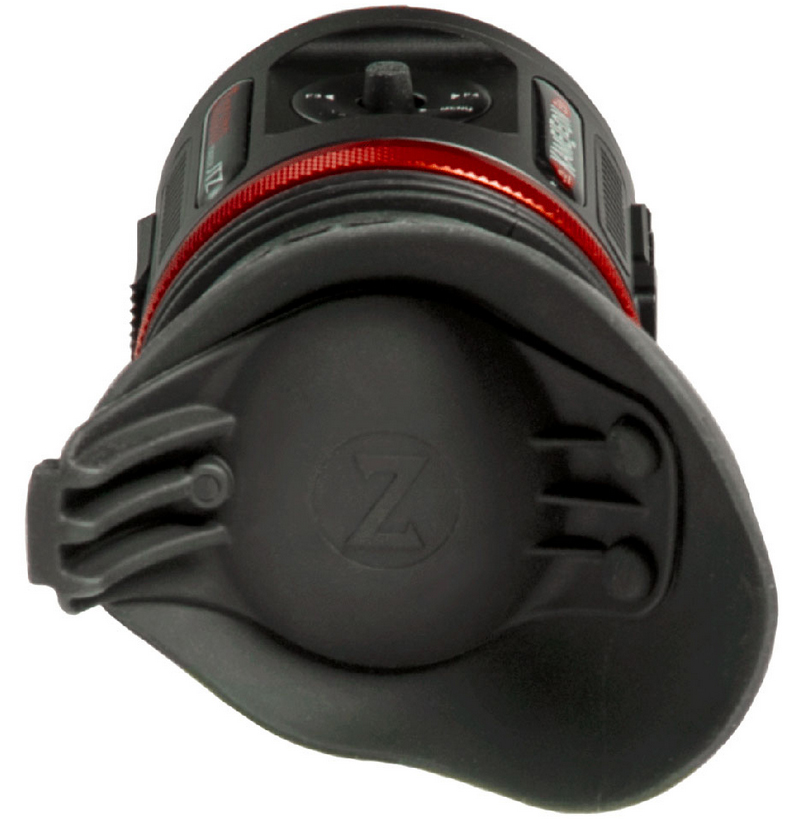

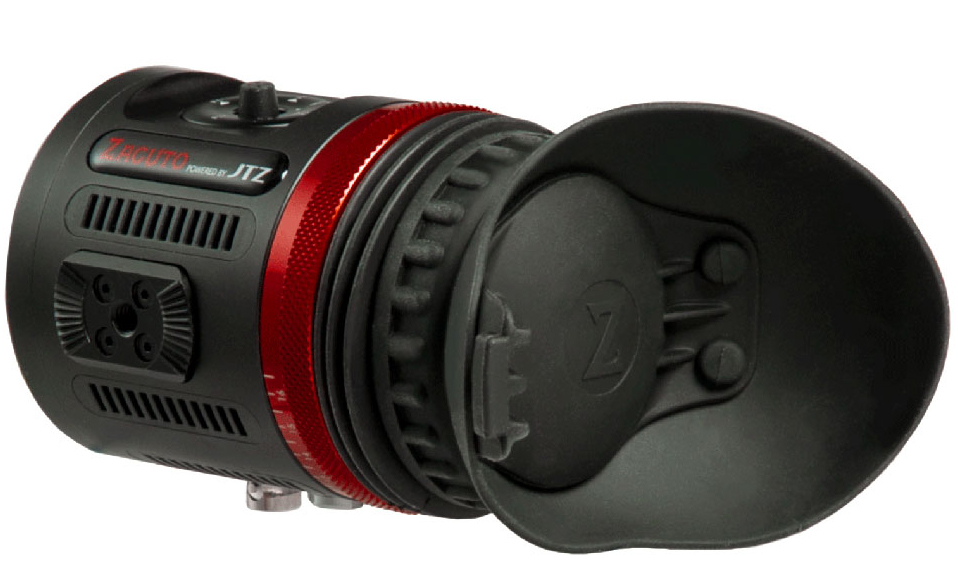

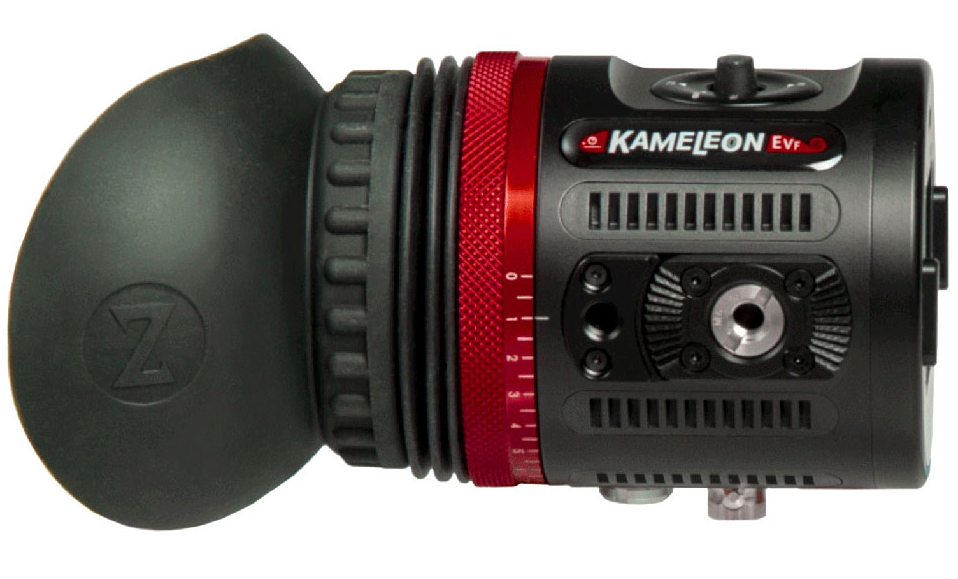

Zacuto Kameleon EVF

SKU: Z-KEVF-P

Zacuto Kameleon EVF is a powerful, 1080p Micro-OLED EVF for All Your SDI and HDMI Cameras. The Kameleon EVF offers unique features like 4K HDMI input downscaled to 1080P, 3D LUTS.

The Zacuto Kameleon differs over the Graticals by offering 4K HDMI input downscaled to 1080P, 3D LUTS and a larger screen with camera data overlayed on the image. The Gratical EVFs have a 16x9 image with space underneath for Vectorscope, Waveform, and Histogram.

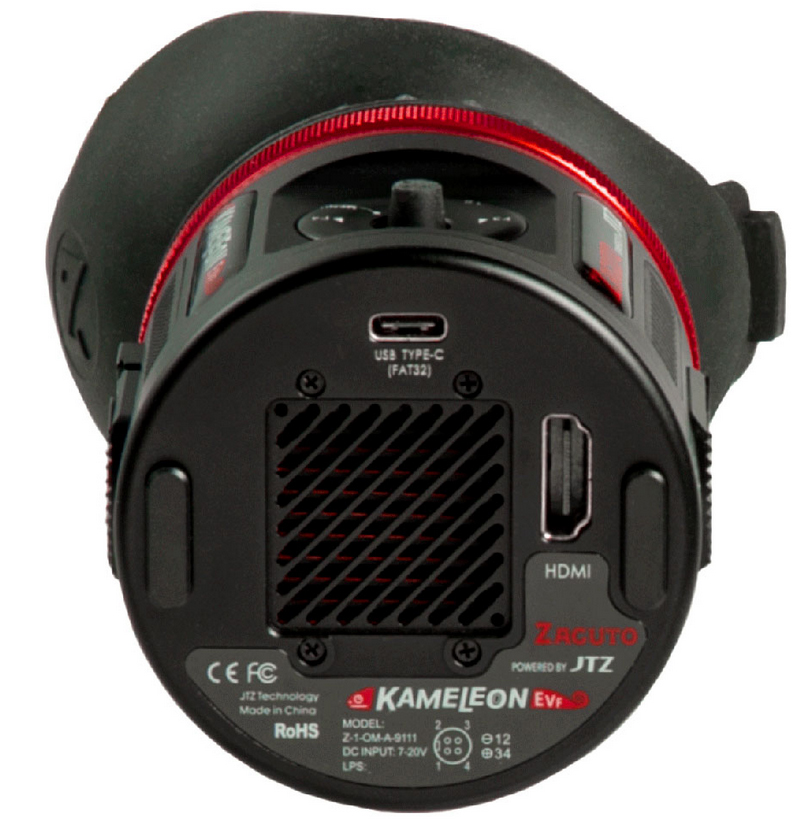

The Kameleon EVF has a 4 pin Lemo power jack and a single SDI and HDMI input. The Kameleon is the perfect EVF for Mirrorless and DSLR cameras and it's SDI input adds versatility so that you can use it on a wide variety of other cameras. Like all Zacuto EVFs, It features a built-in -1 to +4 diopter range and Zacuto’s patented essential anti-fog coating formula. It never fogs in humidity or freezing temperatures. An auto-closing eyecup door helps prevent your display from getting burned by the sun.

Tech Specifications

Dimensions: 12,4 cm x 7 cm x 7,2 cm
Weight: 425 g

Micro-OLED Display

Dimension: 0.71” diagonal
Contrast: 10,000:1
Color depth: 24-bit RBG
6.5 million pixels for a hugely expanded
Pixel Info - 3103 PPI

Power

Power input: 7-20V
Power input port: 4 pin LEMO 0B
Power consumption: 5W

Connections

HDMI x 1
SDI x 1
HDMI input: 4K DCI, 4K, 1080p, 1080i, 720p
SDI input: 3G SDI, 1080p, 1080i, 720p

Physical Features

Joystick menu/function button
Adjustable diopter ring
Drop in diopters for additional correction (+1, +2, +3, +4)
Auto Closing Eyecup
2-step anti-fog shields
Arri Rosette on both sides
Cooling fan

Software Features

Custom Scaling
Frame lines
Calibration Settings
Center marker/crosshair
Anamorphic
4:1 Zoom
Image Flip
False color
Red Line Peaking
Freeze Frame
Zebras
Histogram
Audiometers
4 programmable hotkeys
3D LUT import
SMPTE Color Bars

Details of the manufacturer

Zacuto
401 West Ontario, suite 250 & 125
Chicago, IL 60654, United States

312-863-3456 ext. 0

sales@zacuto.com

Details of the person responsible for putting the product on the European market

BPM Broadcast & Professional Media GmbH
Obenhauptstraße 15
22335 Hamburg, Germany

+49 (0) 40 / 55 76 24 – 55

Zacuto@bpm-media.de

Warnings and safety information

Zacuto Product Instructions
