Zacuto Sony Z-Finder For FS7, FS7 II, FX9

Zacuto Sony Z-Finder For FS7, FS7 II, FX9

SKU: Z-FIND-S79

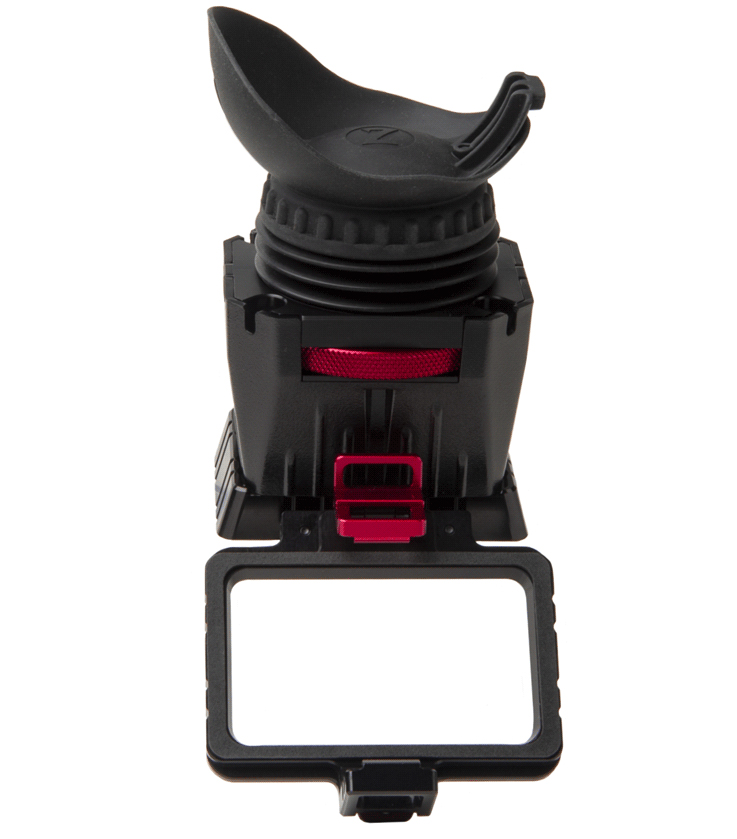

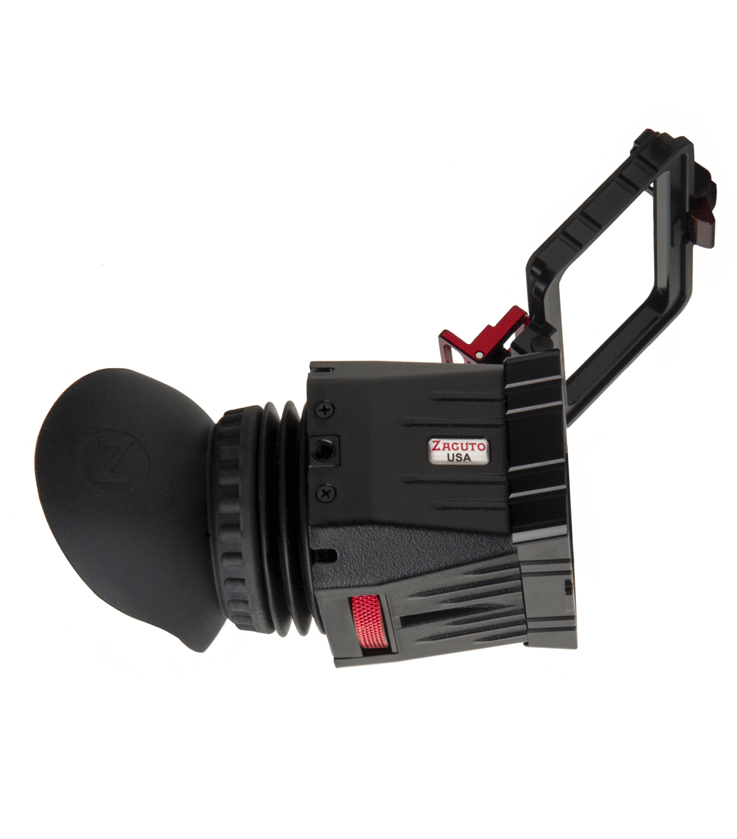

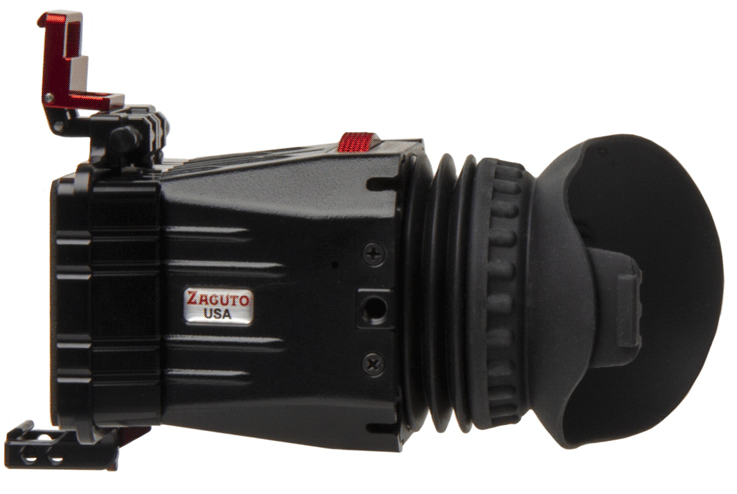

The Zacuto Sony Z-Finder is specifically designed to suit the shape and size of the monitor included with the Sony FX9, Sony FS7 and Sony FS7 II. The  Z-Finder comes with a flip up frame designed to clamp onto the Sony FS7, FS7 II, or FX9 LCD. The Zacuto Z-Finder Pro will pop on and off the frame for quick shooting. The red lever at the bottom of the frame allows you to quickly flip the Z-Finder up without removing it from the frame. It can be flipped open to 140 degrees. If a producer/client/director etc. wants to see into the viewfinder, you can flip it open instead of having to adjust so they can get their eye to the loupe. You can also pop off the Z-Finder and use the Sony LCD as a monitor.

This Z-Finder will magnify the LCD screen by 2x and has a diopter for specific focus tuning. It cuts out any extraneous light and offers an initial point of stability by pressing your eye against our comfy, large eyecup. The Z-Finder comes with a 40mm diameter Zacuto optical designed lens, anti-fog coated protective covers, and the mounting system designed specifically for the FS7 Z-Finder. The diopter allows you to dial in the focus to match your eye. If you need extra focal points you can use the included Z-Finder Extender Frames. These are semi-permanent stackable frames that attach to the body of the Z-Finder and extend the Z-Finder glass further away from the LCD screen for people who are farsighted. The diopter range with the included lens and extender frames is -4.0 to 0.0.

If you need more adjustment than the Extender Frames provide, you can add drop in diopters for further diopter adjustment. The interchangeable anti-fog diopters, -1, +1, +2, +3 and +4, correct the focus to your vision for perfect clarity. An aluminum sun mask is built into the Z-Finder to protect your LCD screen from sunlight. Drop in diopters install underneath this aluminum sun mask.

WARNING: The Z-finder is a magnifier and as such will magnify the sun which can damage the LCD screen if the sun is allowed to shine directly through the Z-finder lens. Use the enclosed lens cap to block light from entering your Z-finder when not in use.

Includes

• Z-Finder loupe with 2x magnification and diopter wheel
• Two (2) Extender Frames
• F7/FX9 flip up mounting frame
• Lens Cap, Sun Mask, and protective boot
• Z-Finder Dust Cover
• One installed and one additional Anti-Fog disc. This also acts as a lens protector and is expendable
