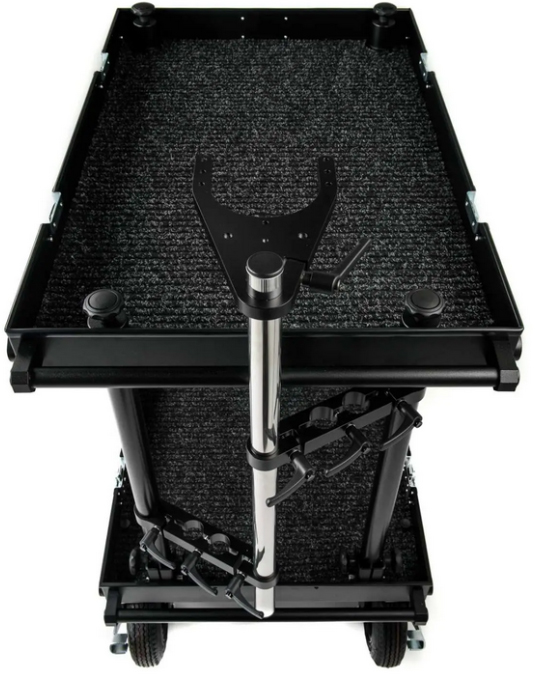

AdiCam Camera Mount System

adicam STANDARD The adicam STANDARD is a professional camera cart is dedicated to the whole industry of movie. The double-deck model Standard enable to carry an equipment with weight up till 200 kg. Aluminium has been used in the cart production what provided its light weight (38kg) as well as durability and stability. Each deck has been covered with facing to prevent the equipment displacing. The whole cart as well as its particular parts can be easy folded as a little dimension suitcase to be carry in most cars’ spaces and still save more place. Assembly and disassembly take only 1 minute and are incredibly effortless. The Standard model has four hand-folded wheels (fi225 mm) which are equipped with sealed bearings.  Swivel wheels have got a brake, and the two additional wheels make it easier to transport the cart when it is folded. A wide list of available accessories allows free configuration. Dimensions Folded cart dimensions: height 175mm / width 630mm / lenght 1045mmAssembled cart dimensions: height 1025mm / width 630mm / lenght1045mmWeight: 38kg without accessoriesCapacity: max 200kg Accessories Ball mount 75mm/100mm/150mmSteadicam mount systemMonitor mount systemCable accessory crossbar

adicam MAXThe biggest and the strongest film cart in our offer, created to meet even greater demands. Reinforced model MAX can lift up to 250 kilograms of heavy equipment on your set! Built-in mounting together with the crossbar between the legs provides even greater stability and the ability to mount a 35mm tube / tripod without removing the top cover.Fully customizable with all our accessoriesFour hand-folded pneumatic wheels (9″- fi225 mm) which are equipped with sealed bearing and standard foot brake systemThe two additional wheels make it easier to transport the cart when it is foldedEach deck has been covered with facing to prevent the equipment displacingAssembly and disassembly takes only 2 minutes, no tools are needed and the entire cart as well as its individual parts can be folded into an easy to transport case

adicam STANDARD+ The edge of the upper platform of the film cart can be folded down. Opening is extremely fast, all you have to do is just unlock two additional locks, which are located on the side of the shelf. The solution guarantees extension of the working area and even greater comfort of working with a computer or keyboard. 2 Threaded Plates integrated within topshelf. It consists of a mix of 1/4’’ and 3/8’’ threaded holes for photo/video equipment easy to be mount and dismount. The holes on the short sides of the cart have been designed to increase the configuration options and the use of dedicated accessories. Additional reinforcement of the top shelf and high-quality aluminum ensure lightness, durability and stability. Each deck has been covered with facing to prevent the equipment displacing. The Standard+ model has four hand-folded pneumatic wheels (9″- fi225 mm) which are equipped with sealed bearing and standard foot brake system. The two additional wheels make it easier to transport the cart when it is folded. Assembly and disassembly takes only 2 minutes, no tools are needed and the entire cart as well as its individual parts can be folded into an easy to transport case. Folded cart dimensions: height 175mm / width 630mm / lenght 1045mm Assembled cart dimensions: height 1025mm / width 630mm / lenght 1045mm Weight: 39,5kg without accessories Capacity: max 200kg Wheels 9″ Pneumatic wheels with two brakes. 10″ Pneumatic wheels with two brakes (additional option, the total weight of the cart will increase by 0.75 kg and the height by 30mm)

adicam MAX+ adicam MAX+ is a new version of the MAX model – the biggest and the strongest film cart in our offer, created to meet the demands of professional digital photography and video industry. The edge of the upper platform of the film cart can be folded down. Opening is extremely fast, all you have to do is just unlock two additional locks, which are located on the side of the shelf. The solution guarantees extension of the working area and even greater comfort of working with a computer or keyboard.2 Threaded Plates integrated within topshelf. It consists of a mix of 1/4’’ and 3/8’’ threaded holes for photo/video equipment easy to be mount and dismount. The holes on the short sides of the cart have been designed to increase the configuration options and the use of dedicated accessories. Additional reinforcement of the top shelf and high-quality aluminum ensure lightness, durability and stability. Each deck has been covered with facing to prevent the equipment displacing. The MAX+ model has four hand-folded pneumatic wheels (9″- fi225 mm) which are equipped with sealed bearing and standard foot brake system. The two additional wheels make it easier to transport the cart when it is folded. Assembly and disassembly takes only 2 minutes, no tools are needed and the entire cart as well as its individual parts can be folded into an easy to transport case. Reinforced model MAX+ can lift up to 250 kilograms of heavy equipment on your set. Folded cart dimensions: height 180mm / width 630mm / lenght 1260mm Assembled cart dimensions: height 1035mm / width 630mm / lenght 1260mm Weight: 47kg without accessories Capacity: max 250kg Wheels 9″ Pneumatic wheels with two brakes. 10″ Pneumatic wheels with two brakes (additional option, the total weight of the cart will increase by 0.75 kg and the height by 30mm)
