Astera HydraPanel
PLNÂ 1,866.46*
net: PLNÂ 1,517.45
Available, delivery time: 1-3 days
Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.
Product number:
SW27319
Manufacturer:
Astera
Manufacturer product number:
FP6
Delivery time:
1-3 days

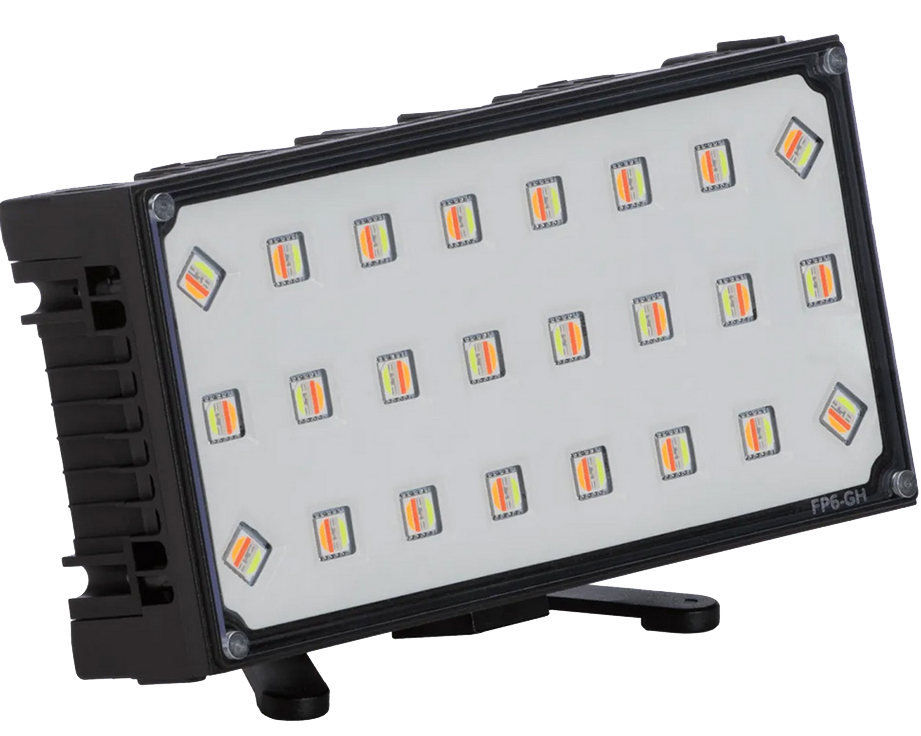

Astera HydraPanel
SKU: FP6

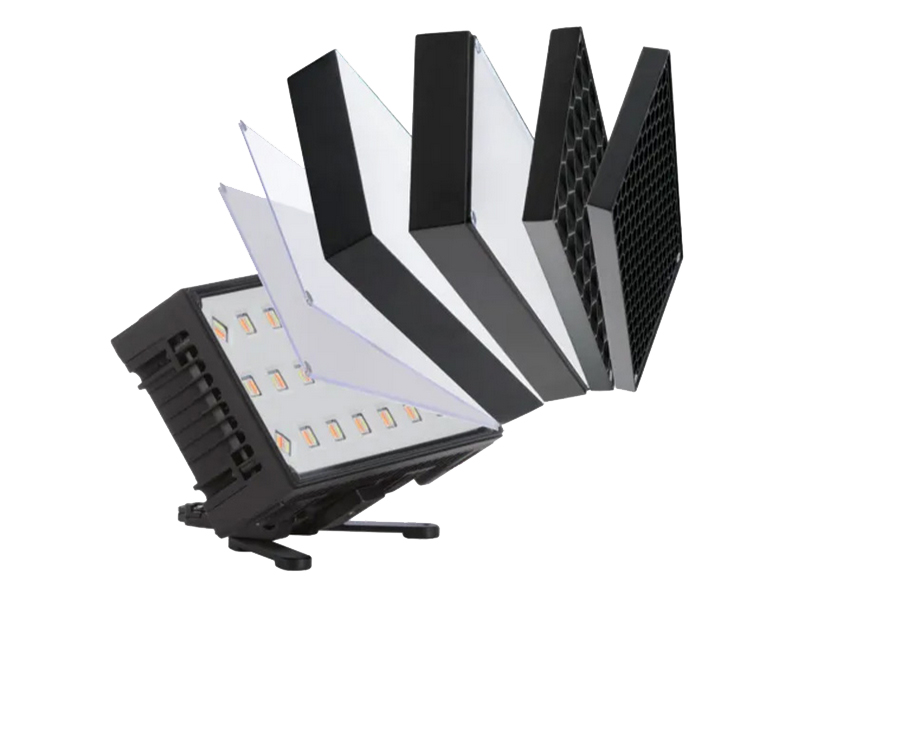

Beam shaping with six included light modifiers and a large range of
mounting options make HydraPanel more flexible than any other product in
its class. The full-spectrum Titan LED Engine generates an impressive
1300 Lumen output while running on battery power.
Technical data
- LED Engine: Titan LED Engine
- Colors: RGBMintAmber
- Total LED Power: 25 W
- LED Power Draw: 17 W
- Luminous Flux 3200K: 1 102 Lumens
- Luminous Flux 4000K: 1 287 Lumens
- Luminous Flux 5500K: 1 298 Lumens
- Light Output 3200 K @ 1m: 443 Lux
- Light Output 4000 K @ 1m: 512 Lux
- Light Output 5500 K @ 1m: 516 Lux
- CRI (Ra)/ TLCI 3200- 6500 K: ≥96
- Beam Angle: 110° x 100°
- Field Angle: 150° x 145°
- Strobe: 0 – 25 Hertz
- Pixels: 6
- Battery Runtime: up to 20 hours
- Battery Runtime Max Brightness: 1 h 45 m
- Battery Lifetime: 70 % after 300 cycles
- Charging Time (nominal): 3 hours
- DC Input: 24 VDC – 0.85 A
- DC Connector: 5.5 mm x 2.1 mm
- Wired DMX: Yes (via FP1-PWB/ FP3-DTL/ PWB-2-86)
- CRMX Receiver: Built-in
- BluetoothBridge BTB: Built-in
- Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
- Wireless Range: CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
- Infrared Control: Yes
- ControlSync: Yes
- TouchSlider: Yes
- Housing Material: Polymer & Metal
- IP Rating unwired: IP65 (only with PB15-PLG)
- IP Rating wired with PWB-CAB-5/-10/-15/-0.2: IP65
- Ambient Operating Temperature: 0 – 40 °C
- Weight: 604 g
- Dimensions L x W x D: 166 mm x 85 mm x 43.5 mm
- Mounting Options: 2 x ColdShoe 3 x M5 thread 1 x SafetyWire Eyelet
