Astera HydraPanel Set

Astera HydraPanel Set

SKU: FP6-SET-1

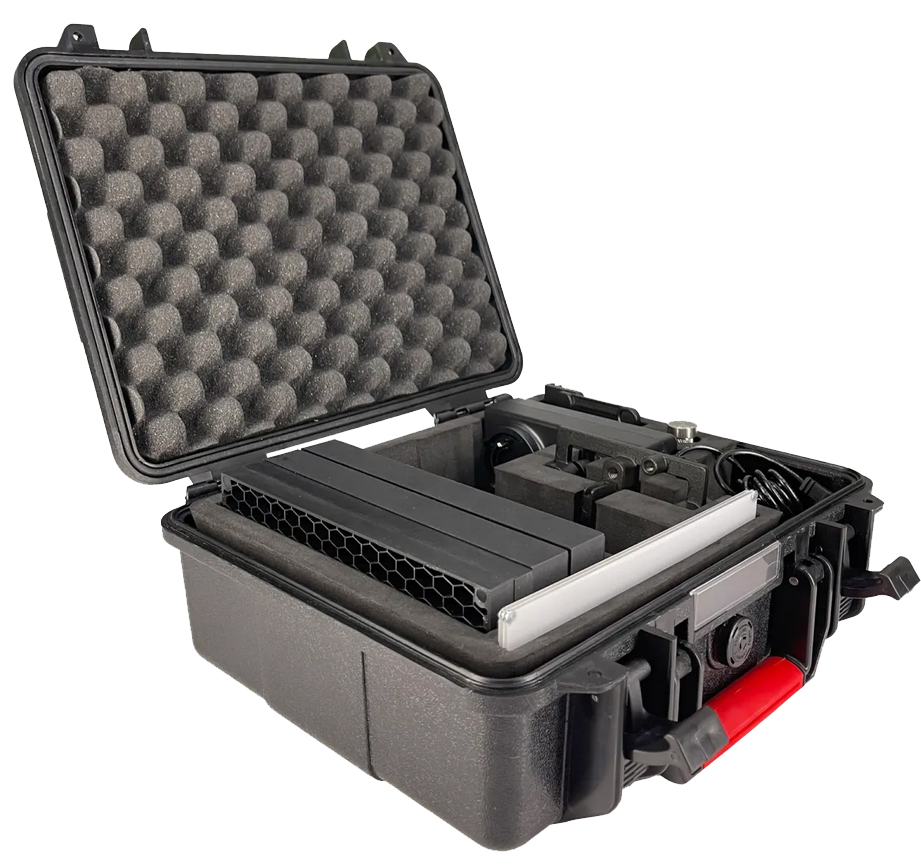

Kit of 1 HydraPanel with beam modifiers and mounting accessories stored in a durable protective plastic case. Beam shaping with six included light modifiers and a large range of mounting options make HydraPanel more flexible than any other product in its class. The full-spectrum Titan LED Engine generates an impressive 1300 Lumen output while running on battery power.

Technical data

  • LED Engine: Titan LED Engine
  • Colors: RGBMintAmber
  • Total LED Power: 25 W
  • LED Power Draw: 17 W
  • Luminous Flux 3200K: 1 102 Lumens
  • Luminous Flux 4000K: 1 287 Lumens
  • Luminous Flux 5500K: 1 298 Lumens
  • Light Output 3200 K @ 1m: 443 Lux
  • Light Output 4000 K @ 1m: 512 Lux
  • Light Output 5500 K @ 1m: 516 Lux
  • CRI (Ra)/ TLCI 3200- 6500 K: ≥96
  • Beam Angle: 110° x 100°
  • Field Angle: 150° x 145°
  • Strobe: 0 – 25 Hertz
  • Pixels: 6
  • Battery Runtime: up to 20 hours
  • Battery Runtime Max Brightness: 1 h 45 m
  • Battery Lifetime: 70 % after 300 cycles
  • Charging Time (nominal): 3 hours
  • DC Input: 24 VDC – 0.85 A
  • DC Connector: 5.5 mm x 2.1 mm
  • Wired DMX: Yes (via FP1-PWB/ FP3-DTL/ PWB-2-86)
  • CRMX Receiver: Built-in
  • BluetoothBridge BTB: Built-in
  • Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
  • Wireless Range: CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
  • Infrared Control: Yes
  • ControlSync: Yes
  • TouchSlider: Yes
  • Housing Material: Polymer & Metal
  • IP Rating unwired: IP65 (only with PB15-PLG)
  • IP Rating wired with PWB-CAB-5/-10/-15/-0.2: IP65
  • Ambient Operating Temperature: 0 – 40 °C
  • Weight: 604 g
  • Dimensions L x W x D: 166 mm x 85 mm x 43.5 mm
  • Mounting Options: 2 x ColdShoe 3 x M5 thread 1 x SafetyWire Eyelet

In the box

  • 1x HydraPanel (FP6)
  • 1x FlexBase (FP6-FB)
  • 1x ConnectorPlate (FP6-CP)
  • 1x BabyPin 1/4“ (AX-BBP-1/4)
  • 1x SoftFrame 100 (FP6-SF-100)
  • 1x Intensifier 80 (FP6-INT-80)
  • 1x EggCrate 40 (FP6-EGC-40)
  • 1x EggCrate 60 (FP6-EGC-60)
  • 1x DiffusorSheet 100 (FP6-DS-100)
  • 1x GelHolder (FP6-GH)
  • 1x Power Supply for Helios/ Titan Tube (FP1-CHR)
  • 1x Single unit case for HydraPanel (FP6-CSE-1)
  • 2x Waterproof cover for charging port (PB15-PLG)
