ATOMOS Nexus
PLNÂ 317.46*
Available, delivery time: 1 day
ATOMOS Nexus
SKU: ATOMNEXU01

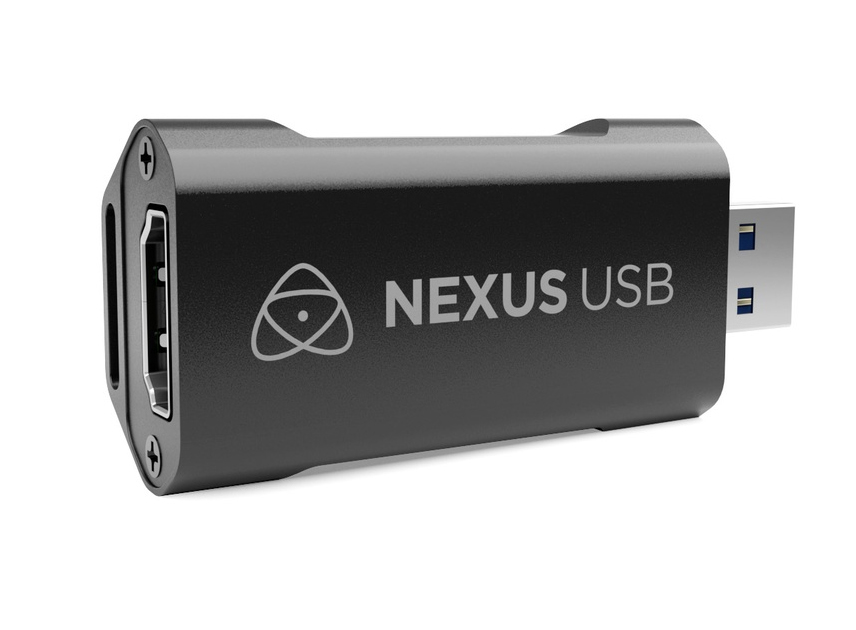

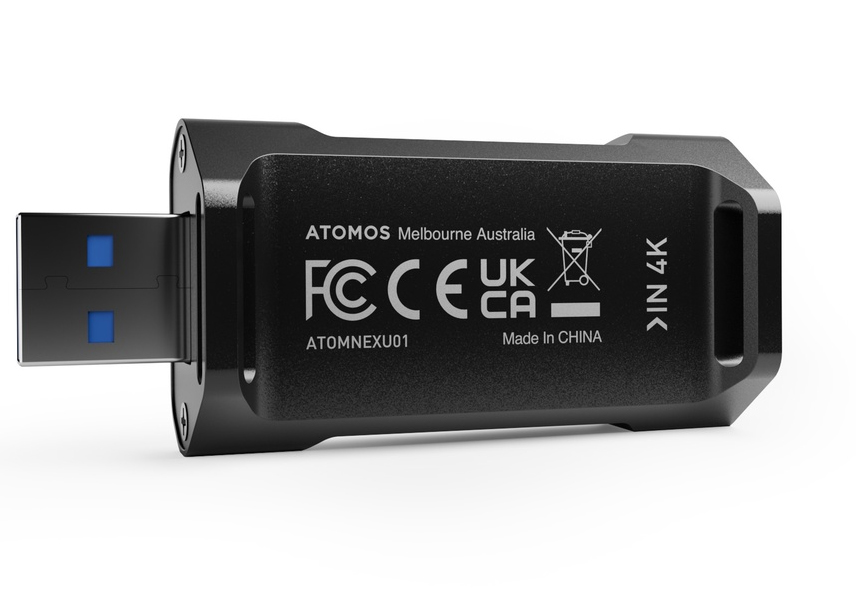

Atomos NEXUS is a HDMI to USB converter that allows you to take 4K up to 30p, HD up to 60p or 720p up to 60p sources and output the same resolution and frame rate up to a maximum of 1080p60 ready for connection to the USB input on a computer and out to your choice of streaming platform.
Simple operation
Simply connect the HDMI output of your favorite camera, console or Atomos monitor recorder and you’re ready to go LIVE! The Connect 4K automatically converts your input to the widely supported USB Video Class (UVC) standard.
Universally supported
Supported by any CDN/Social platform that supports UVC: Skype, MS Teams, Zoom, Twitch, Youtube & many more.
Requirements
To successfully connect, your computer requires application including OBS, StreamLabs OBS, Wirecast or X-Split for enhanced streaming.
Technical data
HDMI Input: up to 4Kp30
USB output resolution: up to 1080p60
Color depth: Supports 8/10/12-bit deep color
HDMI Support: Certifier AWG26 HDMI cables up to 15m
Software support: Popular acquisition software on Windeos, Android & Mac OS
USB Support: Conforms to USB Video and UVC standard/ Conforms to USB Audio UAC standard (L-PCM format)
Power: no external power required
Maximum working current: 0.4 A/ 5V DC
Operatin temeperature range: -10C° - 55C°
Dimensions: 6,4 x 2,8 x 1,3cm
Weight: 0,021kg
In the box
1x Atomos NEXUS HDMI to USB Converter
1x USB to USB-C adapter cable
1x User manual
